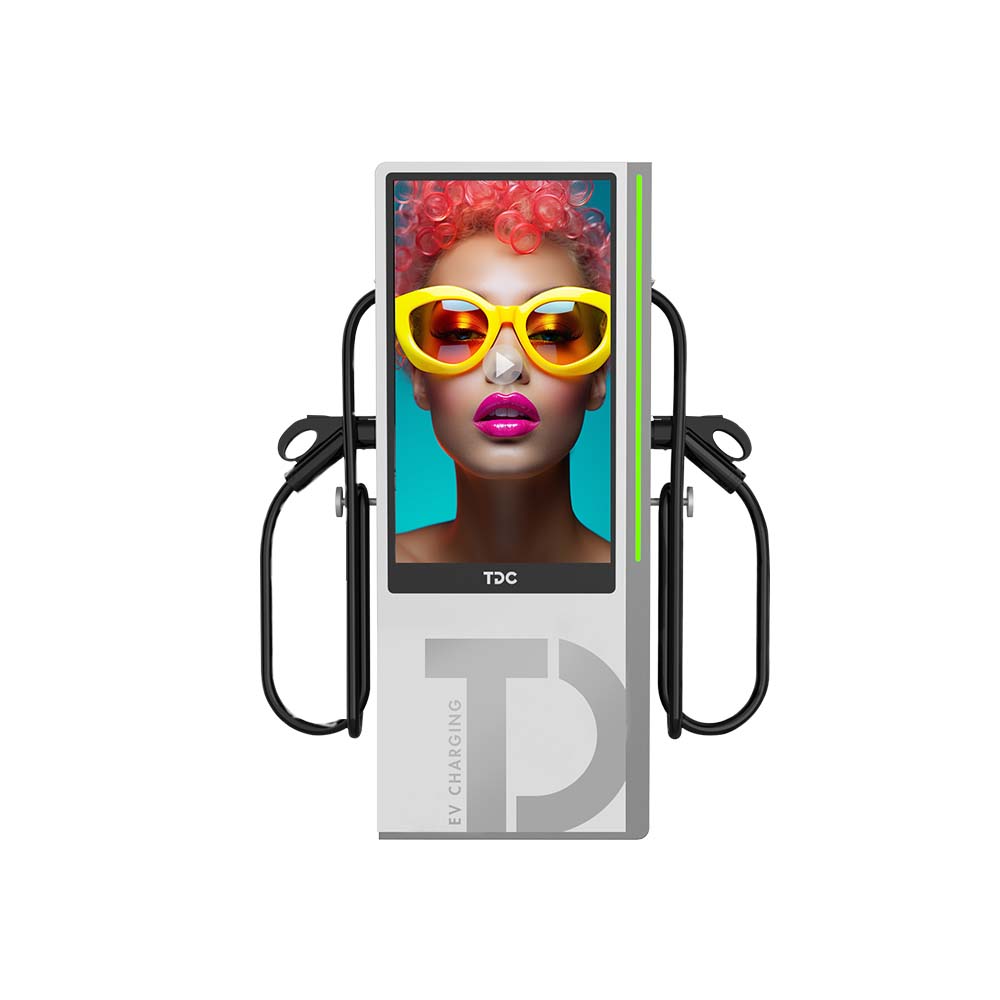

ZIP 60kW DC EV Charger with 43-inch Advertising Screen
ZIP 60kW DC EV Charger with 43-inch Advertising Screen
ZIP 60kW DC EV Charger with 43-inch Advertising Screen
    ecom-no-replace-SLJMUx8mHTrevews-1
    20 reviews

    ZIP 60kW DC EV Charger with 43-inch Advertising Screen

    ZIP DC EV Charger delivers 60kW high-efficiency fast charging in a compact, space-saving design. Ideal for urban and high-traffic locations, it’s engineered to provide reliable performance without compromising on footprint.

    ZIP DC EV Charger equipped with a 43-inch FHD advertising screen, opens up a new revenue stream for operators. While vehicles charge, the screen can display dynamic ads—turning wait time into business opportunities.

    Guaranteed safe checkout
    ecom-no-replace-aSLjKik1k3trust-dron

    • Fast-Delivery Guarantee

    • 1% Credit Reward

    • 14-Day Returns

    • Highly Recommended

    MEC 7-22kW AC EV ChargerMEC 7-22kW AC EV Charger

    MEC 7-22kW AC EV Charger

    Details
    FLY 7-22kW AC EV ChargerFLY 7-22kW AC EV Charger

    FLY 7-22kW AC EV Charger

    Details
    RAC 7-22kW AC EV ChargerRAC 7-22kW AC EV Charger

    RAC 7-22kW AC EV Charger

    Details

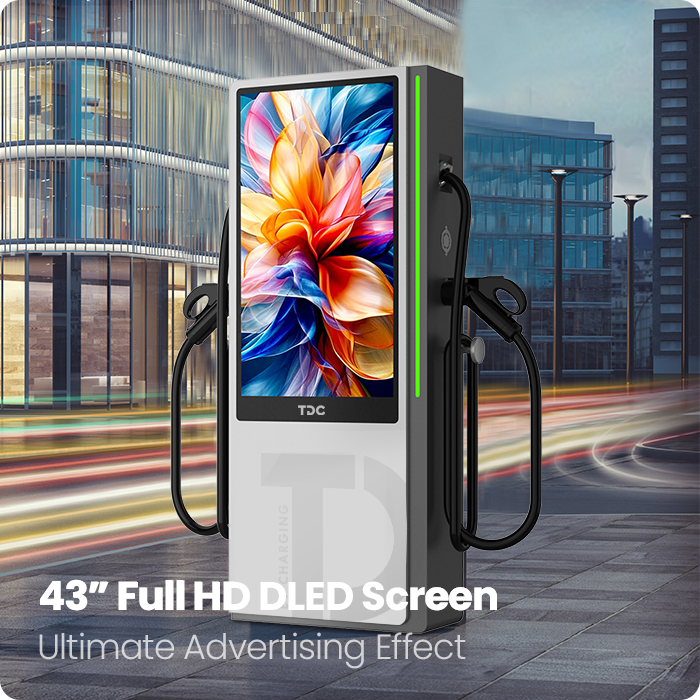

    43'' FHD Display
    The RWDA DC EV charger is equipped with a 43-inch Full HD advertising screen that displays visually stunning dynamic adverts while charging, turning waiting time into business opportunities.
    Upgrade-friendly Design
    RWDA is always ready for technological updates and has a multi-modular design that allows for the fastest and easiest way to provide subsequent upgrades to the equipment.
    Intelligent Management
    Equipped with intelligent monitoring, operation, and maintenance functions, real-time data tracking, and automatic diagnosis of the equipment, helping you to efficiently manage and maintain the equipment.

    Descriptions

    Specifications

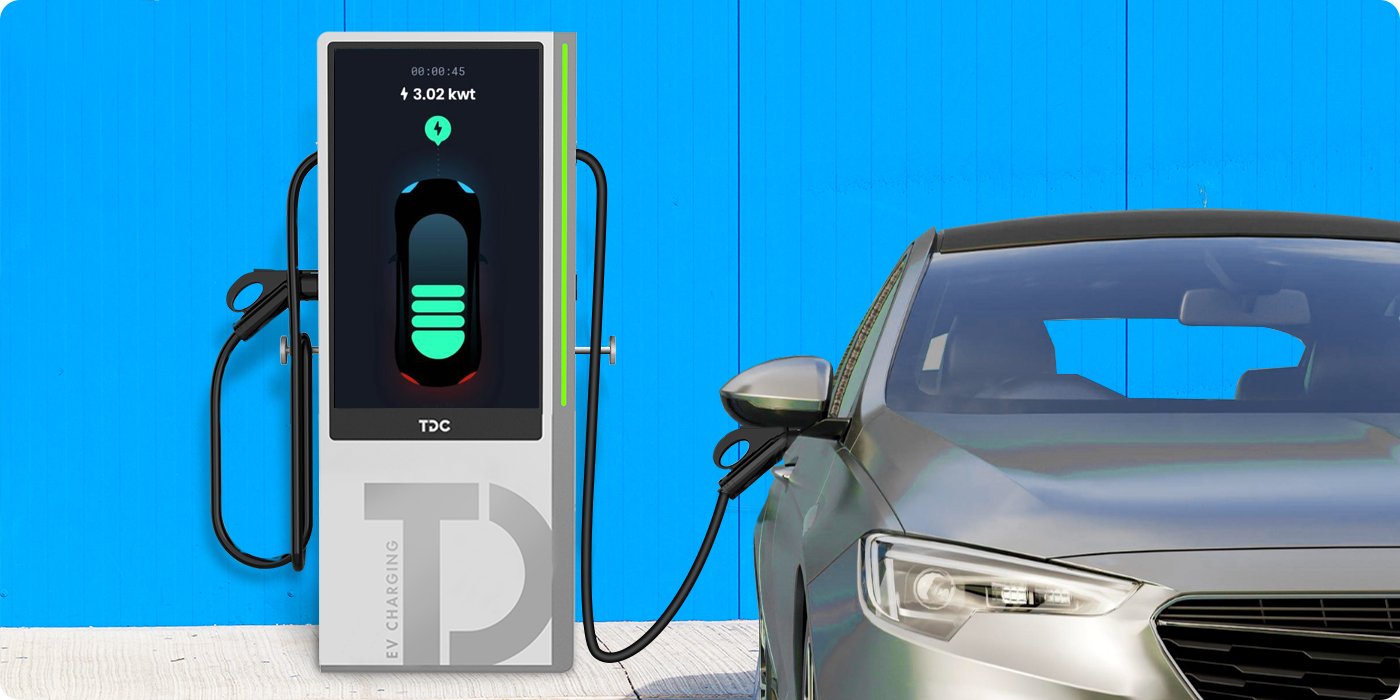

    Dynamic Efficient Output


    The ZIP provides up to 60 kW of power with a maximum current of 100A, creating more opportunities for shorter charging times and optimizing charging

    services through dynamic load distribution to enhance the efficiency of charging stations.

    Optimising Advertising Experience


    The ZIP is equipped with an integrated 43-inch media screen. Use the media screen to engage with customers by sharing customized content in static or video formats, enabling advertisers to achieve optimal results.

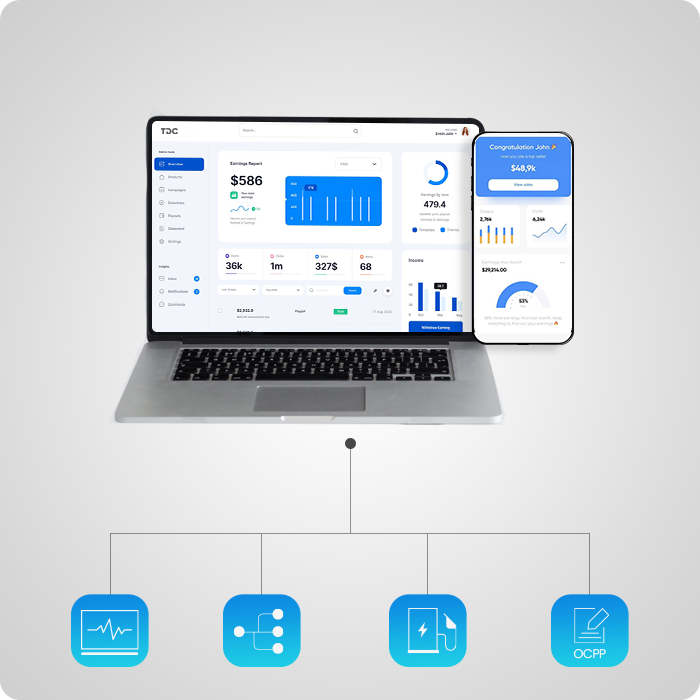

    Advanced Charging Station Operation Platform


    ZIP is perfectly adapted to RUERTU operation management platform that manages all aspects of charger operations. It allows for real-time monitoring, reporting, energy management, and problem detection, ensuring optimal performance and energy efficiency for operators.

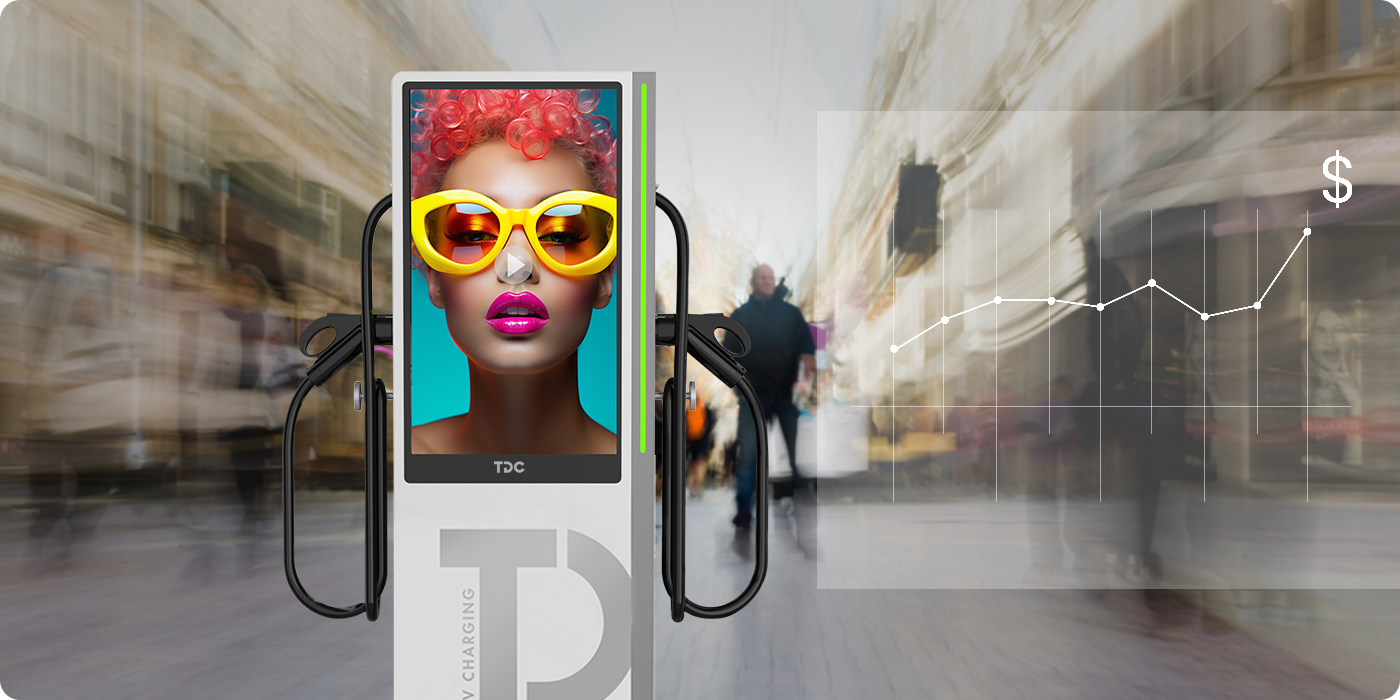

    Better Product Benefits


    The rare 43-inch advertising screen in DC charger can bring additional advertising services for ZIP revenue,

    make the ZIP is not just a Powerful DC charger but also external publicity, expanding the influence of media products.

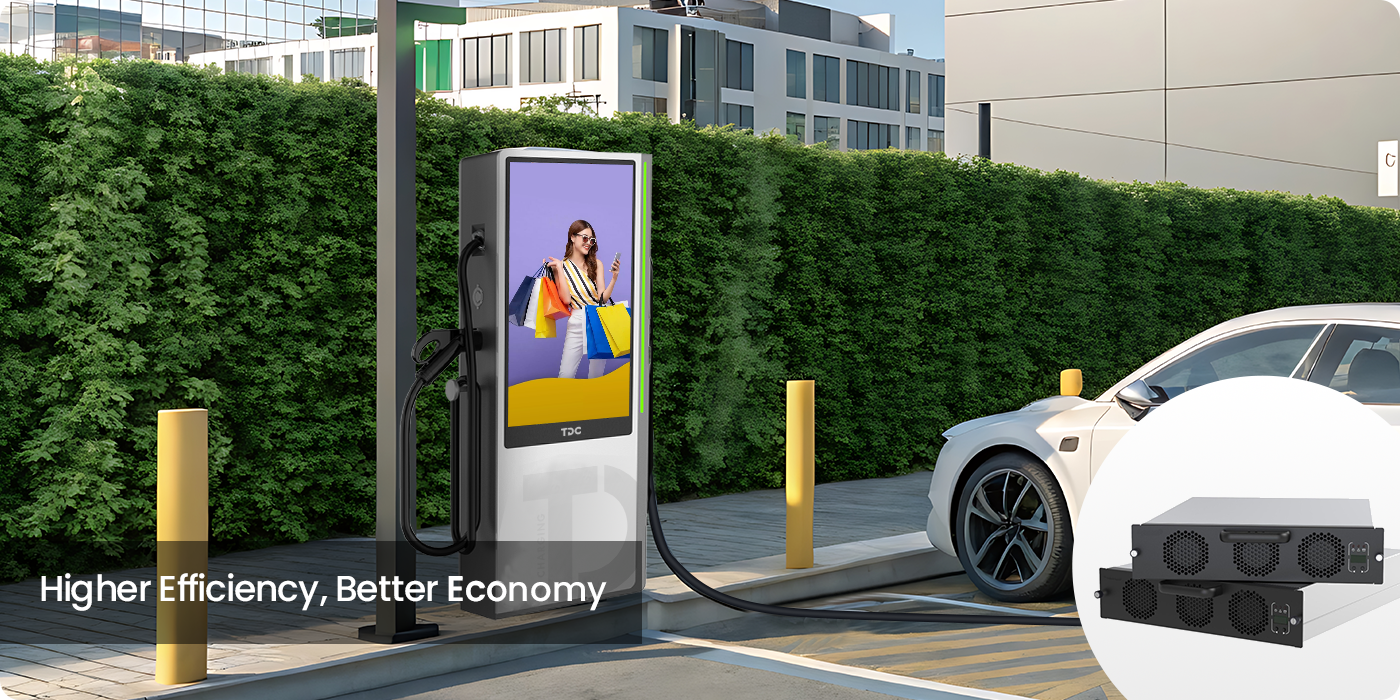

    Energy-economic Charging Solutions


    The ZIP provides a cost-effective and energy-efficient charging solution.

    Its scalable hardware and advanced technology help operators reduce grid expenses and extend equipment lifespan,

    resulting in significant savings and improved charging infrastructure.

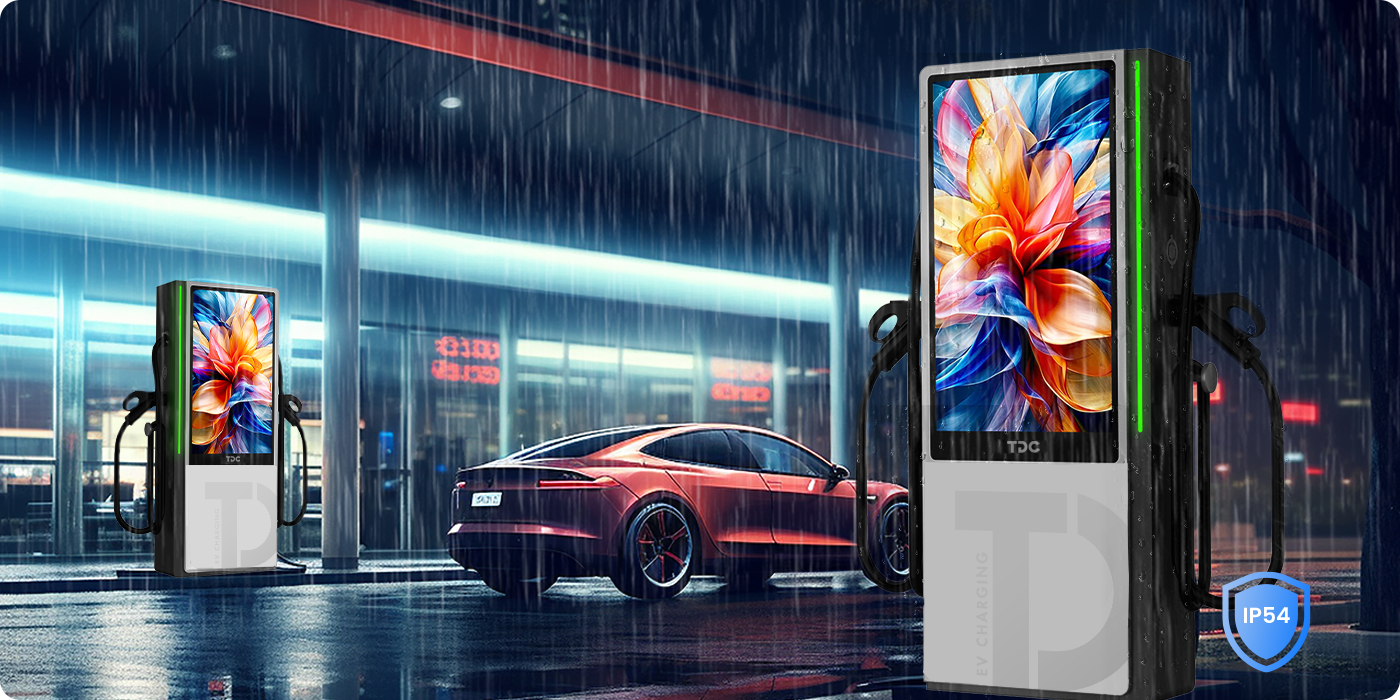

    Comfort and Safety Everywhere


    Multiple ultra-high safety protections, IP54 protection degree and conspicuous three-color breathing indicator,

    these consider designs allowing the ZIP Charger provide ultimate safety and protection in a comfortable use situation

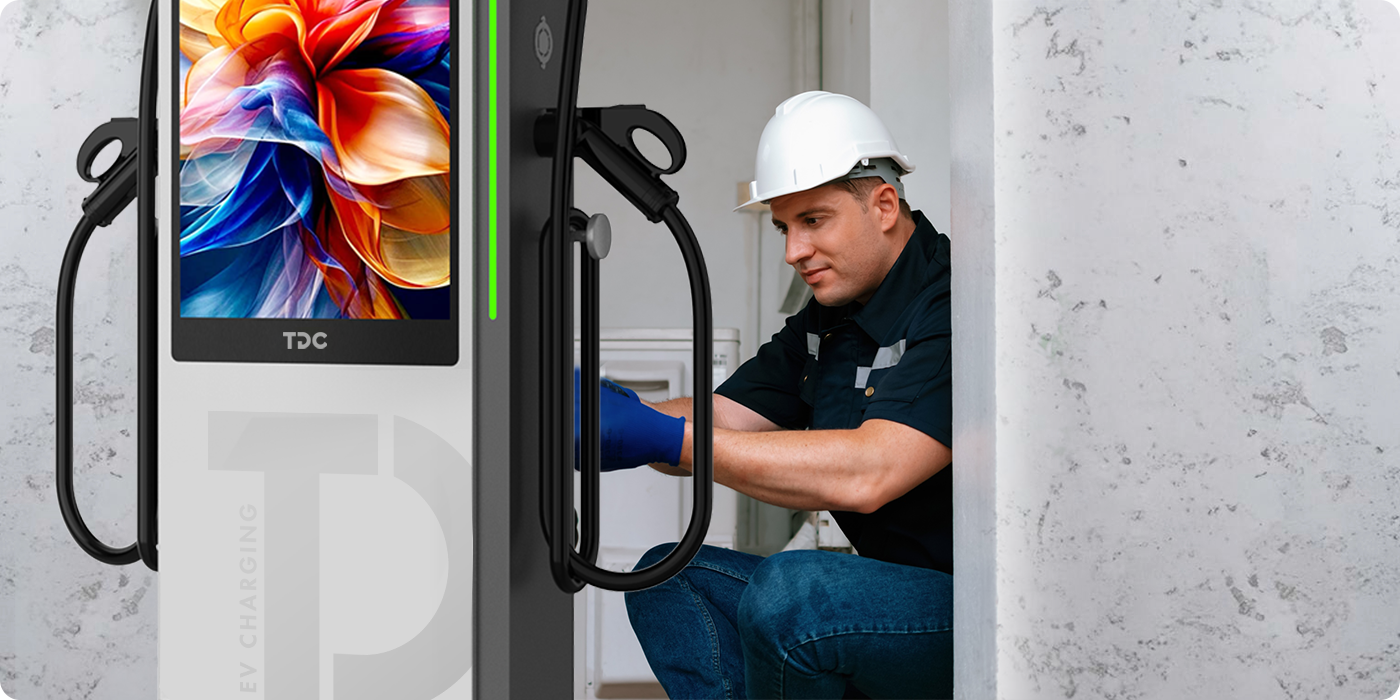

    Hassle-free Maintenance


    ZIP's power supply modules feature a user-friendly design that enables quick one-person upgrades.

    Meanwhile, our integrated software platform delivers real-time system monitoring and automated diagnostics,

    significantly reducing maintenance complexity through intelligent diagnostics solutions.

    Model ZIP60
    Electrical Features
    Rated Power 60kW
    Input Voltage EU: 400Vac ± 10%; 3P + N + PE
    US: 480Vac ± 10%; 3P + N + PE
    Input Frequency 50 ± 1Hz / 60 ± 1Hz
    Max. Input Current ≤ 98A
    Output Voltage 200 ~ 1000Vdc
    Max. Output Current 100A x 2
    Power Factor ≥ 0.98
    Efficiency ≥ 95%
    Mechanical & Structural Features
    Installation Method Floor Fixation
    Cable Length 5m
    Alignment Lower in and Lower out
    Charging Method APP Activated / Scan QR Code to Start / RFID Card
    Charge Mode Time Mode / Energy Mode / Amount Mode / Atuo-fill / Power Mode
    Connector Type CCS2 / CCS1
    Display Features
    Display Size 43-inch
    Display Area 940.896(H) x 529.254(V) mm
    Optimal Resolution 1920 x 1080
    Brightness 1500 cd / m²
    Refresh Rate 60 Hz
    Contrast Ratio 1200 : 1
    LED Type DLED
    Protection Features
    Protection Level EU: IP54 / US: Type 3R
    Protections Over Voltage Protection, Over Current Protection, Short Circuit Protection, Ground Fault Protection, Leakage Protection, Emergency Stop Protection, Over Temperature Protection
    Environmental Characteristics
    Operating Temperature -25℃ ~ +50℃
    Storage Temperature -40℃ ~ +70℃
    Relative Humidity 5% ~ 95% RH (Without Condensation)
    Operating Altitude < 2000m
    Communication Protocols
    Communication Interface Ethernet / Wi-Fi / 4G
    Charger ↔ Platform OCPP-1.6J
    Certifications & Standards
    Certification CE / UL
    Safety Standards EU: IEC 61851-1; EN/IEC 61851-1; IEC 62955; IEC 61851-21-2; EN/IEC 62196-2:2016
    US: UL2594; UL991; UL2251; UL1998
    Standard Warranty 2 Years
    Dimensions and Weight
    Product Dimensions 1011 x 751 x 1757 mm
    Product Weight 225 kg
    bg-loobook

    Power for Home

    Reliable AC charging solution delivering efficient, safe, and cost-effective power for residential and commercial EV applications.
    bg-loobook

    Power for Commercial

    High-power DC fast charging solution offering rapid, stable, and intelligent energy delivery for commercial and public EV charging scenarios.
    ZIP 60kW DC EV Charger with 43-inch Advertising Screen

    High Efficiency

    Designed to deliver high efficiency. This ensures maximum energy conversion and optimal performance, helping you make the most of your renewable energy sources.

    Durable and Reliable

    Built to withstand harsh environments, offering robust protection against elements like dust, water, and physical impacts. This durability ensures long-lasting reliability, making them suitable for both indoor and outdoor use.

    User-Friendly Design

    Easy installation and intuitive operation.
    Designed with the user in mind, ensuring a hassle-free experience and efficient energy management.

    Service and Support

    • Consultation

      Consultation

    • Customization

      Customization

    • Installation

      Installation

    • Maintenance

      Maintenance

    Let’s Answer Your Questions

    Q1: Which vehicle models are compatible?

    Our chargers support multiple charging connector standards including NACS, CCS, and CHAdeMO, making them suitable for most mainstream vehicle models. For specific compatibility details, please consult your vehicle manual.

    Q2: What is an AC charger best used for?

    AC chargers work at 7–22kW and take 3–10 hours for a full charge. They're ideal for overnight depot charging and cost-effective to install and operate. Best for home, parking lots, and apartments where charging during off-hours fits your schedule.

    Q3: What electrical setup do I need for my AC charger?

    Just standard 230V/400V three-phase power. AC chargers need minimal electrical upgrades—no complex infrastructure required.

    Q4: When should I choose a DC fast charger?

    All-in-one DC chargers combine power conversion and charging port in a single unit. Choose this for space-limited sites needing fast 10–60 minute charging. Simple installation, compact footprint.

    Q5: What is a Smart Mobile charger with ESS?

    It's a multifunctional charger combining DC charger + battery storage. Charge vehicles independently, operate anywhere—remote sites, temporary locations, events. No permanent grid connection needed.
    Q6:What should I do if my charger malfunctions?
    Most issues can be resolved remotely through our customer service hotline. If on-site service is required, we will dispatch certified technicians to resolve the problem after confirming the after-sales service schedule.
    Q7: Can TDC chargers integrate with my fleet management system?
    Yes. All chargers connect to TDC Hub, which tracks sessions, costs, vehicle health, and charging schedules. We support integration with your existing fleet management software.
    Q8: What are the benefits of using the TDC ev charger?
    Comprehensive product line: AC, DC, EV Charger with Advertising Screen, Split-type DC, and Smart Mobile Charger with ESS—matching every need
    Smart software: TDC Charge and TDC Hub not only provide ev owners with a robust charging network and premium charging services, but also offer operators real-time monitoring, predictive maintenance, and system optimization.
    24/7 support: Remote diagnostics, 4-hour on-site response, 98%+ uptime guarantee
    Future-ready: Support for latest charging standards (CCS, MCS) and V2G technology
