    RAC 7-22kW AC EV Charger

    $459.00

    • This 240V, 9.6kW device features advanced charging technology in a compact design, supporting up to 40A and an optional upgrade.
    • With a SAE J1772 connector, is compatible with all North American EVs and hybrids and features a NEMA 14-50P plug for versatility, making installation easy in both residential and commercial spaces.
    • With IP54 and IP65 protection, is built for extreme environments, functioning in temperatures from -35°C to 50°C.
    • Users can link with the device through the applet to easily realize autonomous charging, charging reservation, remote monitoring, etc., making charging more convenient.

    Guaranteed safe checkout
    ecom-no-replace-aSLjKik1k3trust-dron

    • Fast-Delivery Guarantee

    • 1% Credit Reward

    • 14-Day Returns

    • Highly Recommended

    MEC 7-22kW AC EV ChargerMEC 7-22kW AC EV Charger

    MEC 7-22kW AC EV Charger

    $399.00
    Details
    FLY 7-22kW AC EV ChargerFLY 7-22kW AC EV Charger

    FLY 7-22kW AC EV Charger

    $299.00
    Details
    RAC 7-22kW AC EV ChargerRAC 7-22kW AC EV Charger

    RAC 7-22kW AC EV Charger

    $459.00
    Details

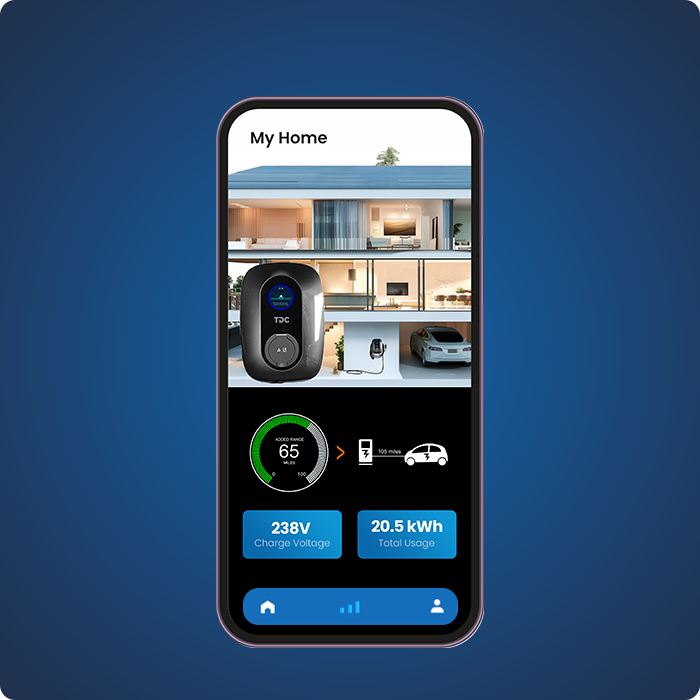

    APP Intelligent Management
    The TDC APP monitors and manages the operation and charging information of the charging station, allowing both consumers and operators to easily keep track of the real-time status of the charging station.
    Type4 High Protection
    Type4 protection degree with 7 advanced protection mechanisms guarantees reliable performance in any situation, Engineered to thrive in temperatures from -35°C to +50°C (-31°F to +122°F).
    Compact but Powerful
    240V, 9.6kW, cutting-edge charging tech in a tiny package. Up to 40A charging current, can be tailored to higher-spec versions. RAC packs a punch way beyond your expectations.

    Descriptions

    Specifications

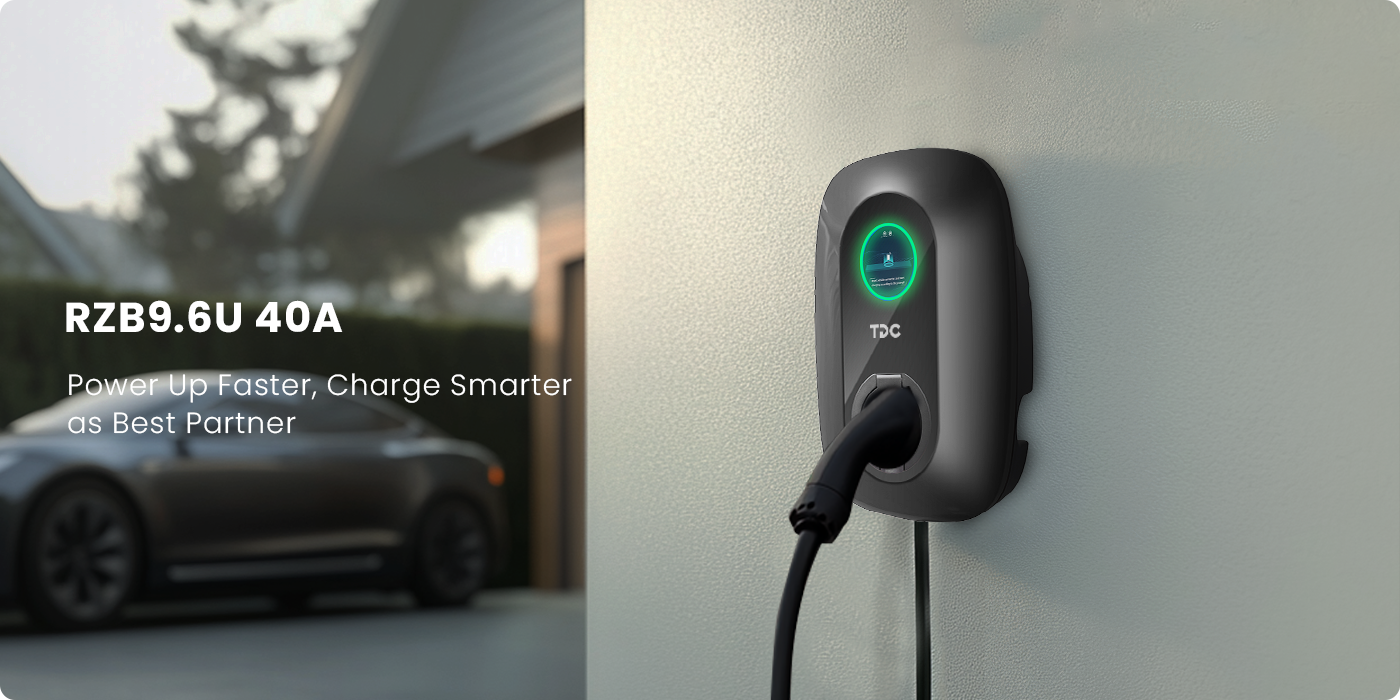

    Compact Design, Superb Efficiency


    240V, 9.6kW, advanced charging technology in an incredibly small size. Up to 40A charging current, can be customised to higher specification versions.

    RAC has a powerful effect far beyond your imagination, is the practical charger of choice!

    Reliable and Powerful Platform


    The TDC application offers more efficient processing speeds and richer management capabilities for dynamic power sharing, monitoring available devices in the building and adjusting power between all devices.

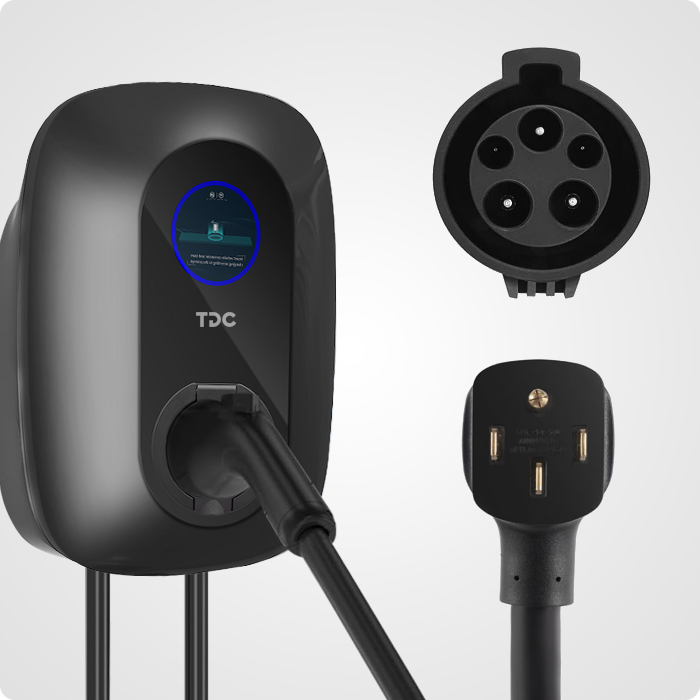

    Plug-and-Play Convenience


    SAE J1772 connector supports all North American EVs and plug-in hybrids, feature a NEMA 14-50P plug for versatility and increased flexibility to meet a wide range of electrical needs. Easily installed in residential garages or commercial spaces.

    More Flexible & Compatible


    The 0.82m input line brings more flexible installation space, higher current safety, and greater adaptability to different grid standards.

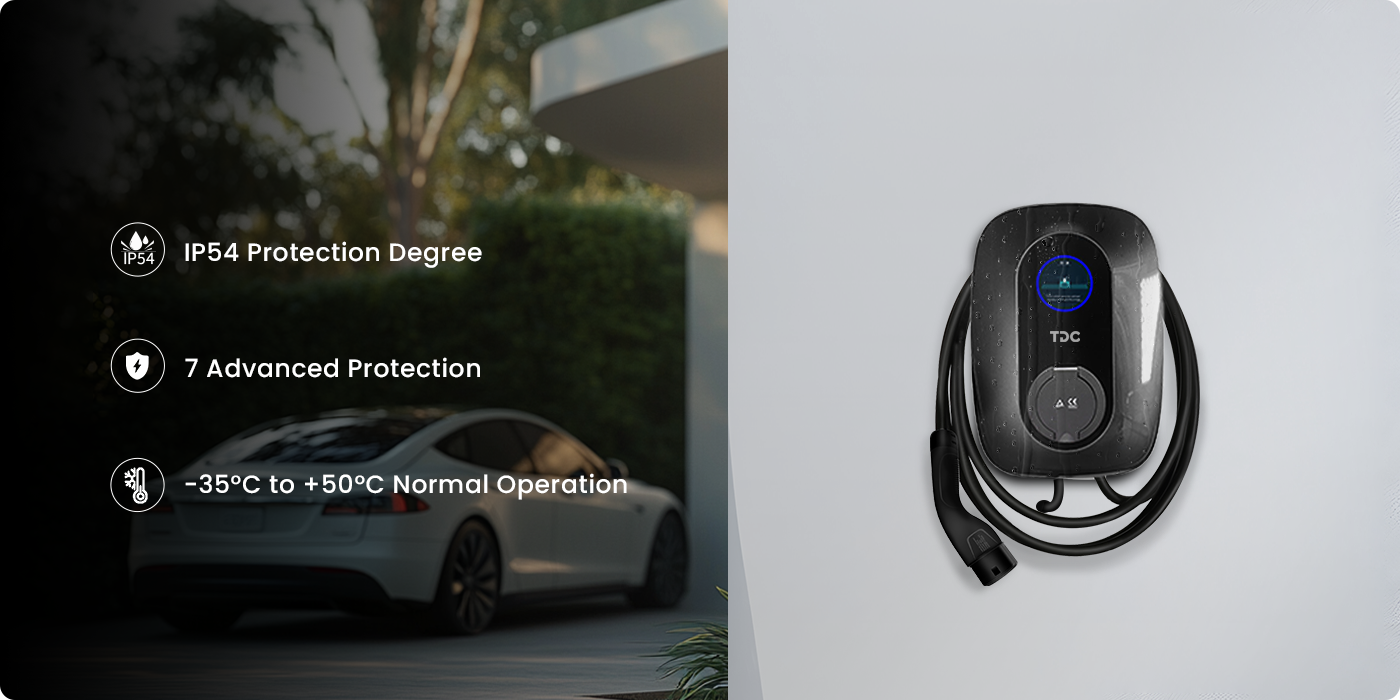

    Built to Last


    Type4 protection degree with 7 advanced protection mechanisms guarantees reliable performance in any situation,

    engineered to thrive in temperatures from -35°C to +50°C (-31°F to +122°F)

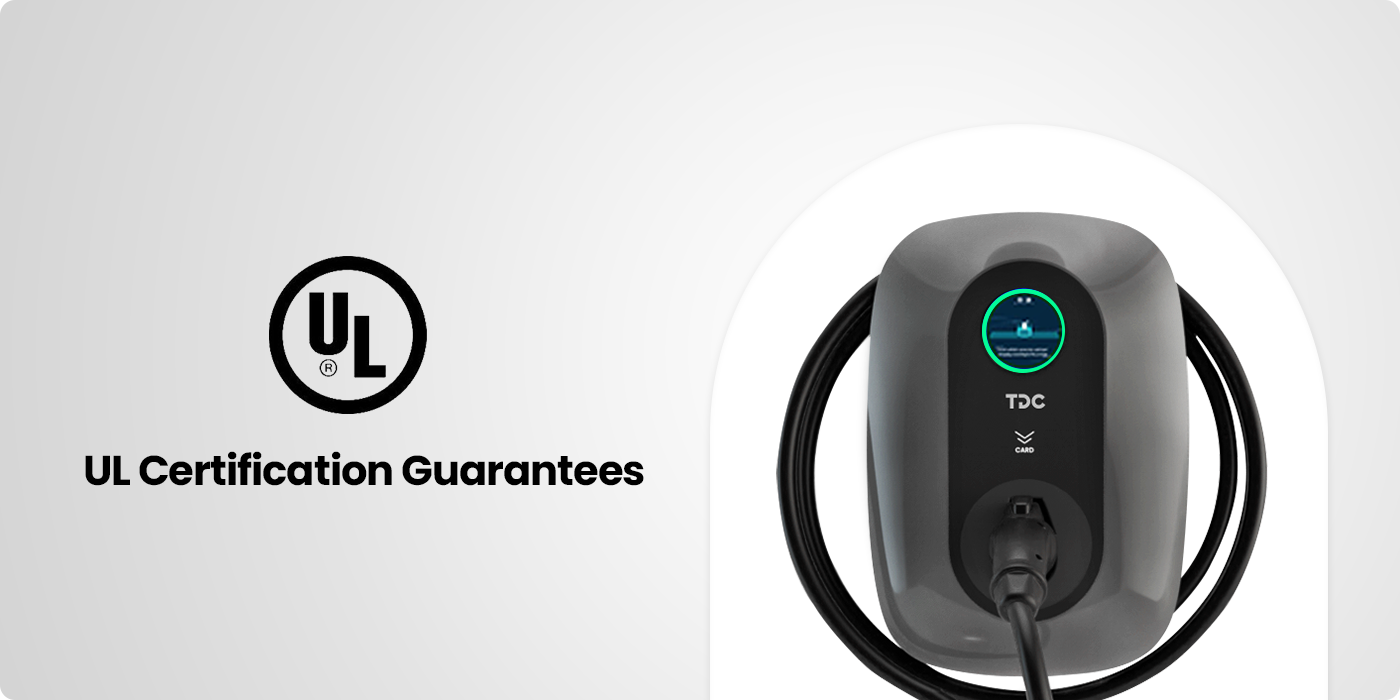

    UL Certification Guarantees


    RAC has passed the UL certification test with safety standard including UL2231-1/-2 / UL2594 / UL991 / UL2251 / UL1998, which means that as a consumer,

    you can purchase with confidence knowing that your product is guaranteed to work as intended without posing any health risks or fire hazards.

    First Class After-sales Service


    With a 2-year warranty and 24/7 professional customer service, you'll always have first-class customer support to ensure that your products are always in top operating condition.

    Qualified engineers providing global online support and on-site technical service

    Model RAC
    Electrical Features
    EU Standard
    Model Number RAC7 RAC11 RAC22
    Rated Power 7kW 11kW 22kW
    Input Voltage 230Vac ± 10%; L + N + PE 400Vac ± 10%; 3P + N + PE
    Input Frequency 50 ± 1Hz
    Max. Input Current 32A 16A 32A
    Output Voltage 230Vac ± 10%; L + N + PE 400Vac ± 10%; 3P + N + PE
    Max. Output Current 32A 16A 32A
    US Standard
    Model Number RAC7 RAC9 RAC11
    Rated Power 7.4kW 9.6kW 11.5kW
    Input Voltage 240Vac ± 10%; L + N + PE
    Input Frequency 60 ± 1Hz
    Max. Input Current 32A 40A 48A
    Output Voltage 240Vac ± 10%; L + N + PE
    Max. Output Current 32A 40A 48A
    Technical Features
    Power Factor ≥ 0.98
    Efficiency ≥ 95%
    Mechanical & Structural Features
    HMI 3-inch Screen
    Indicator Light 3 Colors LED
    Cable Length 5m
    Alignment Lower in and Lower out
    Charging Method Plug and Charge / APP Activated Charging / RFID Card
    Connector Type Type 2 (Mennekes) / SAE J1772

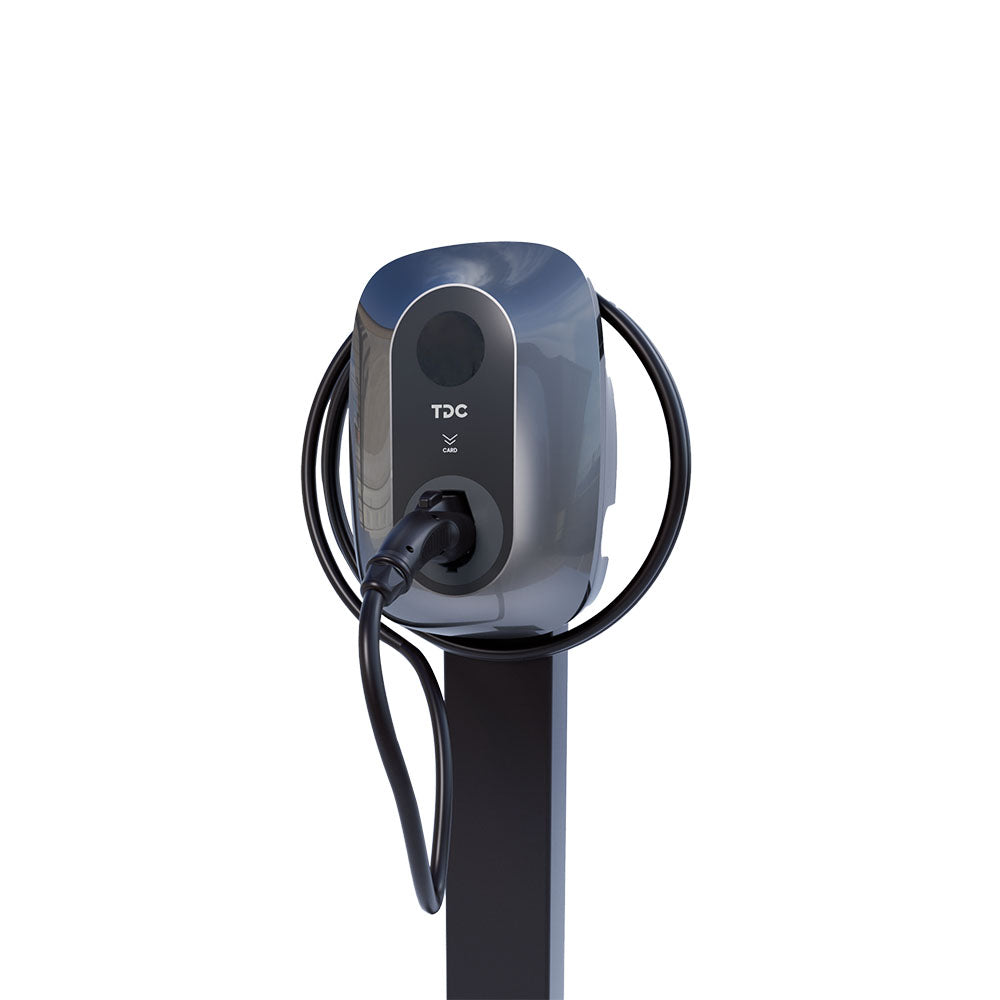

    Installation Method Wall-mounted / Column Fixation
    MTBF 100,000H
    Aging The product should be aged at 50°C ± 5°C and under full load.
    Protection Features
    Protection Level EU: IP54 (Vehicle Connector Mated with Holder), IP65 (Vehicle Connector Mated with Cap)
    US: Type 3R
    Protections Over Voltage Protection, Over Current Protection, Short Circuit Protection, Ground Fault Protection, Leakage Protection, Emergency Stop Protection, Over Temperature Protection
    Environmental Characteristics
    Operating Temperature -30℃ ~ +50℃
    Storage Temperature -35℃ ~ +80℃
    Relative Humidity 5% ~ 95% RH (Without Condensation)
    Operating Altitude < 2000m
    Communication Protocols
    Communication Interface Wi-Fi / Bluetooth (Optional)
    Charger ↔ Platform OCPP-1.6J
    Certifications & Standards
    Certification CE / ETL
    Safety Standards EU: IEC 61851-1; EN/IEC 61851-1; IEC 62955; IEC 61851-21-2
    US: UL2594; UL991; UL2251; UL1998; UL2231-1/-2
    Standard Warranty 2 Years
    Dimensions and Weight
    Product Dimensions 367.92 x 256.42 x 126.31 mm
    Product Weight < 5.09 kg
