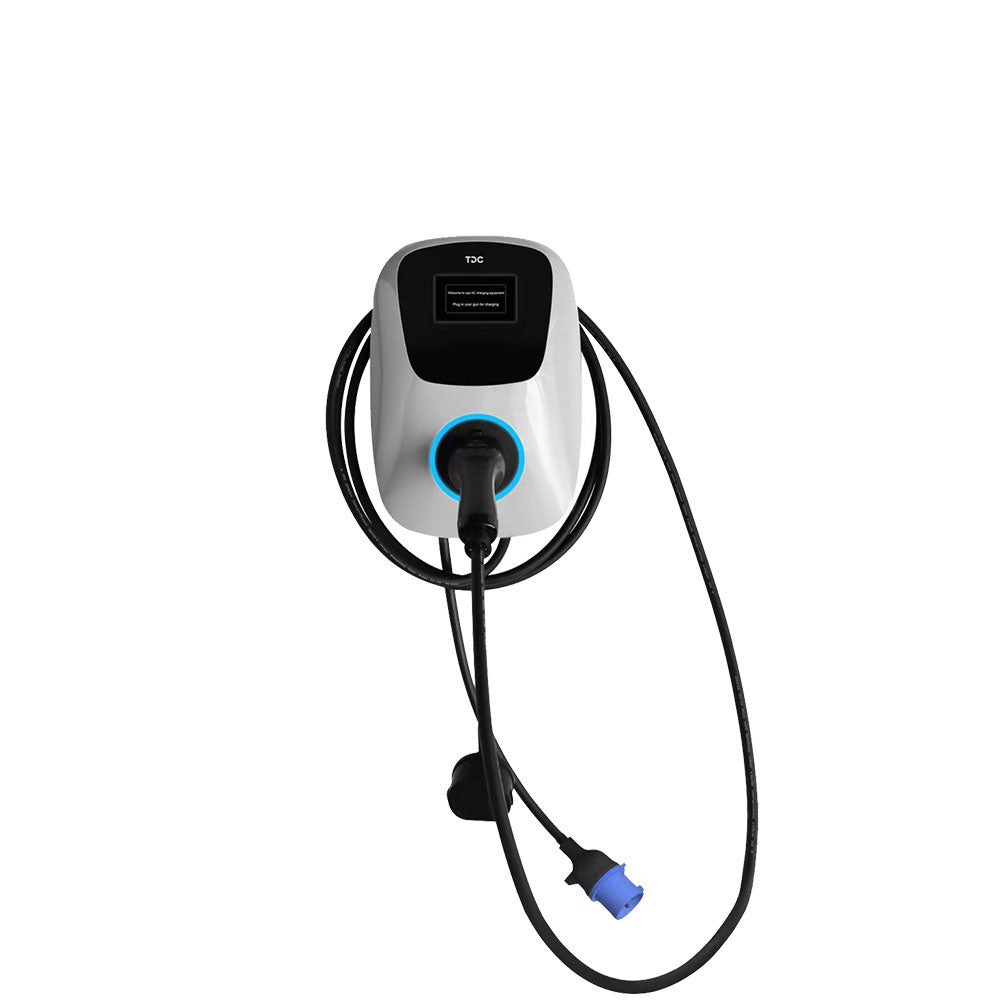

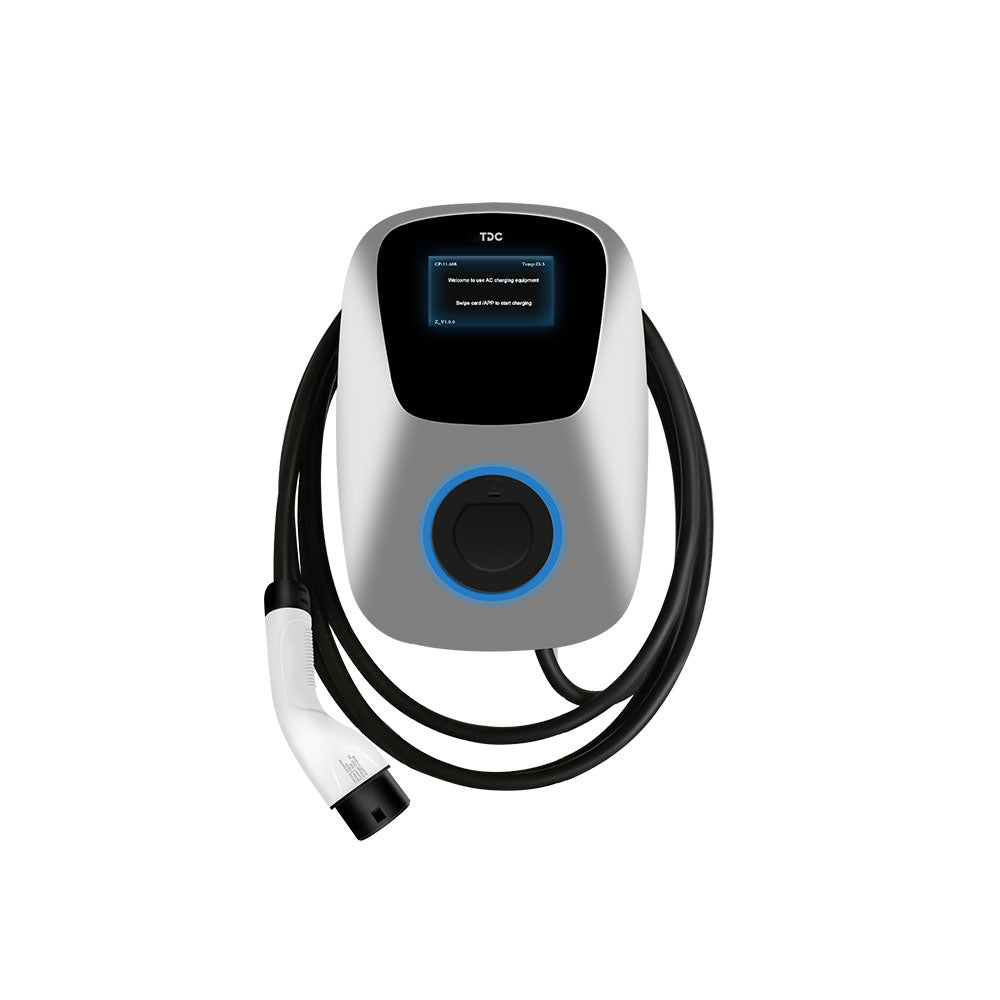

FLY 7-22kW AC EV Charger

$299.00

Rated Power

7kW
11kW
22kW

Rated Power

• With 7kW of power, IP65 and IP54 protection degree ensures your EV is road-ready with efficient energy delivery, whatever the environment.
• Equipped with Type 2 Mennekes connector and OCPP-1.6J communication protocol, making it compatible with most new energy vehicles and power grid specifications in Europe.
• Passed CE standard tests and obtained CE certification, indicating its quality and safety recognized by the European Union, making it a reliable choice for consumers.
• With the TDC APP, you can monitor your charger’s status in real-time and track electricity price fluctuations, maximizing your economic benefits.

Guaranteed safe checkout

Fast-Delivery Guarantee
1% Credit Reward
14-Day Returns

Highly Recommended

MEC 7-22kW AC EV Charger

$399.00

Details

FLY 7-22kW AC EV Charger

$299.00

Details

RAC 7-22kW AC EV Charger

$459.00

Details

Safe, Reliable, and Smart Charging

Equipped with a sleek 4.3-inch LCD display, robust safety mechanisms, and advanced OCPP communication,

this charger ensures a superior user experience whether at home or in commercial environments.

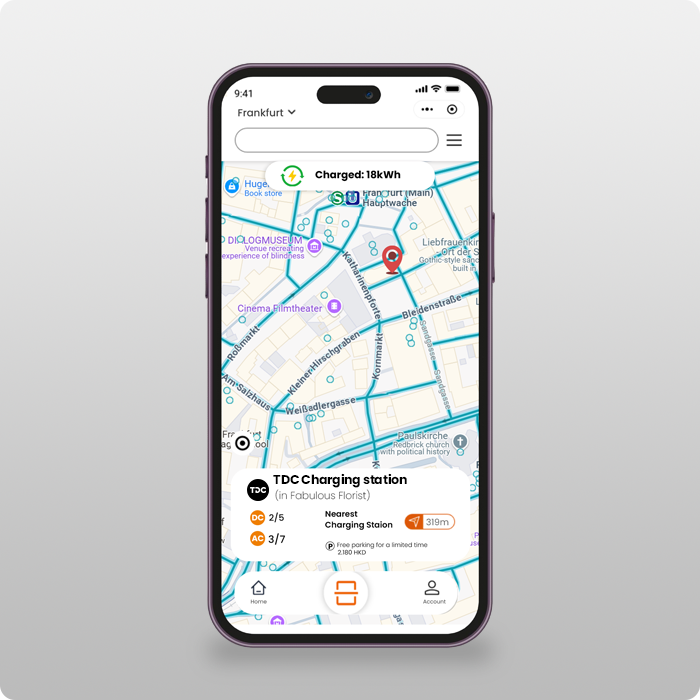

Intelligent Charging with App

FLY supports OCPP 1.6J for remote monitoring and management of charging networks. With WiFi and Bluetooth connections, you can control your charging sessions through the APP and find nearby chargers easily.

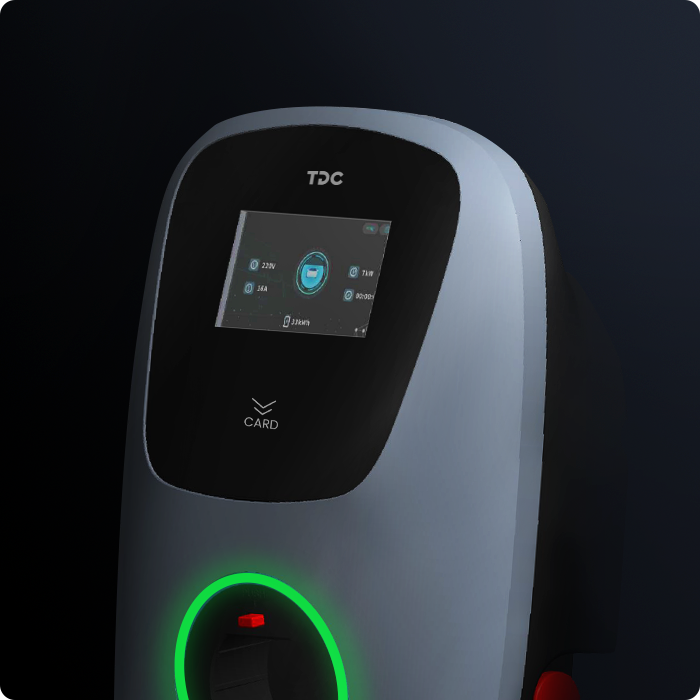

User-friendly Display

4.3-inch LCD screen and 3 color LED indicator lights offer real-time charging status, energy consumption, and easy-to-use controls.

Universal Compatibility

Type 2 Mennekes connector ensures seamless charging with a wide range of EV models and plug-in hybrids,

and the FLY is also available in other standard connector versions for customisation,

ensuring versatile and reliable charging for you.

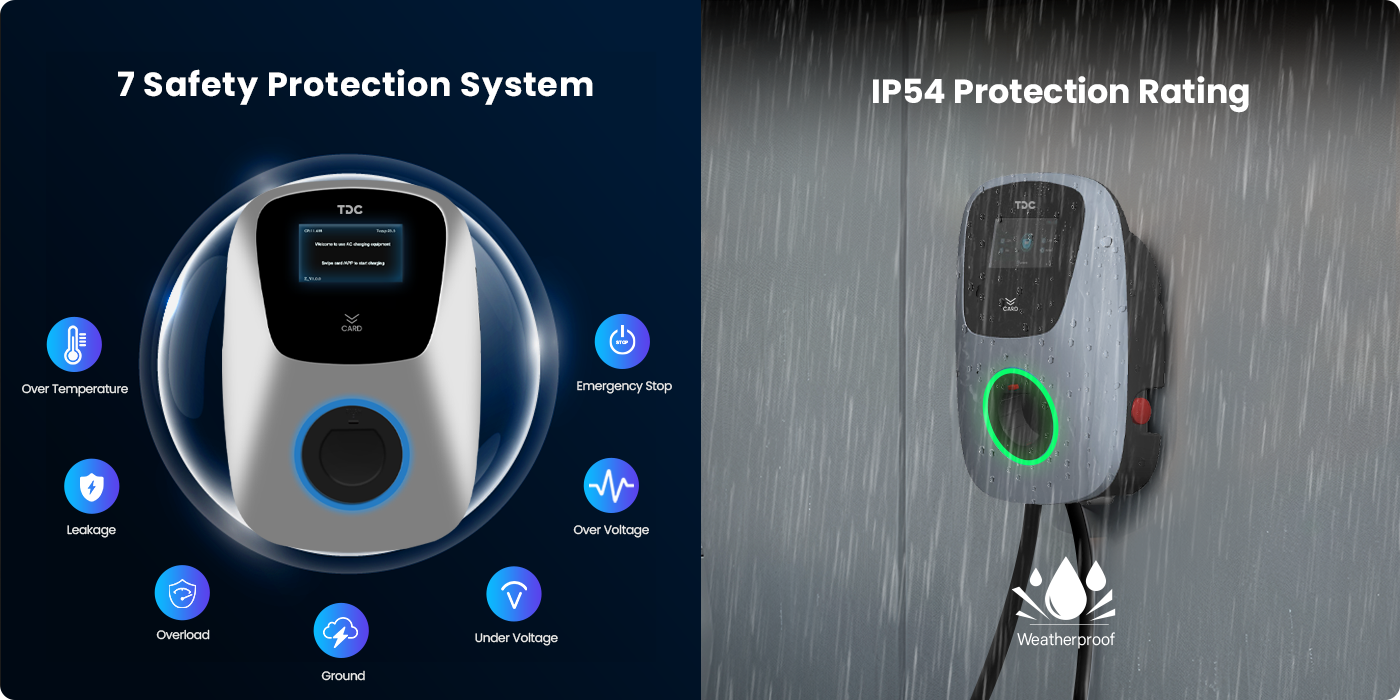

Durable & Weatherproof

IP54 protection degree and 7 advanced protection mechanisms including overcurrent, leakage,

and short-circuit protection guarantees reliable performance in various outdoor conditions.

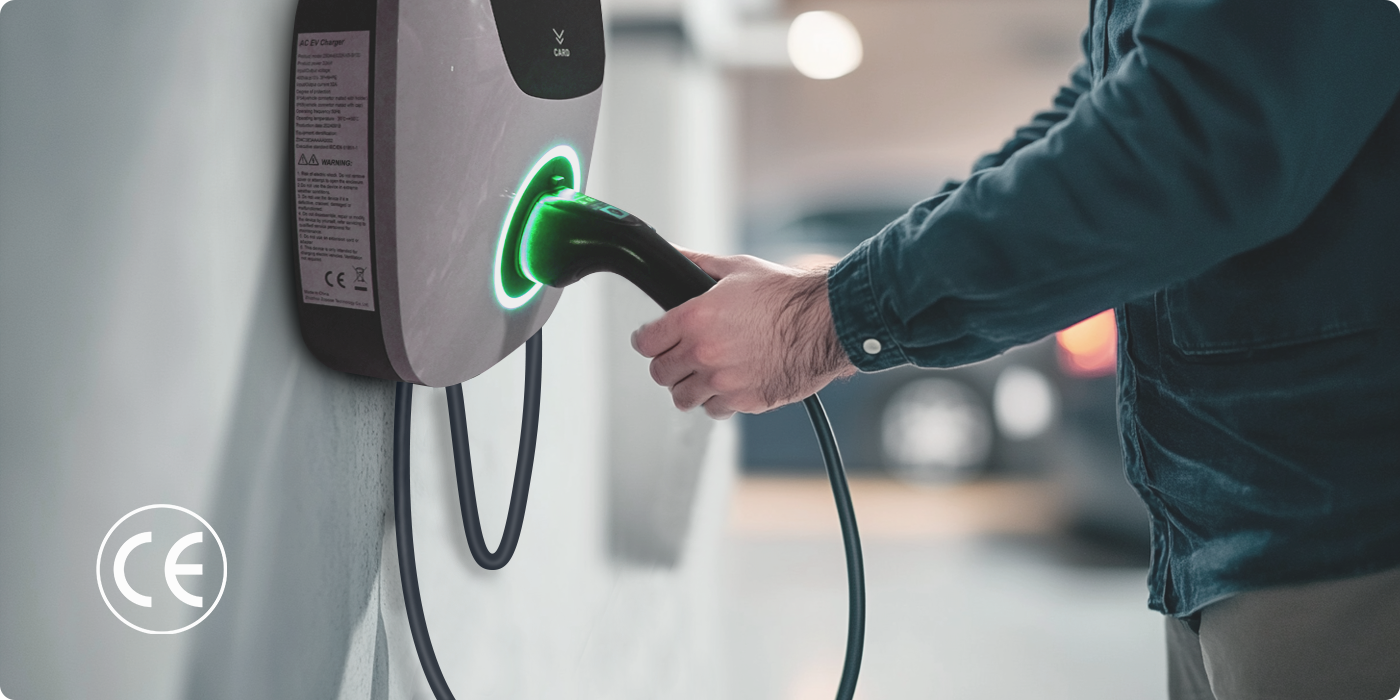

Certified Quality

FLY is a product with CE certification, which means that FLY meets the EU safety, health or

environmental requirements, making it a trustworthy product for consumers.

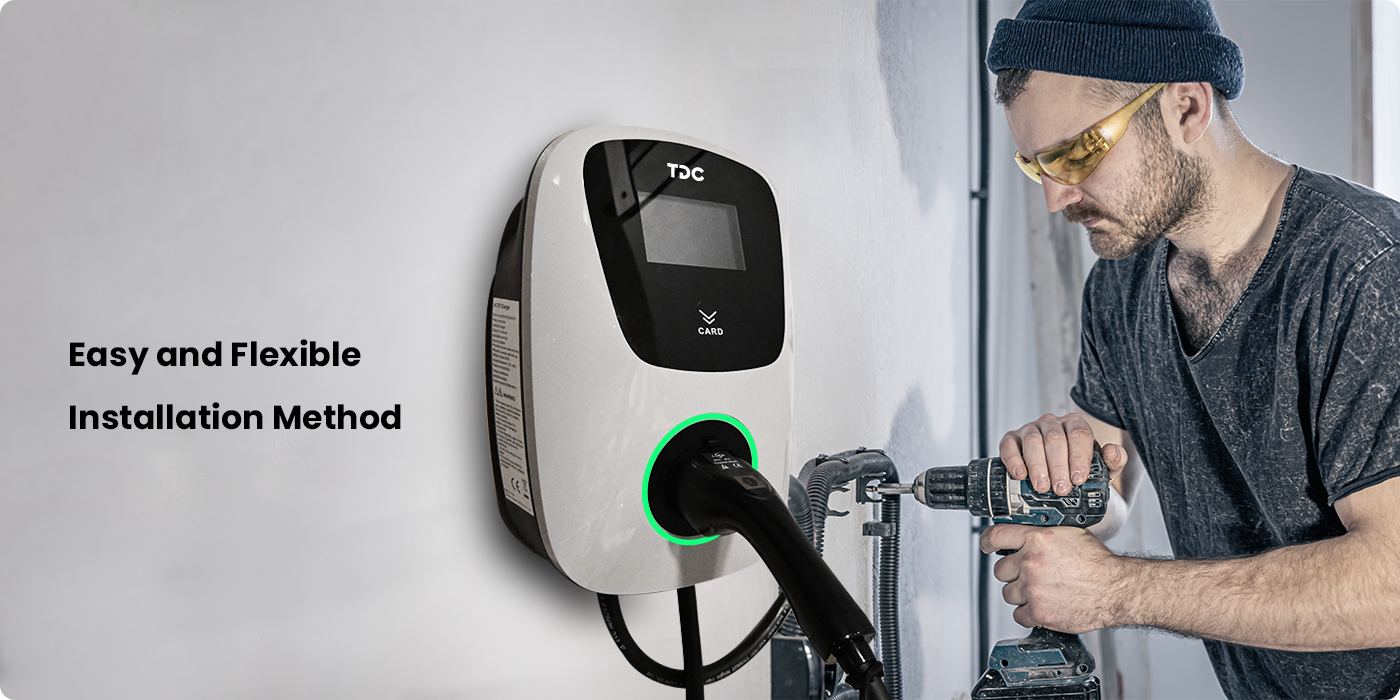

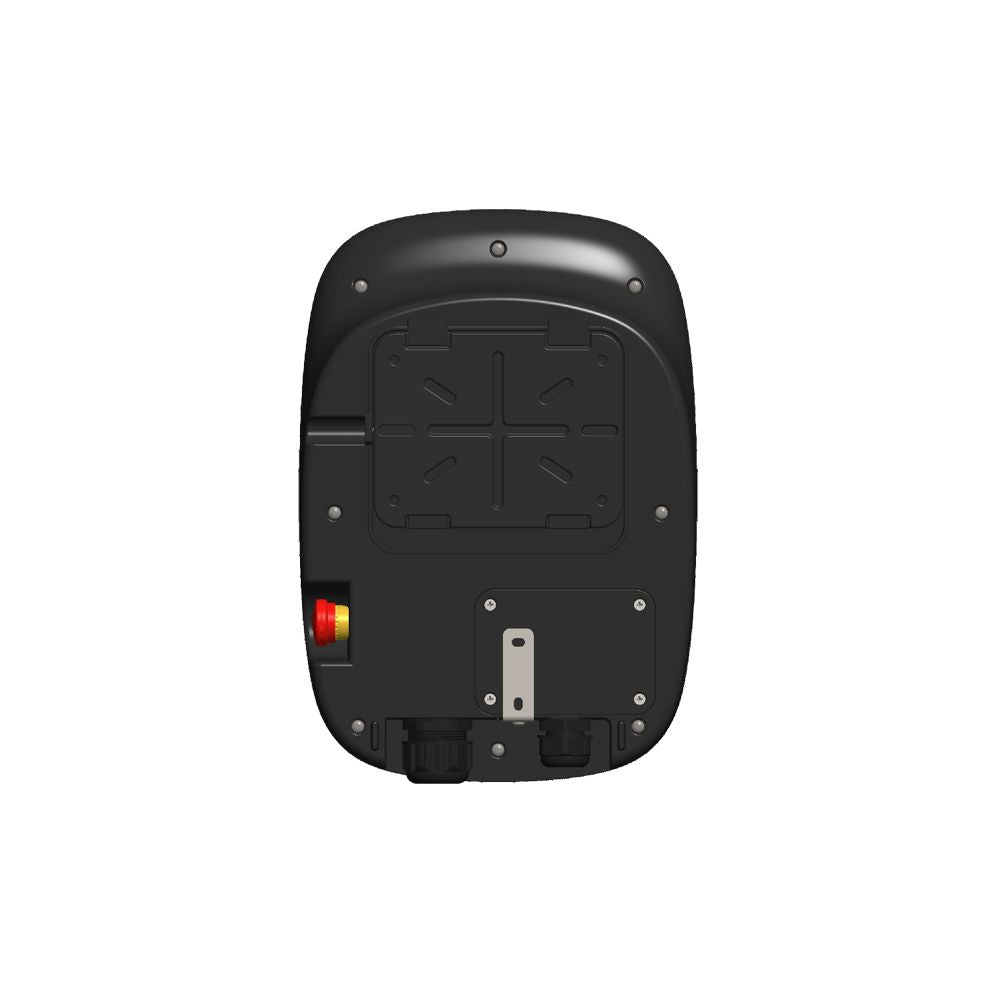

Easy and Flexible Installation Method

Wall-mounted and Standing installation methods are available for different installation needs and location planning.

You can also choose installation consulting services and let professionals provide you with the optimal arrangement location of the FLY charger.

Model	FLY
Electrical Features
EU Standard
Model Number	FLY7	FLY11	FLY22
Rated Power	7kW	11kW	22kW
Input Voltage	230Vac ± 10%; L + N + PE	400Vac ± 10%; 3P + N + PE
Input Frequency	50 ± 1Hz
Max. Input Current	32A	16A	32A
Output Voltage	230Vac ± 10%; L + N + PE	400Vac ± 10%; 3P + N + PE
Max. Output Current	32A	16A	32A
US Standard
Model Number	FLY7	FLY9	FLY11
Rated Power	7.4kW	9.6kW	11.5kW
Input Voltage	240Vac ± 10%; L + N + PE
Input Frequency	60 ± 1Hz
Max. Input Current	32A	40A	48A
Output Voltage	240Vac ± 10%; L + N + PE
Max. Output Current	32A	40A	48A
Technical Features
Power Factor	≥ 0.98
Efficiency	≥ 95%
Mechanical & Structural Features
HMI	4.3-inch Screen
Indicator Light	3 Colors LED
Cable Length	5m
Alignment	Lower in and Lower out
Charging Method	Plug and Charge / APP Activated Charging / RFID Card
Connector Type	Type 2 (Mennekes) / SAE J1772
Installation Method	Wall-mounted / Column Fixation
MTBF	100,000H
Aging	The product should be aged at 50°C ± 5°C and under full load.
Protection Features
Protection Level	EU: IP54 (Vehicle Connector Mated with Holder), IP65 (Vehicle Connector Mated with Cap) US: Type 3R
Protections	Over Voltage Protection, Over Current Protection, Short Circuit Protection, Ground Fault Protection, Leakage Protection, Emergency Stop Protection, Over Temperature Protection
Environmental Characteristics
Operating Temperature	-30℃ ~ +50℃
Storage Temperature	-35℃ ~ +80℃
Relative Humidity	5% ~ 95% RH (Without Condensation)
Operating Altitude	< 2000m
Communication Protocols
Communication Interface	Wi-Fi / Bluetooth (Optional)
Charger ↔ Platform	OCPP-1.6J
Certifications & Standards
Certification	CE / ETL
Safety Standards	EU: IEC 61851-1; EN/IEC 61851-1; IEC 62955; IEC 61851-21-2 US: UL2594; UL991; UL2251; UL1998
Standard Warranty	2 Years
Dimensions and Weight
Product Dimensions	368 x 256.5 x 130 mm
Product Weight	< 4.7 kg

Service and Support

Consultation
Customization
Installation
Maintenance

Let’s Answer Your Questions

Q1: Which vehicle models are compatible?

Our chargers support multiple charging connector standards including NACS, CCS, and CHAdeMO, making them suitable for most mainstream vehicle models. For specific compatibility details, please consult your vehicle manual.

Q2: What is an AC charger best used for?

AC chargers work at 7–22kW and take 3–10 hours for a full charge. They're ideal for overnight depot charging and cost-effective to install and operate. Best for home, parking lots, and apartments where charging during off-hours fits your schedule.

Q3: What electrical setup do I need for my AC charger?

Just standard 230V/400V three-phase power. AC chargers need minimal electrical upgrades—no complex infrastructure required.

Q4: When should I choose a DC fast charger?

All-in-one DC chargers combine power conversion and charging port in a single unit. Choose this for space-limited sites needing fast 10–60 minute charging. Simple installation, compact footprint.

Q5: What is a Smart Mobile charger with ESS?

It's a multifunctional charger combining DC charger + battery storage. Charge vehicles independently, operate anywhere—remote sites, temporary locations, events. No permanent grid connection needed.

Q6:What should I do if my charger malfunctions?

Most issues can be resolved remotely through our customer service hotline. If on-site service is required, we will dispatch certified technicians to resolve the problem after confirming the after-sales service schedule.

Q7: Can TDC chargers integrate with my fleet management system?

Yes. All chargers connect to TDC Hub, which tracks sessions, costs, vehicle health, and charging schedules. We support integration with your existing fleet management software.

Q8: What are the benefits of using the TDC ev charger?

Comprehensive product line: AC, DC, EV Charger with Advertising Screen, Split-type DC, and Smart Mobile Charger with ESS—matching every need

Smart software: TDC Charge and TDC Hub not only provide ev owners with a robust charging network and premium charging services, but also offer operators real-time monitoring, predictive maintenance, and system optimization.

24/7 support: Remote diagnostics, 4-hour on-site response, 98%+ uptime guarantee

Future-ready: Support for latest charging standards (CCS, MCS) and V2G technology
