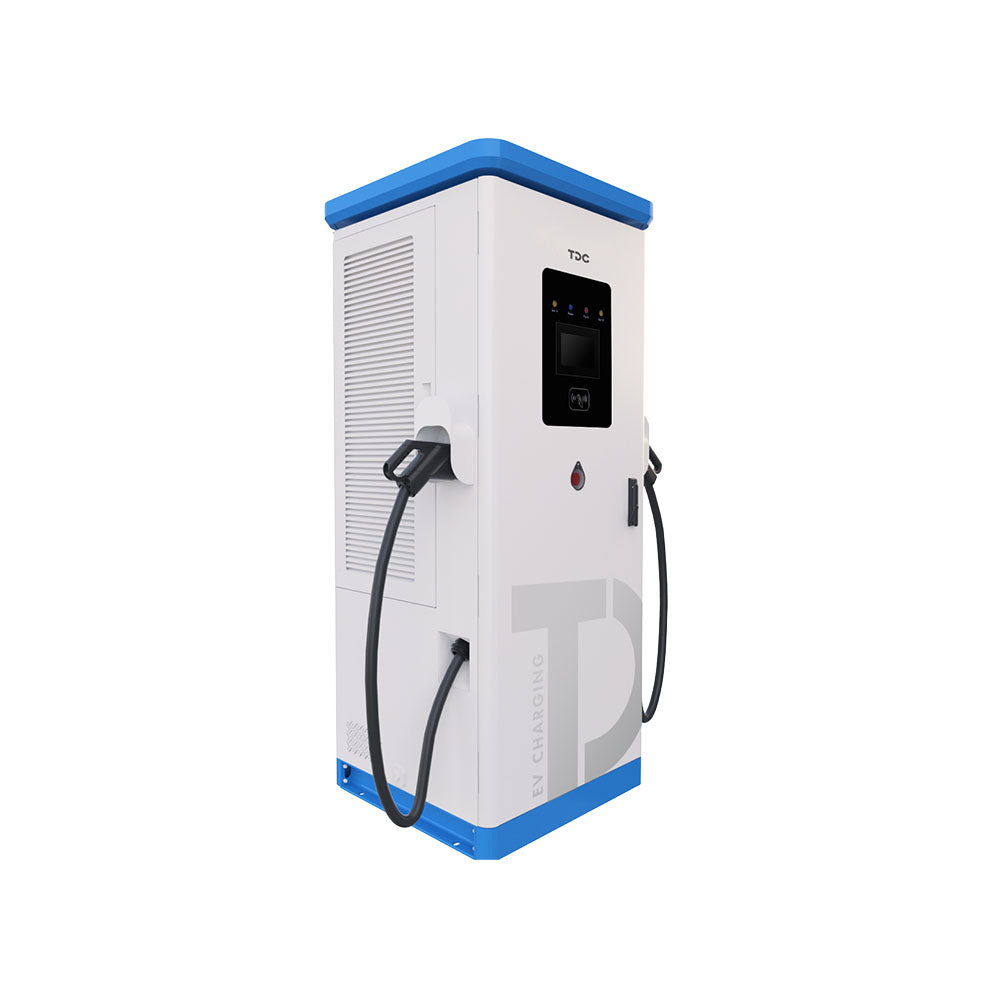

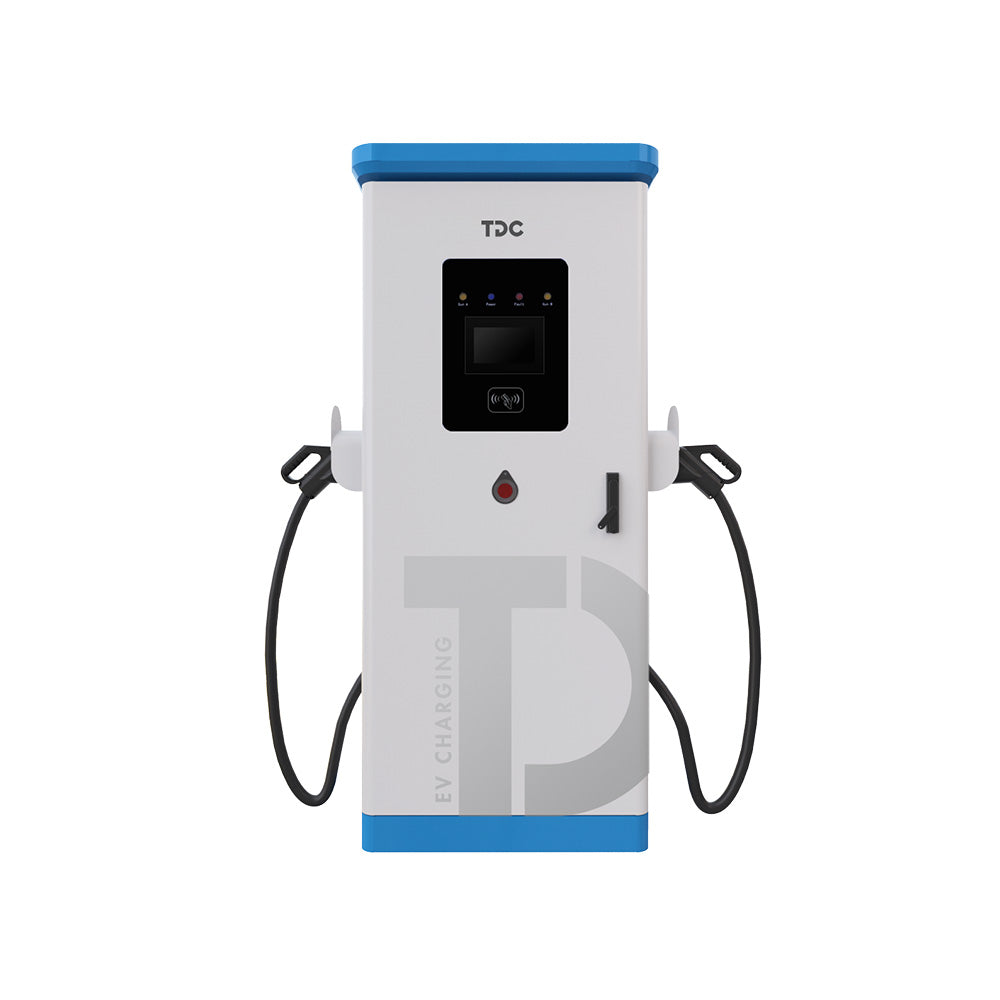

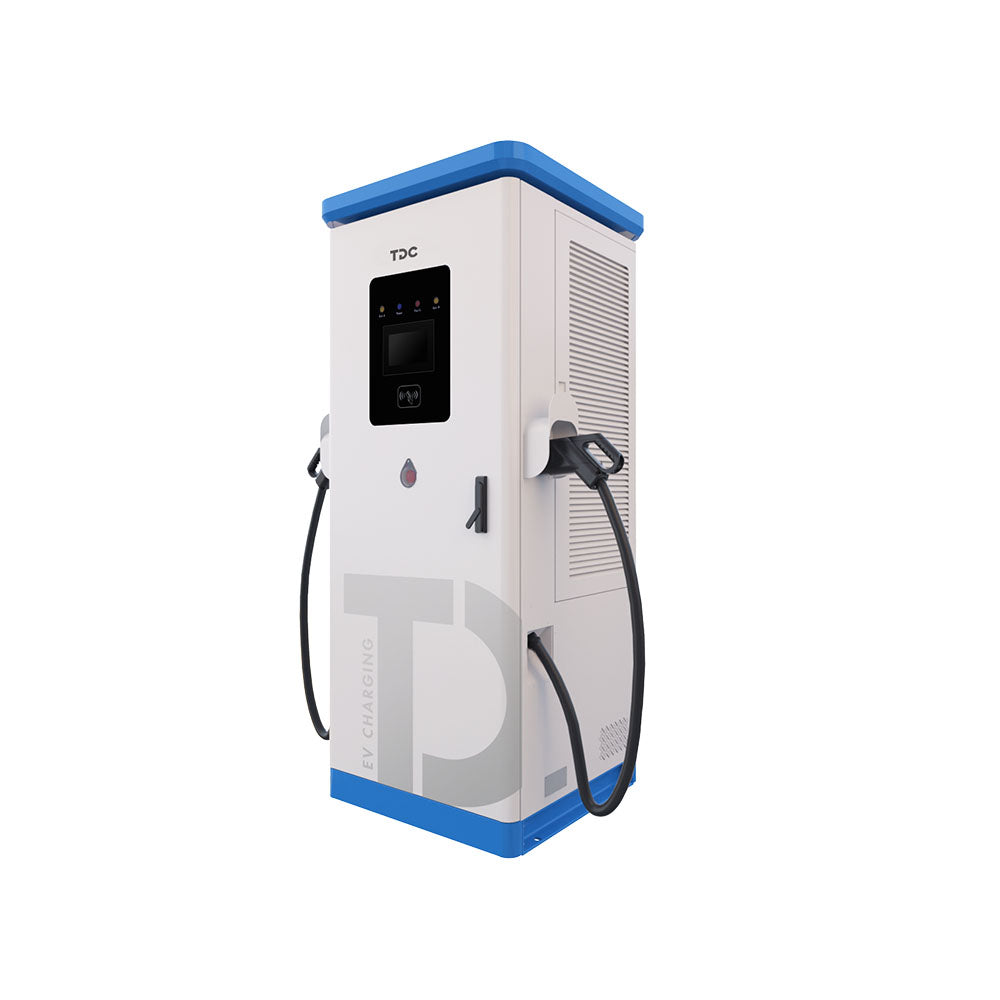

TRS 60-360kW Integrated DC EV Charger

Power

60kW
120kW
180kW
240kW
300kW
360kW

Power

Guaranteed safe checkout

Fast-Delivery Guarantee
1% Credit Reward
14-Day Returns

Highly Recommended

RAC 7-22kW AC EV Charger

Details

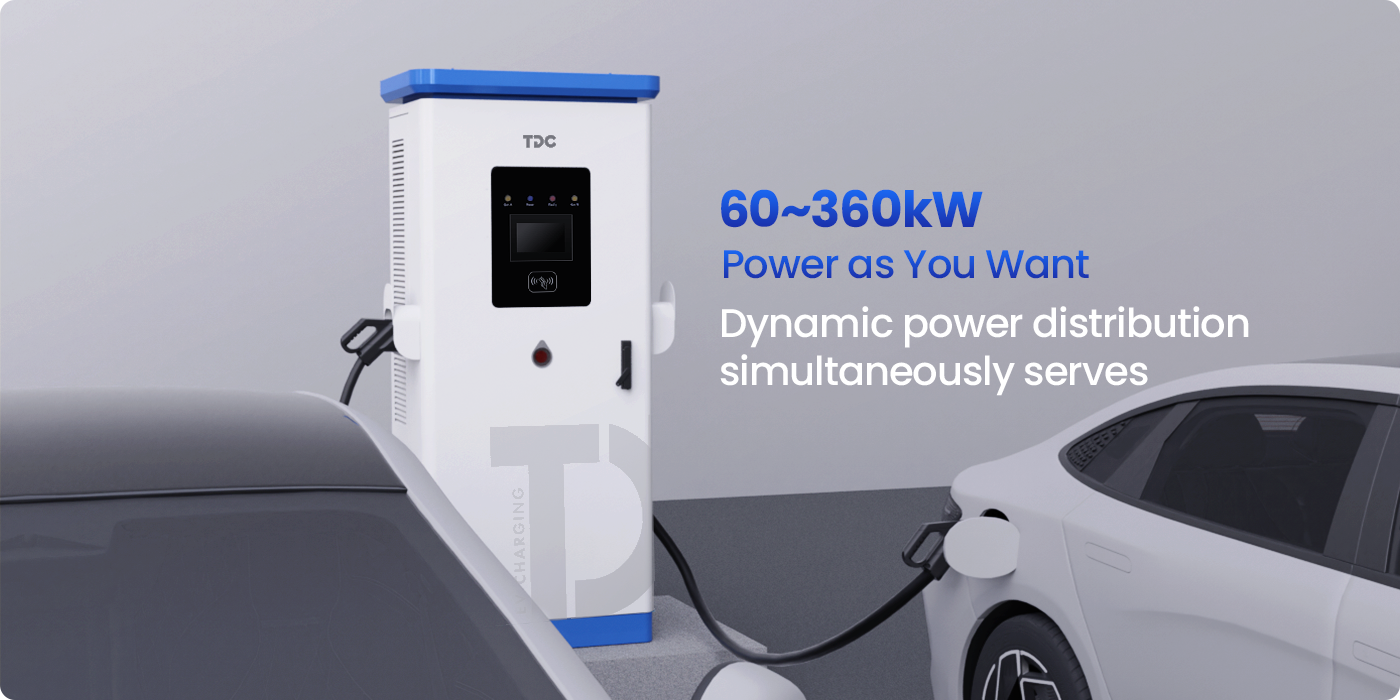

Scalable and Modular, Power as You Wish

TRS features dual cables and optional power configurations ranging from 60 to 360 kW, achieving a full charge in just 15 minutes.

We also offer a customisable service, allowing you to freely tailor various modular components and ID designs as you wish.

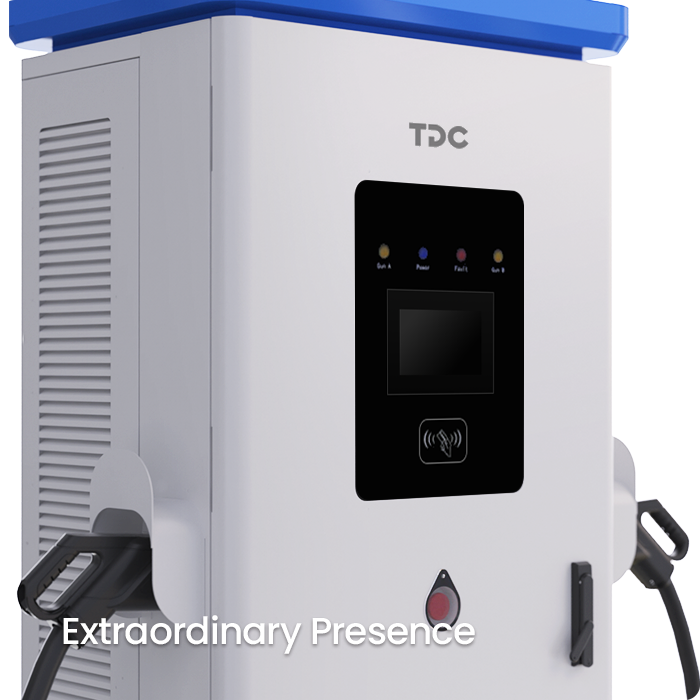

Excellent User Experience

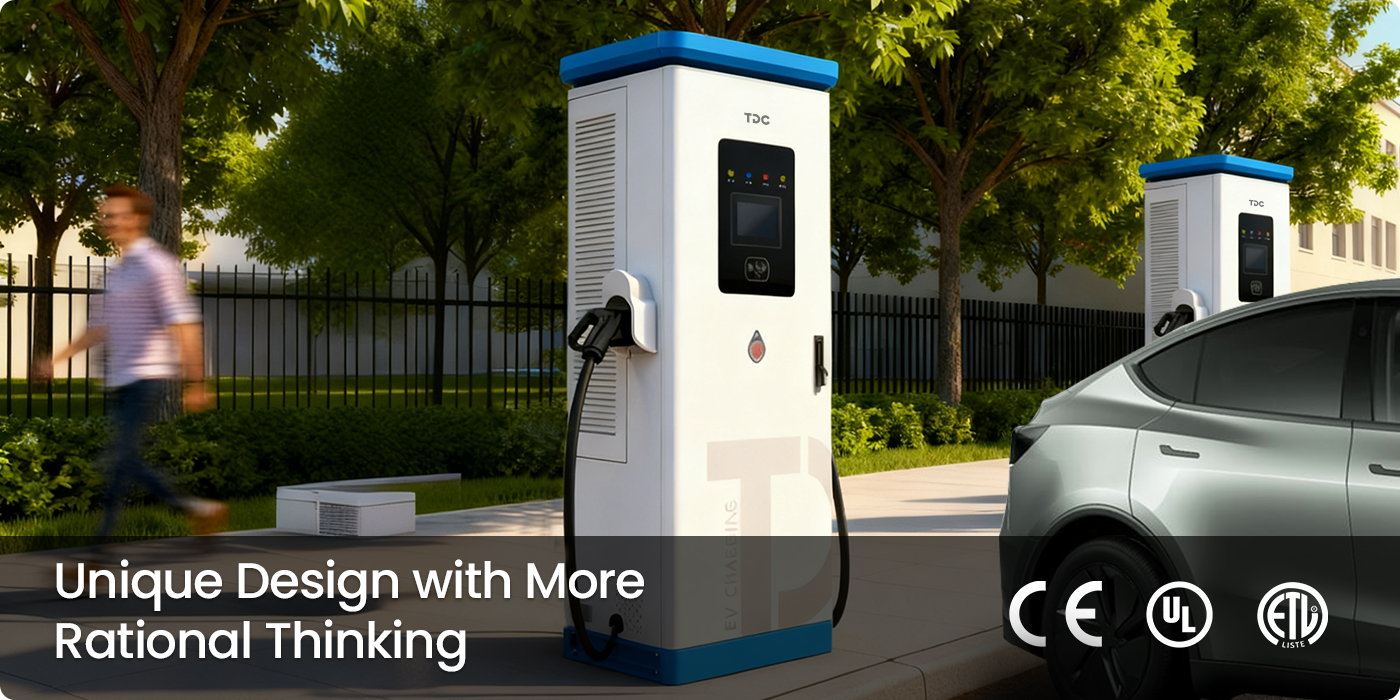

TRS features a compact, ergonomic, and modern design. Its striking appearance, clear LED light bar, and 10.1-inch control interface deliver an exceptional charging experience for end users.

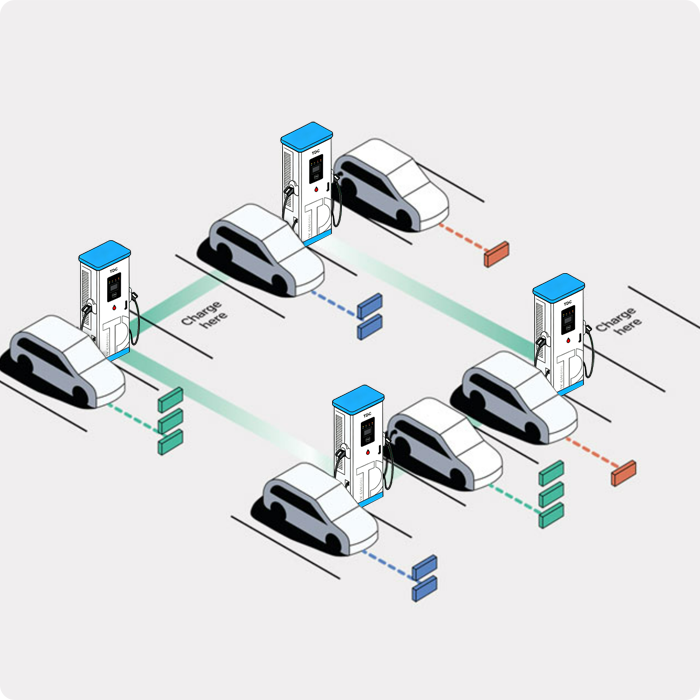

Intelligent Management and Operations

Combine various chargers for enhanced flexibility and scalability, lowering both capital and operational costs. TDC Smart Management Cloud Platform optimizes energy distribution between chargers and building consumption, preventing grid overload and costly electrical upgrades.

Built for Everyone

TRS delivers powerful dynamic charging capabilities, seamlessly integrates payment methods across multiple countries and regions, and supports all major charging standards.

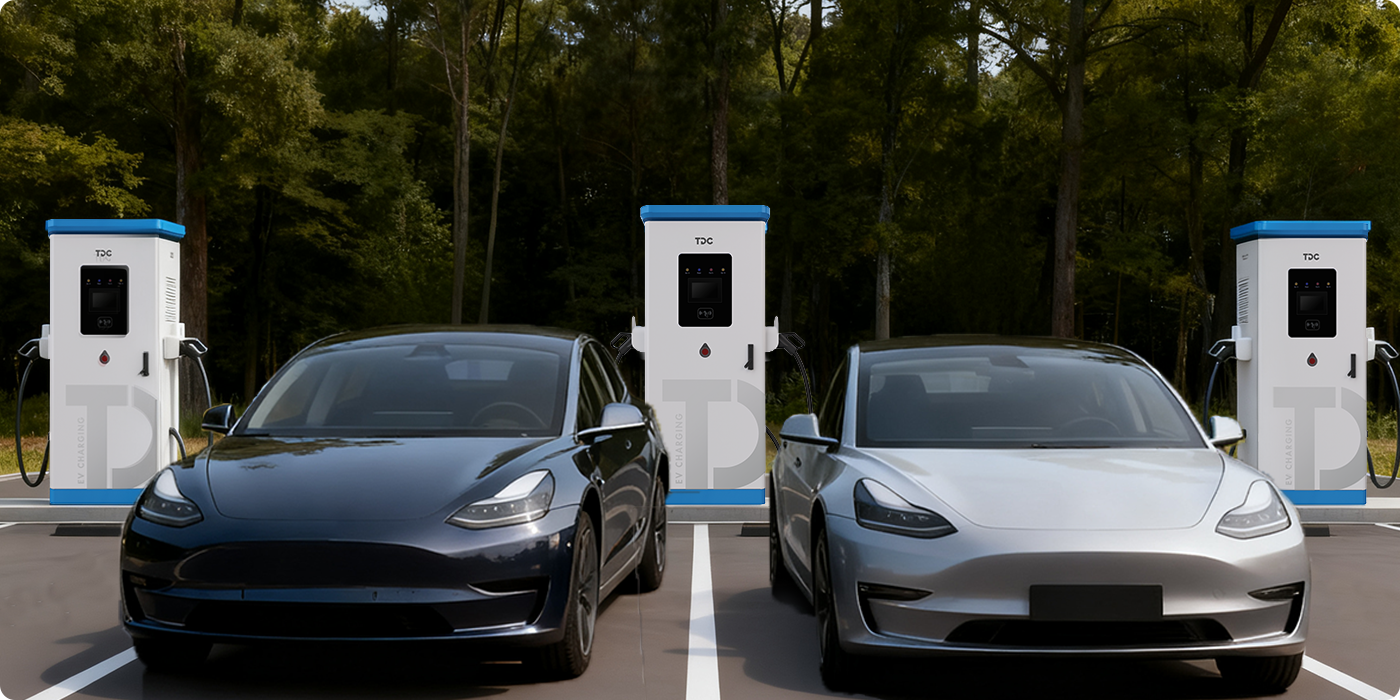

You can create your preferred TRS charging stations anywhere in the world

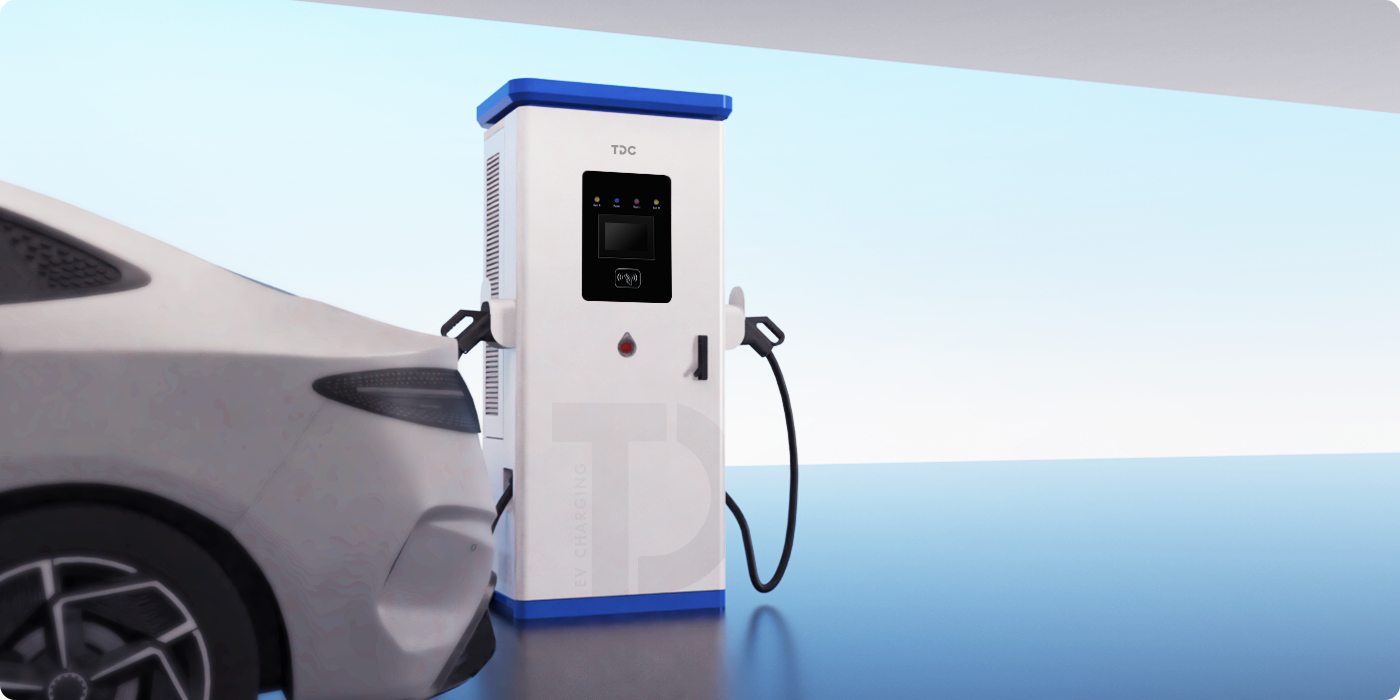

More Reliable Than Think

TRS employs a dedicated power supply module, ensuring easy maintenance and maximizing uptime.

Internal monitoring system provides real-time data and automated diagnostics, simplifying service and maintenance while guaranteeing the charger's reliable operation.

Remain Prepared for Now and Forever

TRS's design features a modular architecture and services that can be upgraded on-site.

This ensures not only straightforward and quick construction but also convenient updates and enhancements.

Worry-free After-Sales Service

TDC offers a range of customizable services, including regular inspections, technical training, and spare parts supply,

to ensure the optimal installation, operation, and maintenance of your TRS.

Model	TRS60	TRS120	TRS180	TRS240	TRS300	TRS360
Electrical Specifications
Rated Power	60kW	120kW	180kW	240kW	300kW	360kW
Input Voltage	EU: 400Vac ± 10%; 3P + N +PE US: 480Vac ± 10%; 3P + N +PE
Input Frequency	50 ± 1Hz / 60 ± 1Hz
Max. Input Current	200A
Output Voltage	200 ~ 1000Vdc
Max. Output Current	300A
Efficiency	≥ 95%
Voltage Regulation Accuracy	≤ ±0.5%
Current Regulation Accuracy	≤ 1%
Ripple Coefficient	≤ ±0.5%
Harmonic Distortion	≤ 5% (At Load >50%)
Mechanical & Structural Features
HMI	7-inch Touch Display
Indicator Light	4 Colors LED
Cable Length	5m
Charging Method	RFID Card / Scan QR Code to Start
Connector Type	CCS2 / CCS1
Protective Features
Protection Degree	EU: IP54 / US: Type 3R
Protections	Over Voltage Protection, Over Current Protection, Short Circuit Protection, Ground Fault Protection, Leakage Protection, Emergency Stop Protection, Over Temperature Protection
Environmental Features
Operating Temperature	-30℃~+50℃
Storage Temperature	-40℃~+70℃
Relative Humidity	5% ~ 95% RH (Without Condensation)
Operating Altitude	< 2000m
Communication Method
Communication Interface	Ethernet / Wi-Fi / 4G
Charger ↔ Platform	OCPP-1.6J
Charger ↔ Vehicle	DIN70121; ISO15118
Certifications & Standards
Certification	CE / UL
Safety Standards	EU: EN IEC 61851-1:2019, EN 61851-23:2014, EN 61851-24:2014, EN IEC 61851-21-2:2021 US: UL2231, UL2202;
Standard Warranty	2 Years
Dimensions and Weight
Product Dimensions	1966 x 830 x 824 mm
Product Weight	≤ 405kg	≤ 435kg	≤ 455kg	≤ 490kg	≤ 530kg	≤ 570kg

Service and Support

Consultation
Customization
Installation
Maintenance

Let’s Answer Your Questions

Q1: Which vehicle models are compatible?

Our chargers support multiple charging connector standards including NACS, CCS, and CHAdeMO, making them suitable for most mainstream vehicle models. For specific compatibility details, please consult your vehicle manual.

Q2: What is an AC charger best used for?

AC chargers work at 7–22kW and take 3–10 hours for a full charge. They're ideal for overnight depot charging and cost-effective to install and operate. Best for home, parking lots, and apartments where charging during off-hours fits your schedule.

Q3: What electrical setup do I need for my AC charger?

Just standard 230V/400V three-phase power. AC chargers need minimal electrical upgrades—no complex infrastructure required.

Q4: When should I choose a DC fast charger?

All-in-one DC chargers combine power conversion and charging port in a single unit. Choose this for space-limited sites needing fast 10–60 minute charging. Simple installation, compact footprint.

Q5: What is a Smart Mobile charger with ESS?

It's a multifunctional charger combining DC charger + battery storage. Charge vehicles independently, operate anywhere—remote sites, temporary locations, events. No permanent grid connection needed.

Q6:What should I do if my charger malfunctions?

Most issues can be resolved remotely through our customer service hotline. If on-site service is required, we will dispatch certified technicians to resolve the problem after confirming the after-sales service schedule.

Q7: Can TDC chargers integrate with my fleet management system?

Yes. All chargers connect to TDC Hub, which tracks sessions, costs, vehicle health, and charging schedules. We support integration with your existing fleet management software.

Q8: What are the benefits of using the TDC ev charger?

Comprehensive product line: AC, DC, EV Charger with Advertising Screen, Split-type DC, and Smart Mobile Charger with ESS—matching every need

Smart software: TDC Charge and TDC Hub not only provide ev owners with a robust charging network and premium charging services, but also offer operators real-time monitoring, predictive maintenance, and system optimization.

24/7 support: Remote diagnostics, 4-hour on-site response, 98%+ uptime guarantee

Future-ready: Support for latest charging standards (CCS, MCS) and V2G technology
