    SPE 480-1200kW Split-type DC Charging System

    $33,600.00
    Standard
    • EU
    • US
    Power
    • 480kW
    • 600kW
    • 720kW
    • 840kW
    • 960kW
    • 990kW
    • 800kW
    • 1080kW
    • 1200kW
    Guaranteed safe checkout
    ecom-no-replace-aSLjKik1k3trust-dron

    • Fast-Delivery Guarantee

    • 1% Credit Reward

    • 14-Day Returns

    • Highly Recommended

    MEC 7-22kW AC EV ChargerMEC 7-22kW AC EV Charger

    MEC 7-22kW AC EV Charger

    $399.00
    Details
    FLY 7-22kW AC EV ChargerFLY 7-22kW AC EV Charger

    FLY 7-22kW AC EV Charger

    $299.00
    Details
    RAC 7-22kW AC EV ChargerRAC 7-22kW AC EV Charger

    RAC 7-22kW AC EV Charger

    $459.00
    Details

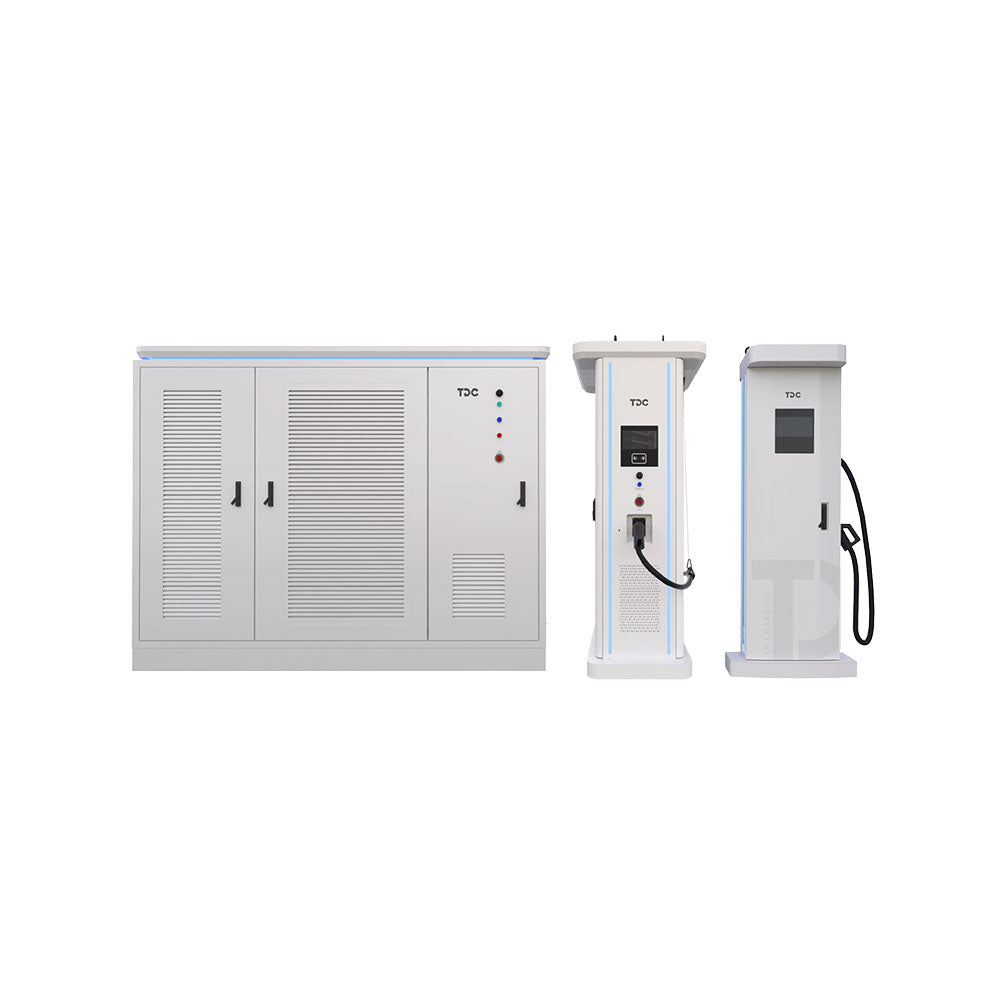

    Distributed Design
    Distributed design with one main cabinet and multiple dispensers to accommodate diverse charging needs.
    Up to 1200kW Power
    With a power supply of up to 1200kW, SPE charging system efficiently meets high-demand needs, perfect for public and commercial settings.
    Intelligent Allocation System
    TDC's Star Ring Power Distribution System smartly allocates power to meet diverse charging demands, enabling full-matrix intelligent charging.

    Descriptions

    Specifications

    Powering Every Mile of Your Drive


    Integrating heavy-duty charging infrastructure into existing parking facilities is now simpler than ever.

    A single charging cabinet can remotely charge up to 10 commercial vehicles, offering a flexible solution for transportation and logistics.

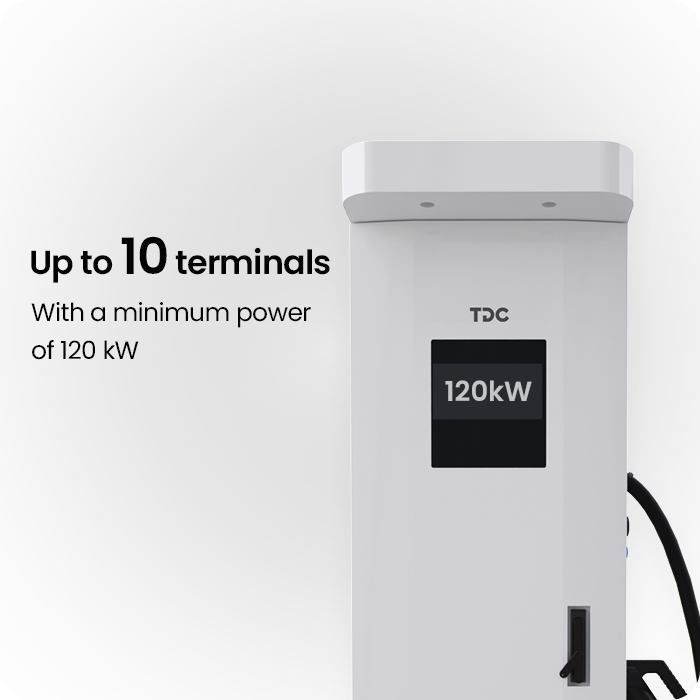

    Unparalleled Reliability and Powerful Performance


    Up to 1200 kW of power is distributed up to 10 outlets, with a minimum granularity of 120 kW, ensuring the highest stability and charging efficiency.

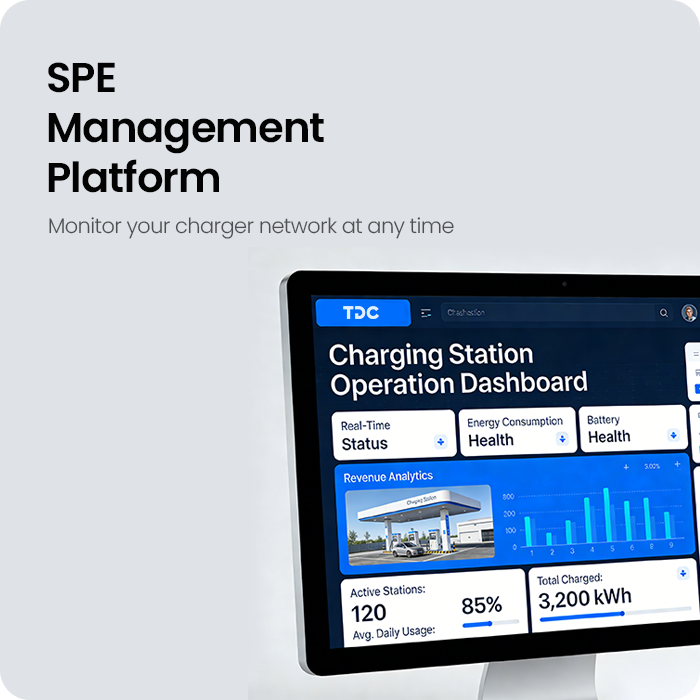

    Maintain Monitoring at All Times


    SPE ensures continuous connectivity to the TDC management cloud platform, facilitating real-time equipment monitoring that maximizes uptime and boosts operational efficiency.

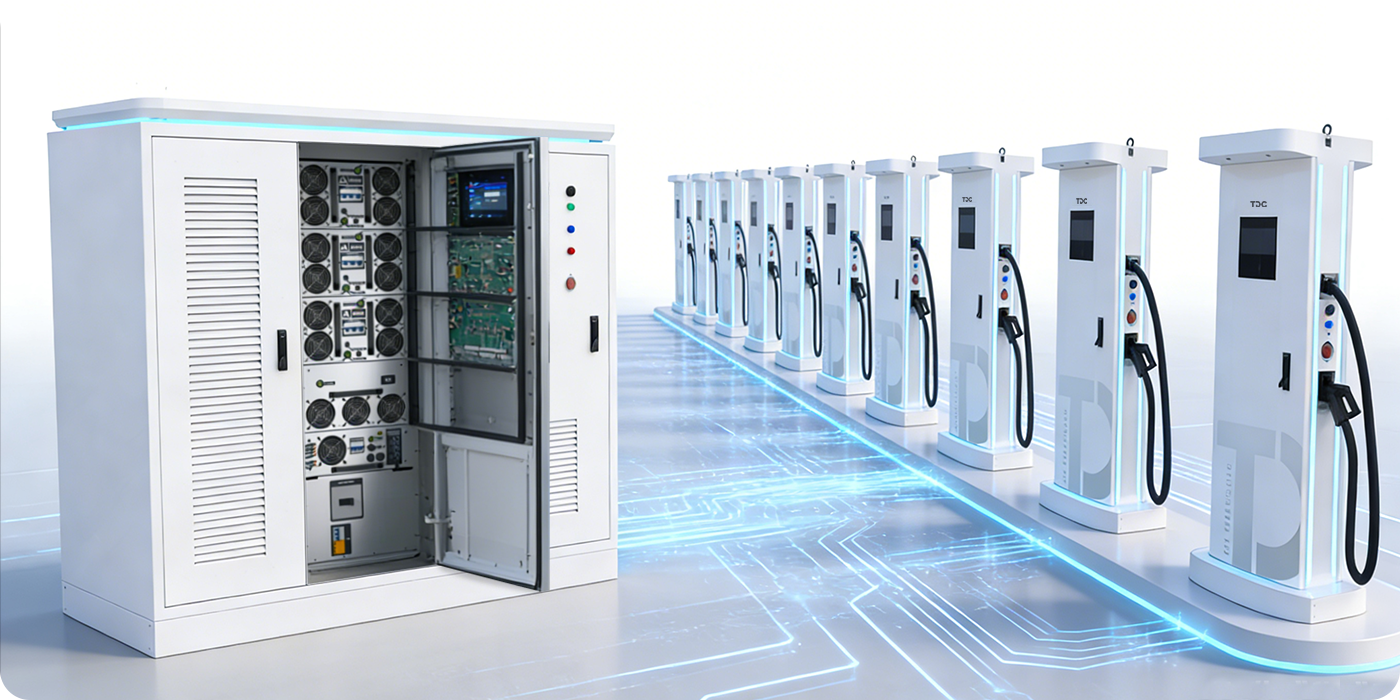

    Dynamic Power Management


    Each SPE power unit, whether in the main cabinet or at the terminal,

    includes a unique power distribution module that enhances utilization and maximizes return on investment.

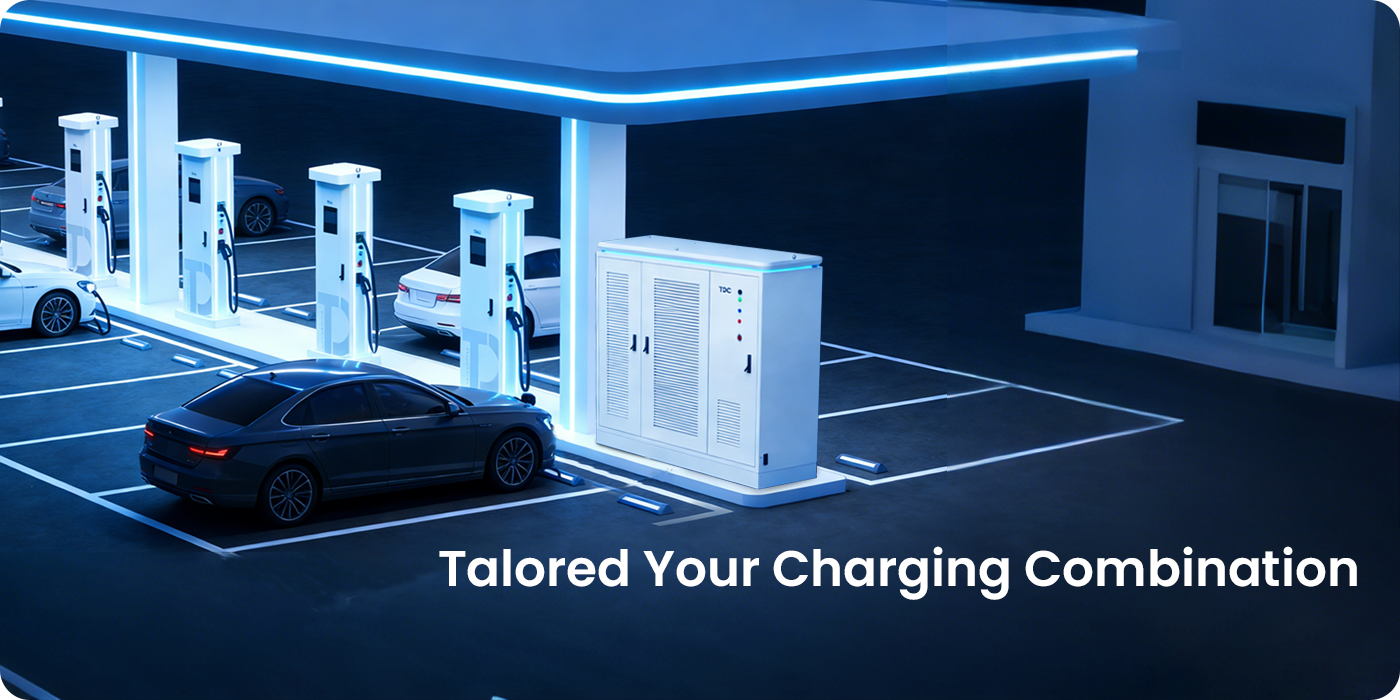

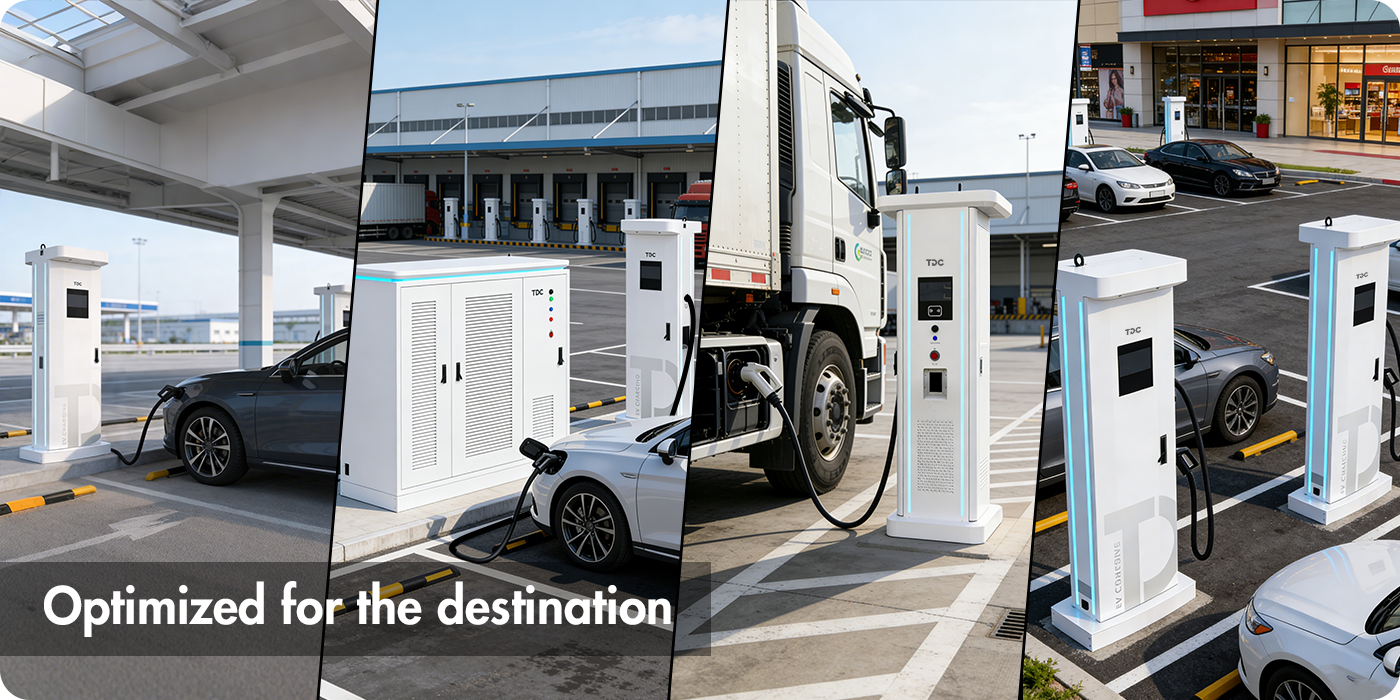

    Flexible Site Configuration


    SPE offers remarkable adaptability, integrating effortlessly into warehouses, fleets, parking lots, or highways, and can be flexibly installed in various locations.

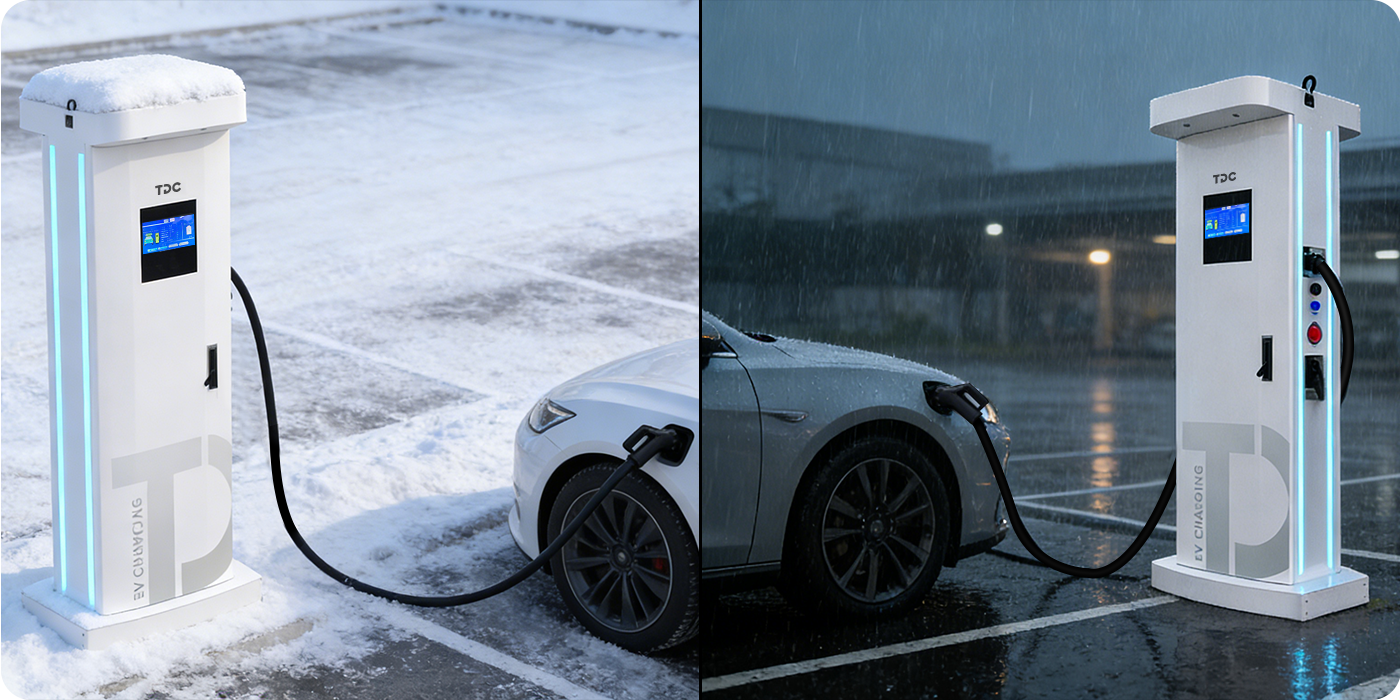

    Built for The Toughest Environments


    SPE boasts a modular rack-mounted design that scales with your business.

    Its weatherproof construction ensures durability for both indoor and outdoor installations, resistant to rain and dust.

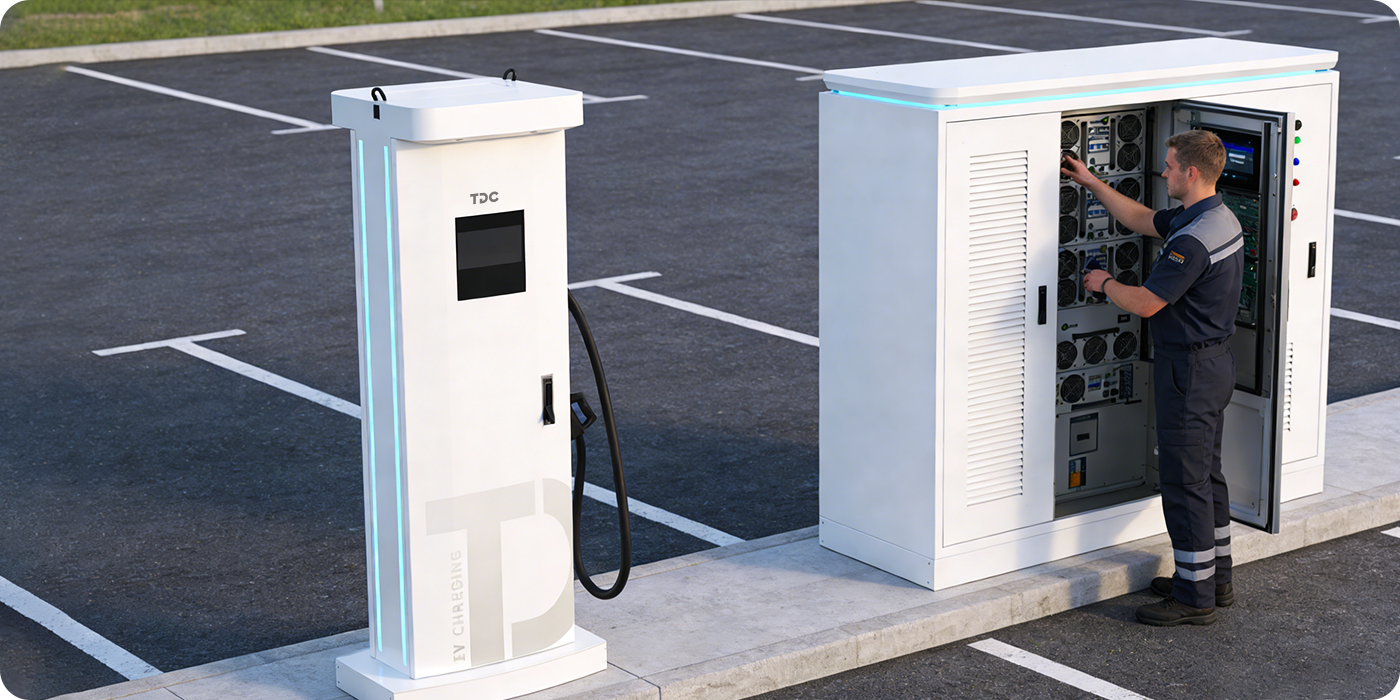

    Better maintenance and support


    Utilize our extensive expertise to maintain your chargers.

    TDC experts offer maintenance and repair services to ensure the reliable operation of your charging systems

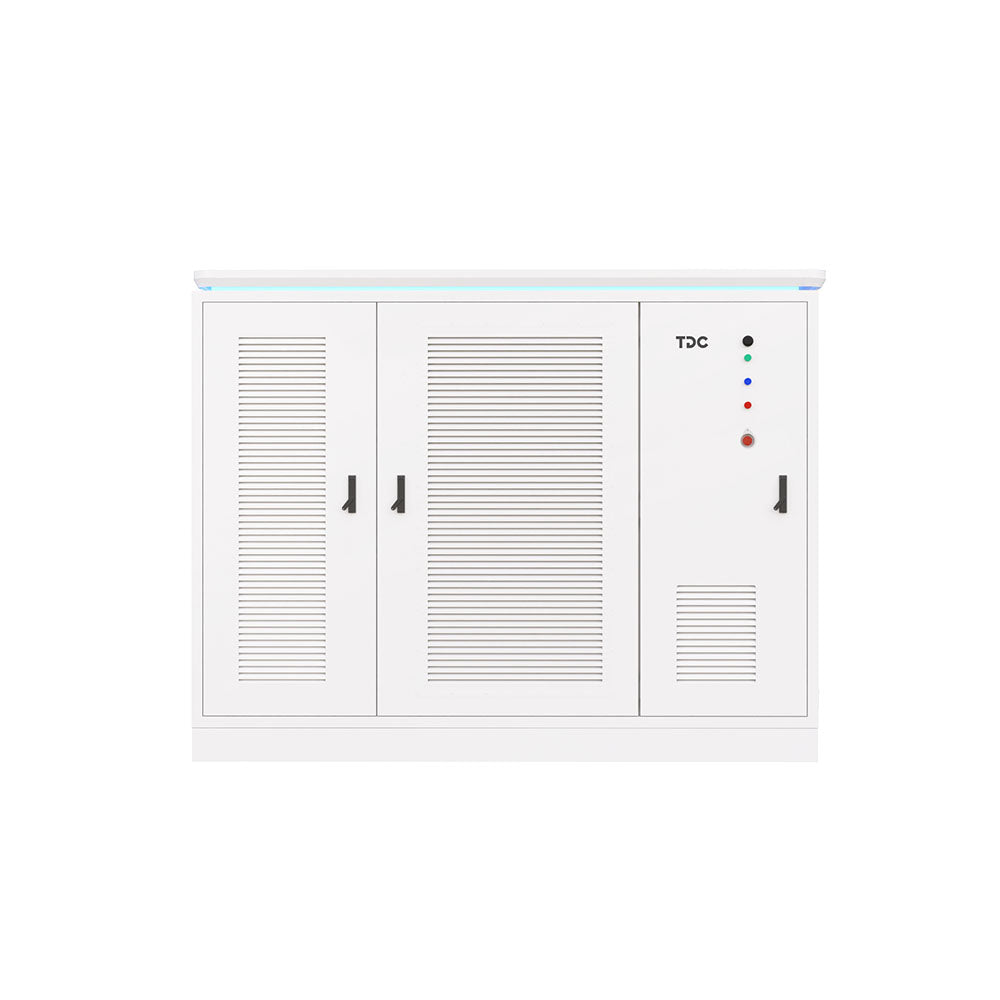

    Model SPE - Power Cabinet
    Input Features
    Rated Power 480kW 600kW 720kW 800kW 840kW 960kW 990kW 1080kW 1200kW
    AC Input Voltage 400Vac (±10%); 3P + N + PE
    DC Input Voltage Range 200 ~ 1000V
    Input Frequency 50 / 60 Hz
    Max. Input Current 916A 1100A 1200A 1283A 1466A 1512A 1512A 1512A 1512A
    Output Voltage 200 ~ 1000Vdc
    DC Output Voltage Range 200 ~ 1000V
    Efficiency ≥ 95%
    Rated Power 480kW 600kW 720kW 800kW 840kW 960kW 990kW 1080kW 1200kW
    Structural Features
    Protection Degree IP54, IK10
    Dimensions 2300 x 900 x 2000 mm
    OCPP OCPP-1.6J
    Heat Dissipation Method Independent Airflow Channel Cooling

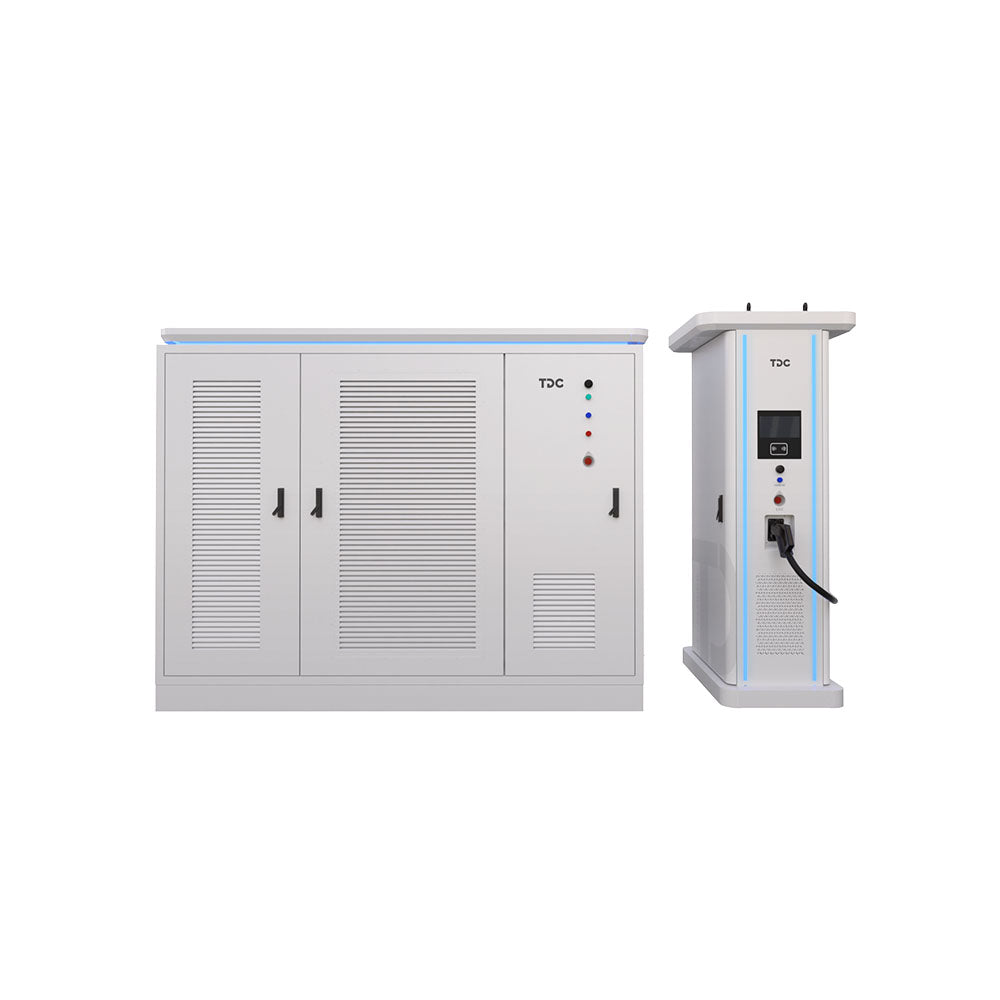

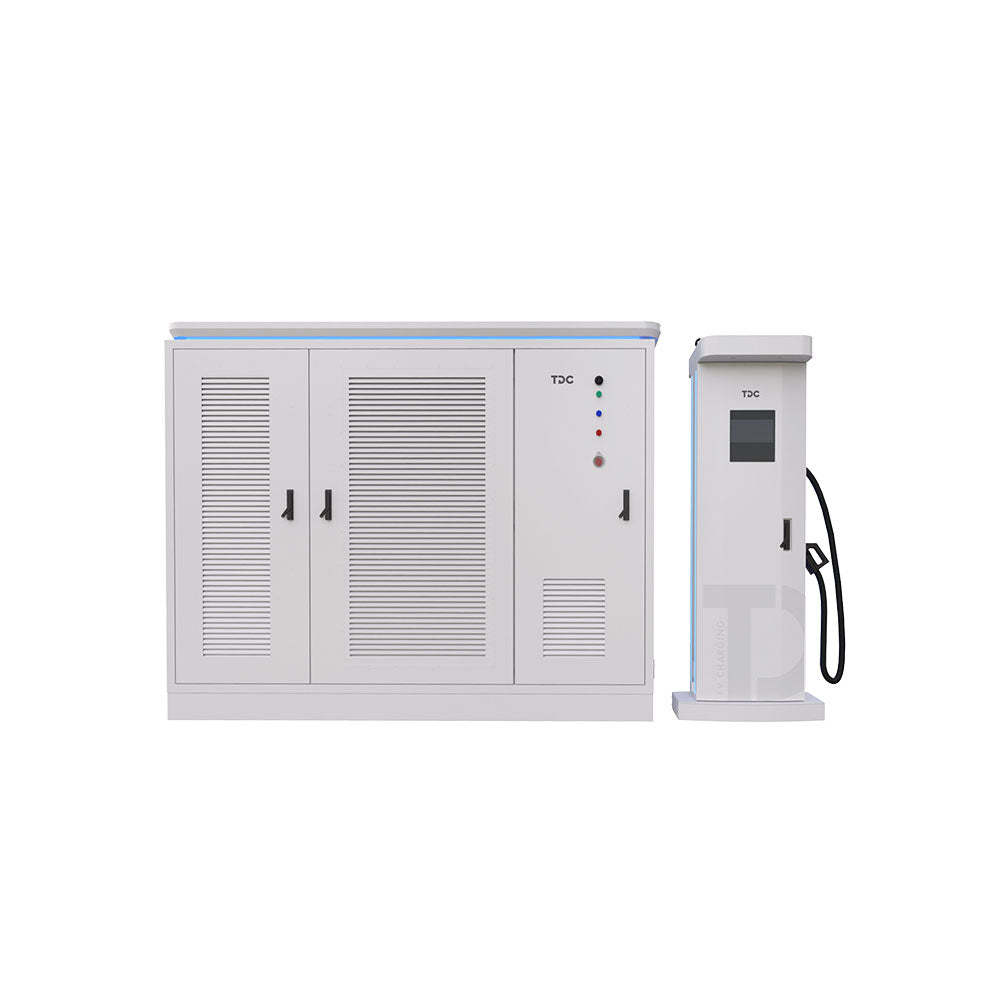

    Model SPE - Dispenser
    Structural Features
    Output Voltage 200 ~ 1000Vdc; 300 ~ 1000Vdc (The Output Voltage of Constant Power Output
    Maximum Output Power 300kW (Air-cooled Dispenser); 990kW (Liquid-cooled Dispenser)
    Maximum Output Current 300A ( Air-cooled Dispenser); 1000A (Liquid-cooled Dispenser)
    Protection Degree IP54, IK10
    Components Features
    Cable Length 5m (4.5m Exposed From the Charger)
    HMI 10.1-inch Display
    RFID Reader ISO14443A + B to part 4 and ISO/IEC15693, Mifare1, NFC
    Communication Ethernet / 4G
    Communication Protocols OCPP-1.6J
    Charging Method RFID Card / Scan Code to Start
    Payment Method RFID Card / App
    EMC Class A (Industrial)
    Environmental Features
    Operating Temperature -30℃~+50℃
    Storage Temperature -40℃~+70℃
    Humidity 5% ~ 95% RH Without Condensation
    Operating Altitude < 2000m
    Reliability
    MTBF 100,000H
    Aging The product should be aged at 50°C ± 5°C and under full load.
    Warranty 2 Years
    Protection Features
    Protective Charging Gun Temperature Detection, Over Voltage Protection, Under Voltage Protection, Short Circuit Protection, Ground Fault Protection, Reverse Connection Protection, Lightning Protection, Over Load Protection, Over Temperature Protection
    Certification
    Certification CE, ETL
    Safety Standards UL2231, UL2202; EN IEC 61851-1:2019, EN 61851-23:2014, EN 61851-24:2014, EN IEC 61851-21-2:2021
    Protocol DIN 70121 / ISO15118
    Dimensions and Weight
    Product Dimensions 610 x 446 x 1532 mm (Air-cooled Dispenser); 1103 x 910 x 2200 mm (Liquid-cooled Dispenser)
    Product Weight ≤ 215kg (Air-cooled Dispenser); ≤ 395kg (Liquid-cooled Dispenser)
