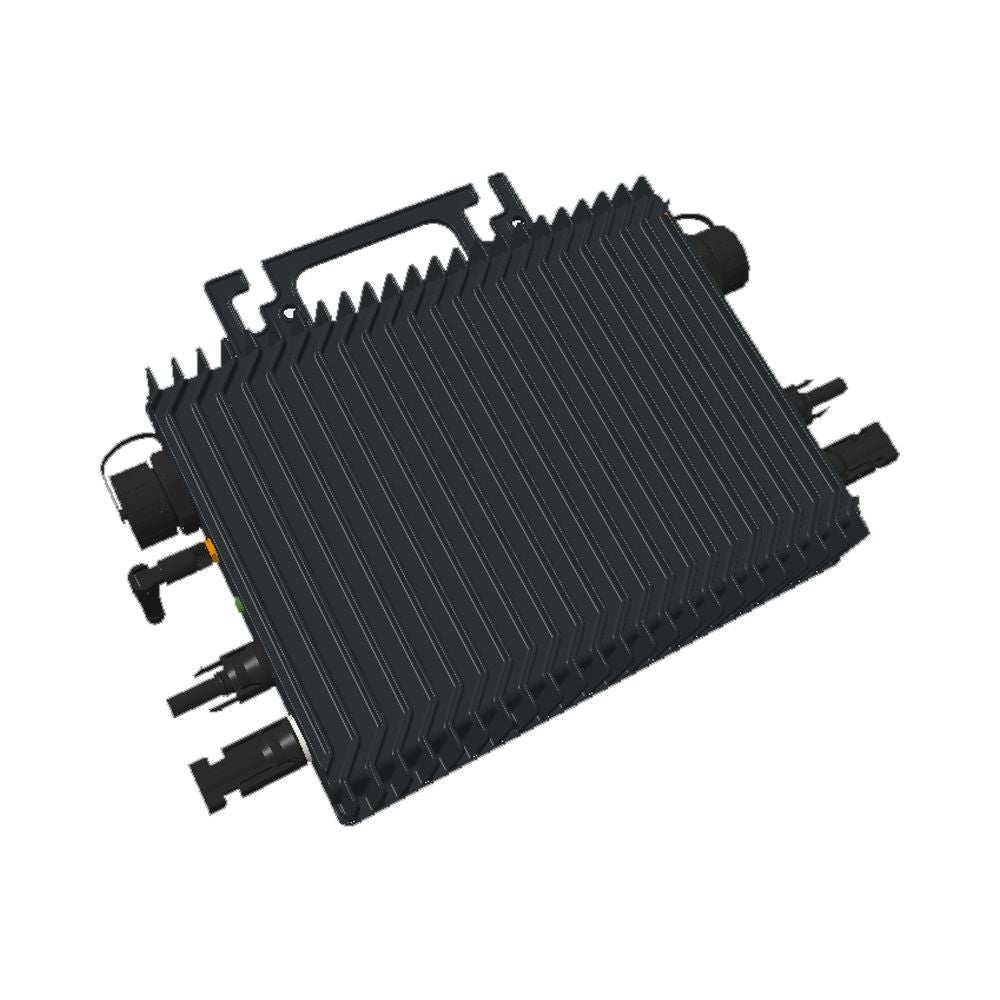

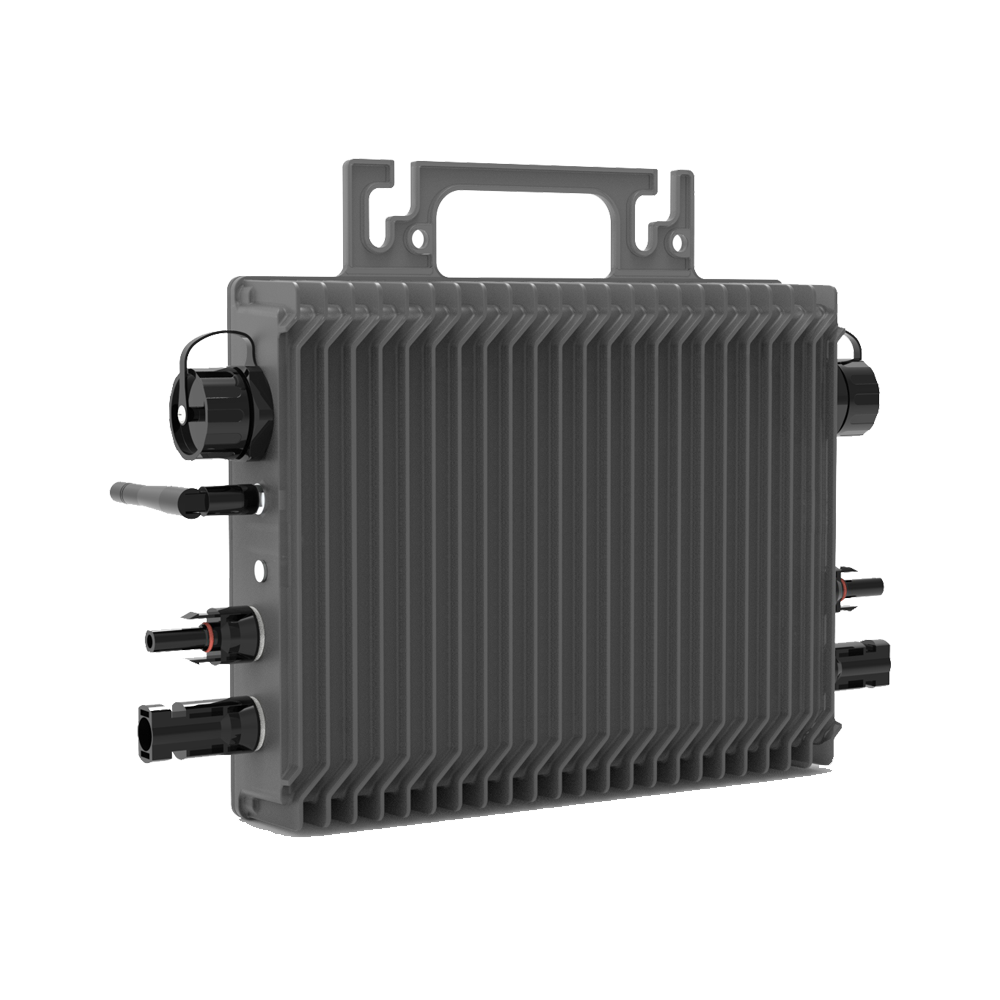

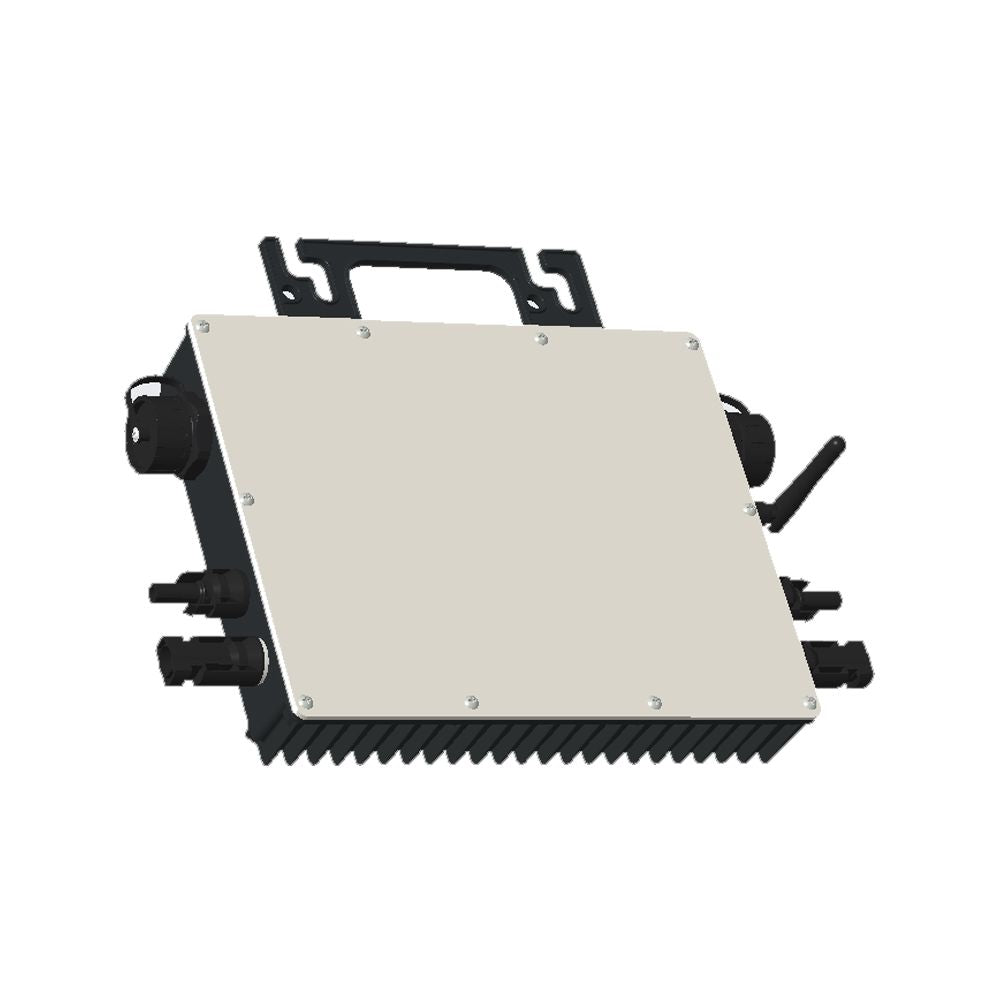

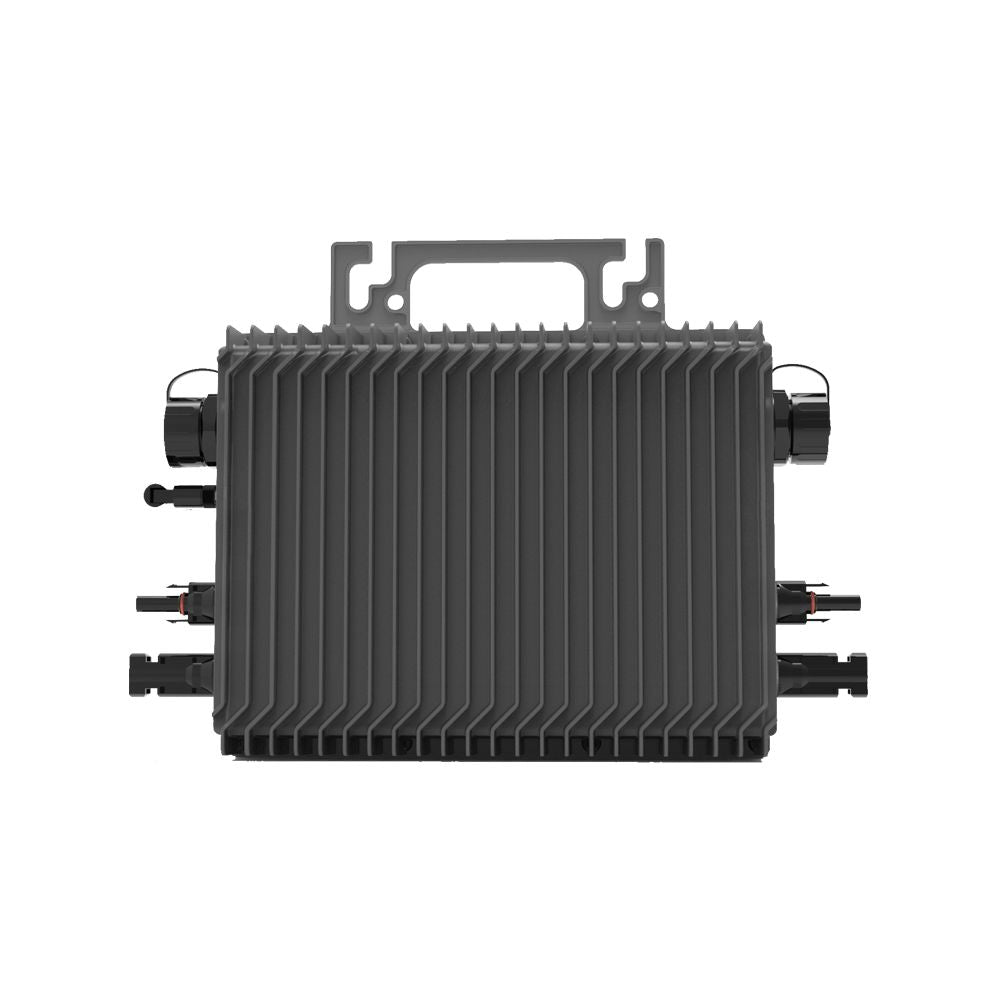

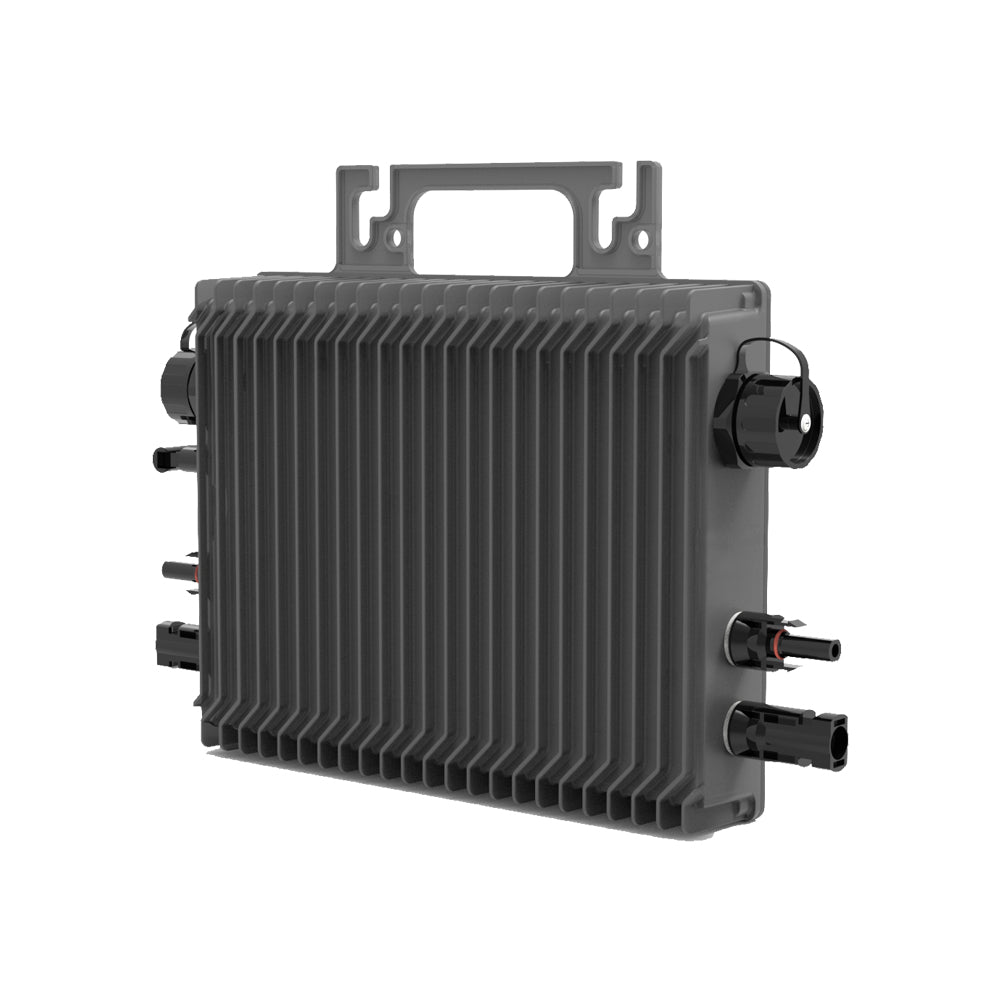

    RM800 Micro Grid Inverter for Balcony | 800W

    $199.00
    $299.00

    • Efficiency exceeding 95% with a peak surge of 800W.

    • Comprehensive electronic protections for enhanced safety.

    • Micro Grid technology delivers high-quality AC power and portable.

    • User-friendly remote control and multiple outlets.

    • Built to last with an IP65 waterproof rating.

    Guaranteed safe checkout
    ecom-no-replace-aSLjKik1k3trust-dron

    • Fast-Delivery Guarantee

    • 1% Credit Reward

    • 14-Day Returns

    • Highly Recommended

    MEC 7-22kW AC EV ChargerMEC 7-22kW AC EV Charger

    MEC 7-22kW AC EV Charger

    $399.00
    Details
    FLY 7-22kW AC EV ChargerFLY 7-22kW AC EV Charger

    FLY 7-22kW AC EV Charger

    $299.00
    Details
    RAC 7-22kW AC EV ChargerRAC 7-22kW AC EV Charger

    RAC 7-22kW AC EV Charger

    $459.00
    Details
    0% of Energy Wasted
    This 800W Microinverter maximizes the efficiency of your solar power system by delivering 100% of the captured solar energy to your devices.
    Works with Power Stations
    Compatible with all TDC Portable Power Stations, this microinverter seamlessly integrates into your existing power setup, allowing you to expand your energy system.
    Automatic Energy Allocation
    The Automatic Energy Allocation feature intelligently prioritizes energy distribution, sending power directly to home appliances during peak demand, while efficiently storing any surplus.

    Descriptions

    Specifications

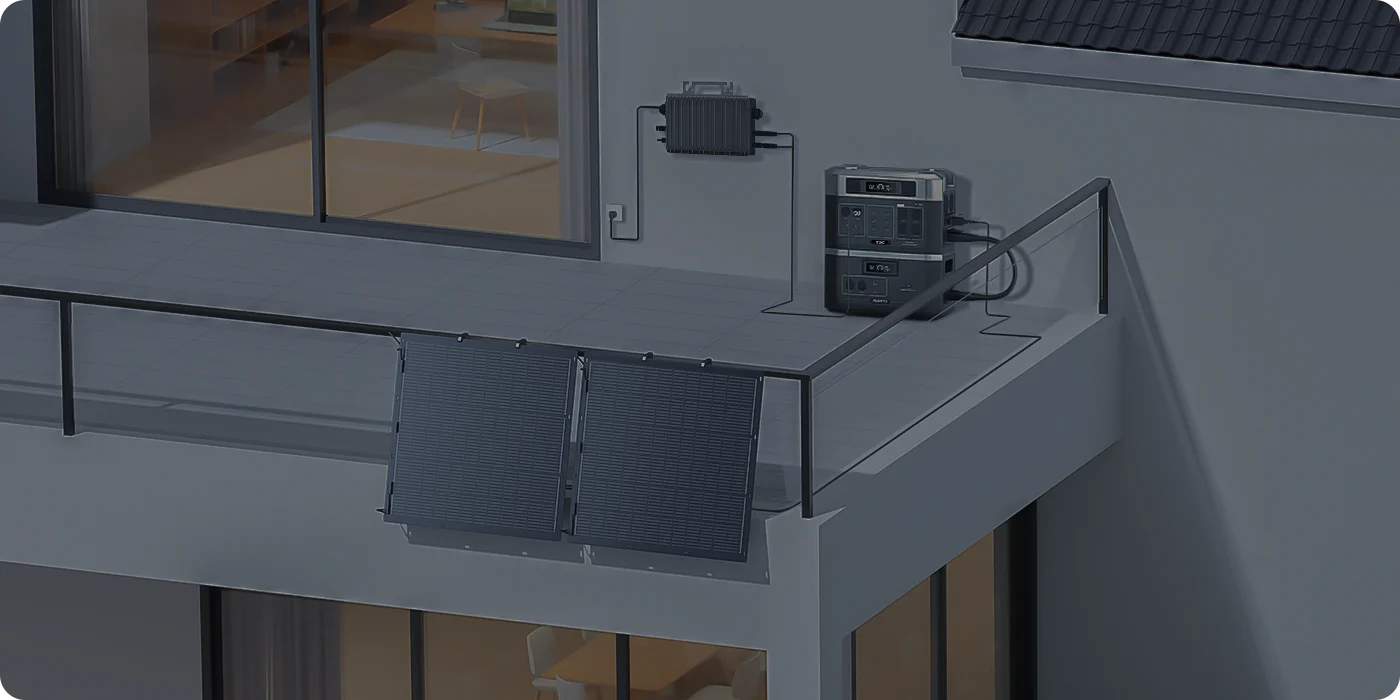

    Power through the Night


    When you start peaking in your electricity demand in the evening, your home draws energy from the portable power station and keeps on saving.

    It helps you to be less reliant on the grid.

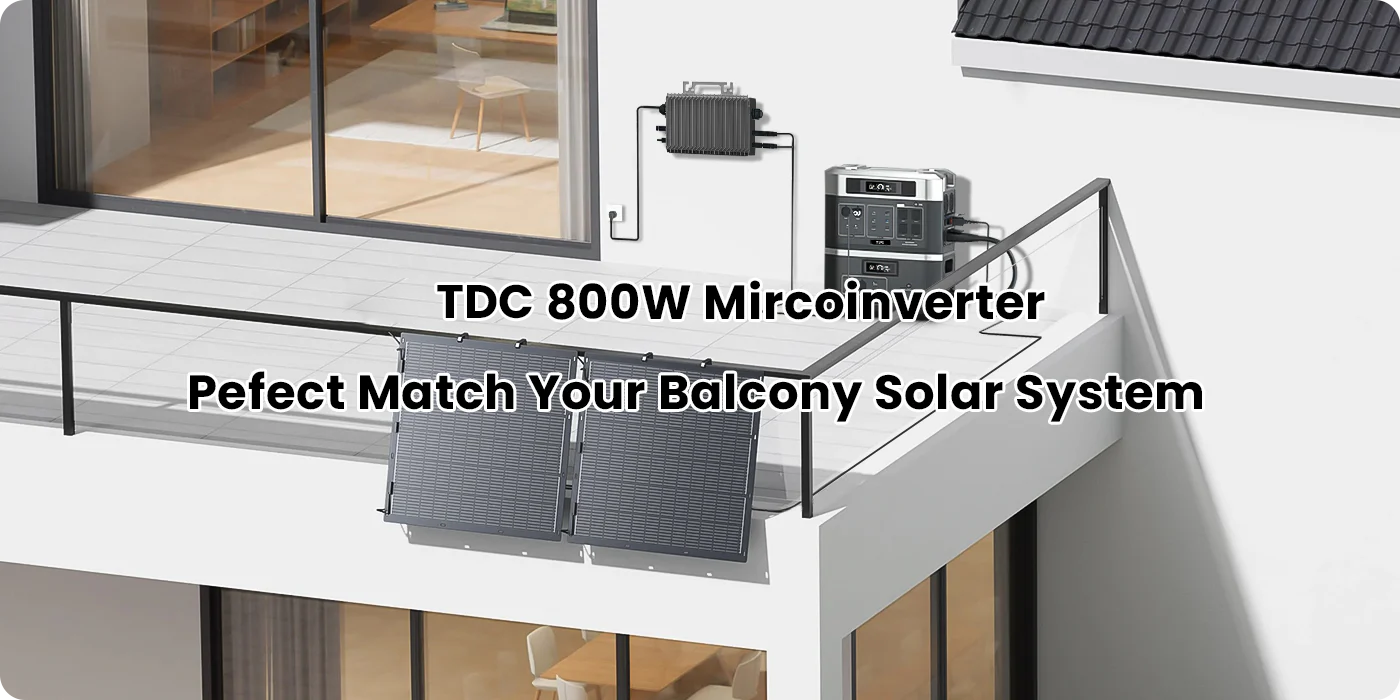

    Lightweight. Compact. Stylish.


    The RM800 Micro Inverter is designed with a sleek and modern aesthetic, making it a perfect addition to any balcony setup. Its lightweight and compact design ensures it won't take up much space or add unnecessary weight. Despite its small size, it packs a powerful 800W output, providing reliable energy conversion. The stylish design not only enhances the visual appeal but also integrates seamlessly with contemporary home environments.

    Easy to Install


    The RM800 Micro Inverter is engineered for hassle-free installation. With user-friendly features and clear instructions, setting it up is straightforward, even for those with minimal technical knowledge. The compact size and lightweight design further simplify the process, allowing you to easily mount it on your balcony. This inverter is designed to be plug-and-play, reducing the need for professional installation and enabling you to start harnessing solar energy quickly and efficiently.

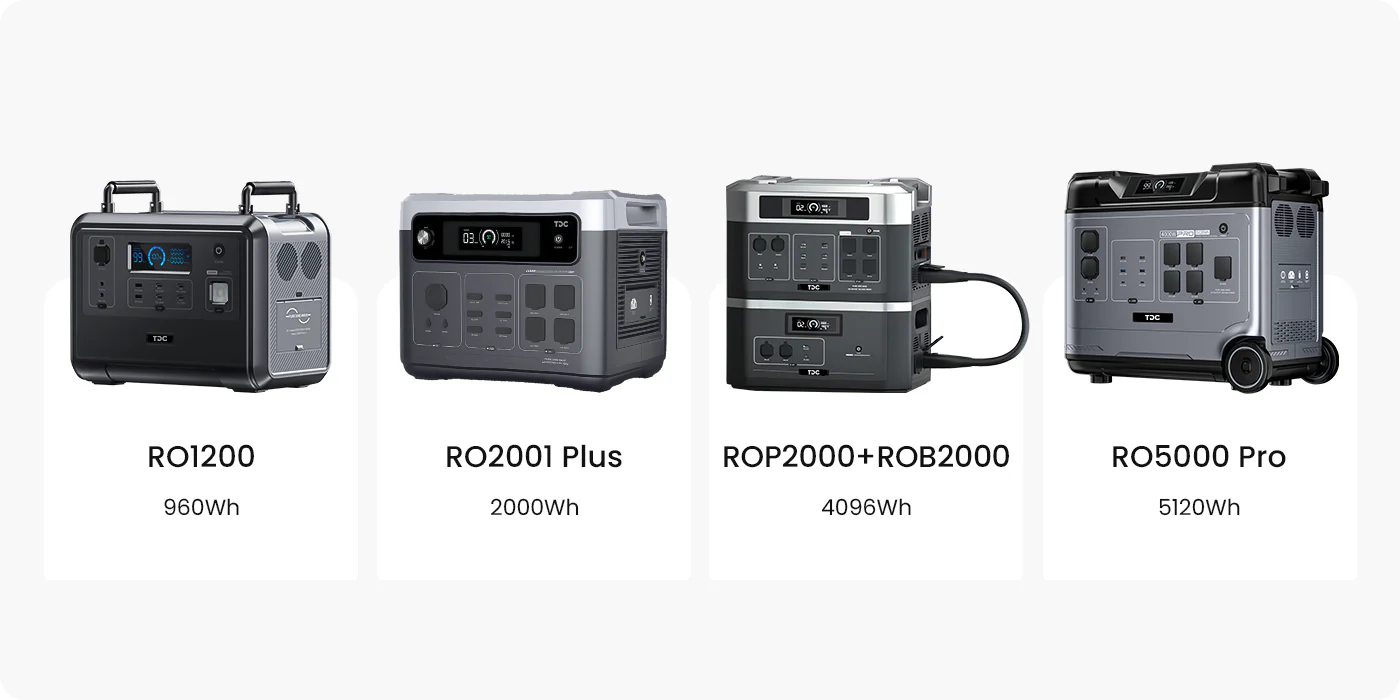

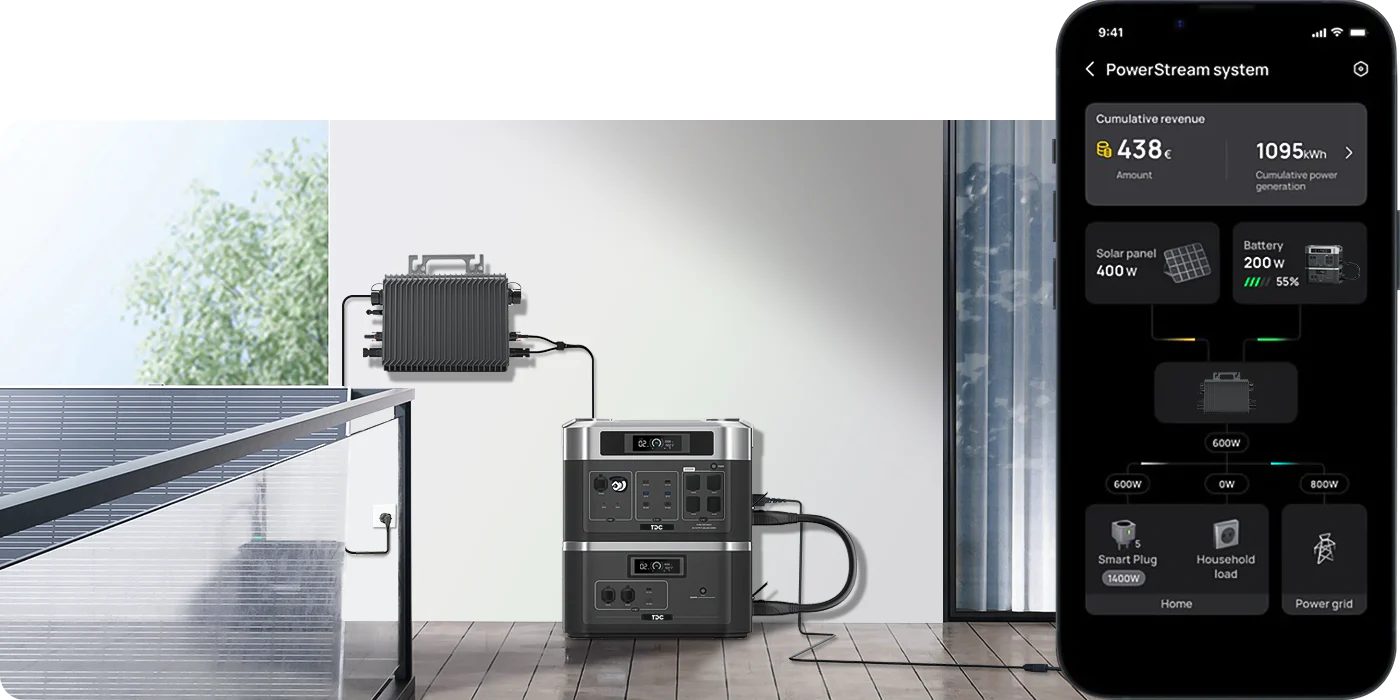

    Works with All TDC Portable Power Stations
    Real-time Monitoring


    Track the solar energy captured and the money saved while getting a clear picture of your energy usage.

    Remote Control of Appliances


    Turn on or off the connected devices with a click on the app. And you can schedule them to auto-start working on chores even when you're not at home.

    Automatic Energy Allocation


    Smart Plugs monitor appliances' energy consumption in real time, so the microinverter can allocate just the right amount of electricity to each appliance,

    and the surplus to a portable power station. During peak hours, it prioritises home use. And most of the energy gets stored in off-peak times.

    Model RM800
    PV Input (DC)
    Quantity of Input MC4 Connectors 2 Sets
    MPPT Voltage Range 28 ~ 55V
    Operating Voltage Range 18 ~ 55V
    Max.Input Voltage 52V
    Start-up Voltage 18V
    Max Input Current 14A
    AC Output
    Nominal Grid Voltage 230V (Single-phase)
    Rated Output Power 750W
    Maximum Output Power 800W
    Rated Output Current 3.47A
    Rated Output Voltage 230V
    Voltage Range 180 ~ 264V
    Rated Output Frequency 50/60Hz
    Output Frequency Range 50Hz: 47.5 ~ 50.5, 60Hz: 58.9 ~ 61.9
    Power Factor >0.99
    THD <5%
    Efficiency
    Peak Efficiency 95%
    Max. Transfer Efficiency 95%
    CEC 95%
    Self-consumption at Night <80mW
    General Data
    Operating Temperature Range -40℃ ~ +65℃
    Protection Level IP67
    Cooling Method Natural Cooling
    Communication Method WiFi / 2.4G
    Product Dimensions (LxWxH) 227 x 195 x 42mm
    Product Weight 2.5kg
    Certification
    Certification VDE: VDE-AR-N4105, CE-LVD: EN62109-1, 62109-2, Rohs: IEC62321
