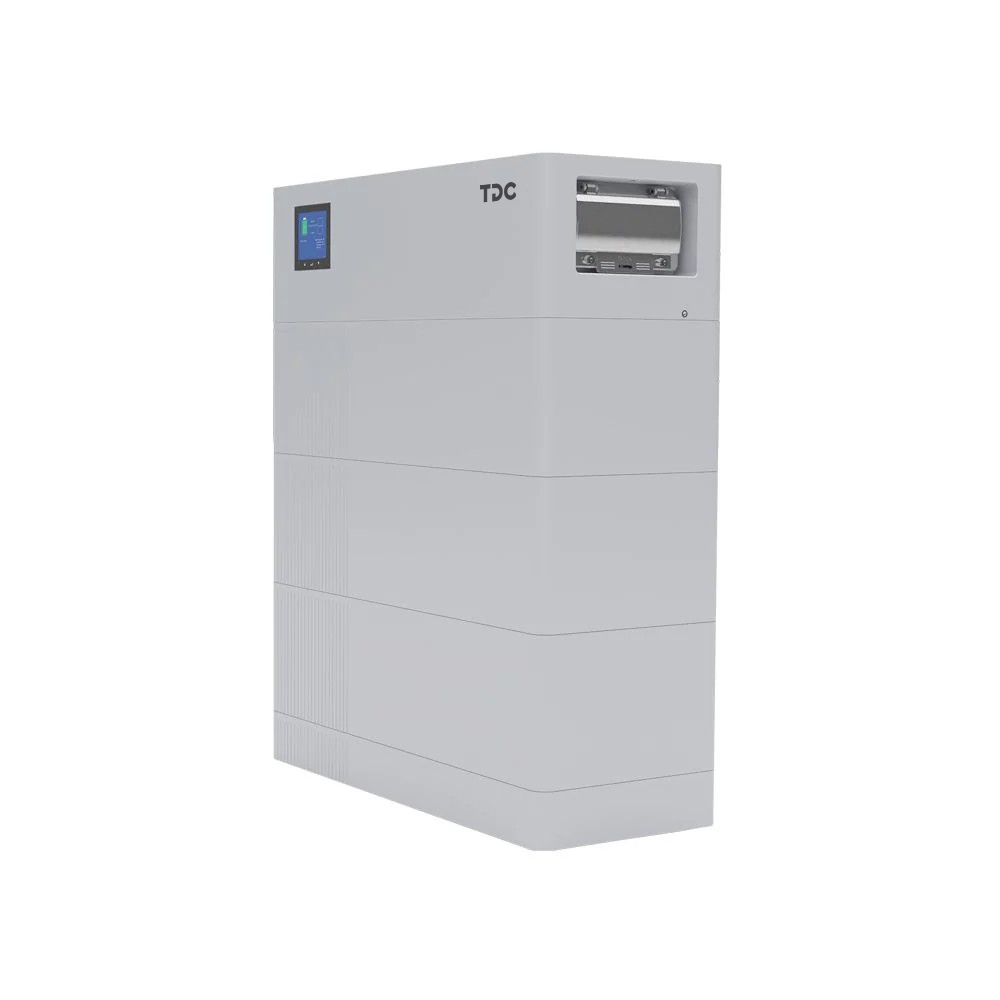

RB Energy Stacked Energy Storage | 9-26kWh
RB Energy Stacked Energy Storage | 9-26kWh
RB Energy Stacked Energy Storage | 9-26kWh
RB Energy Stacked Energy Storage | 9-26kWh
RB Energy Stacked Energy Storage | 9-26kWh
RB Energy Stacked Energy Storage | 9-26kWh
RB Energy Stacked Energy Storage | 9-26kWh
RB Energy Stacked Energy Storage | 9-26kWh
    ecom-no-replace-SLJMUx8mHTrevews-1
    20 reviews

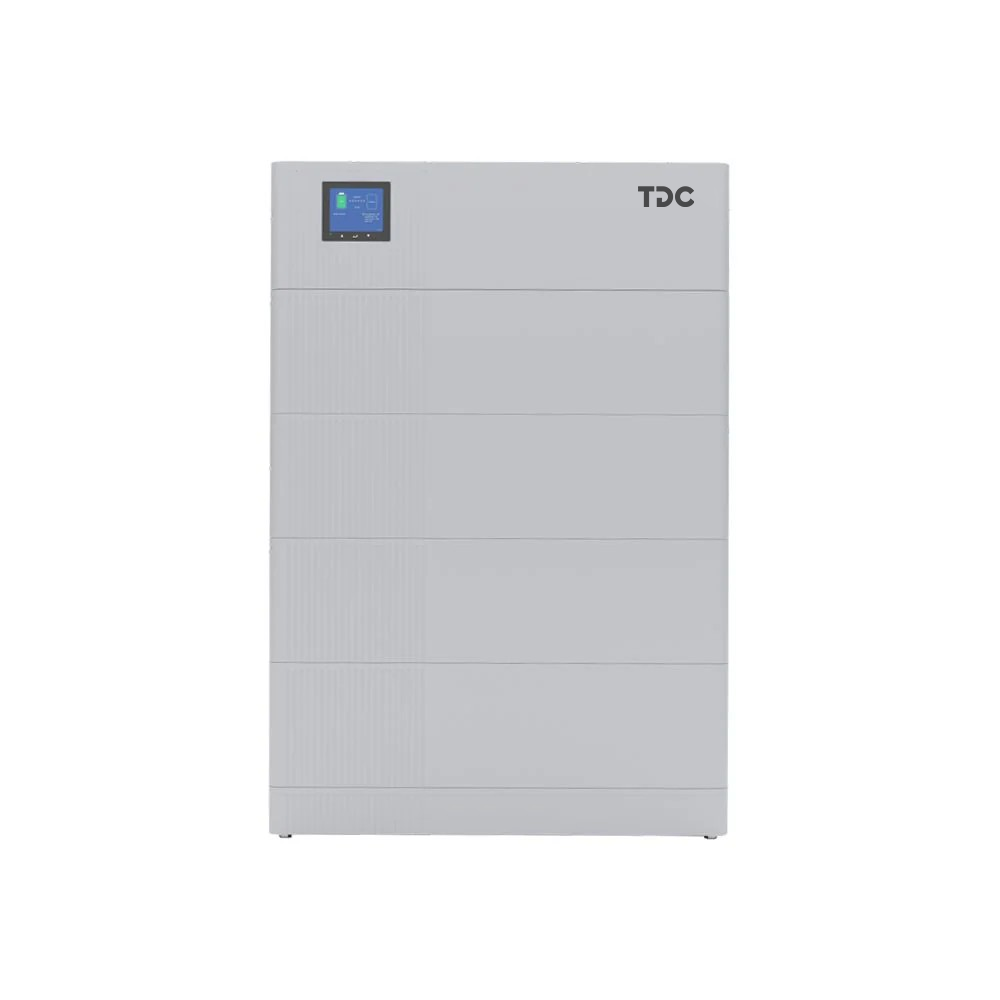

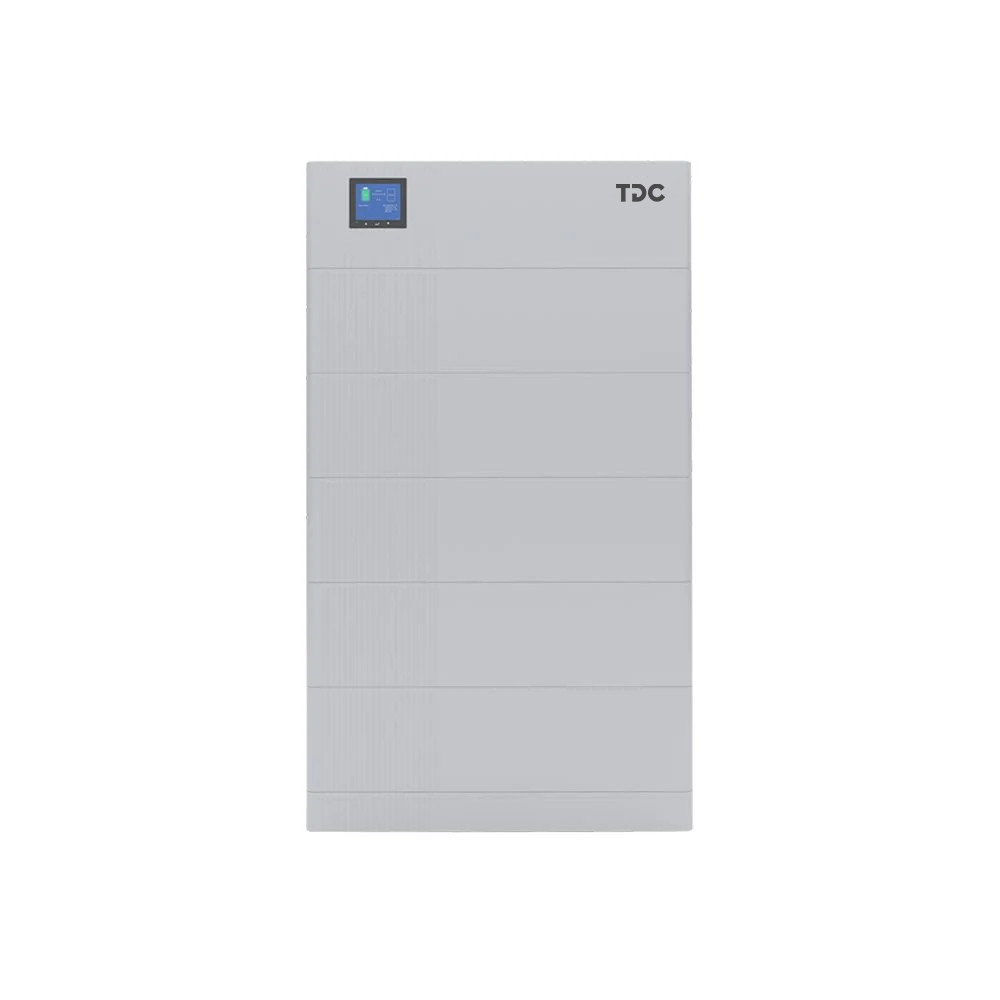

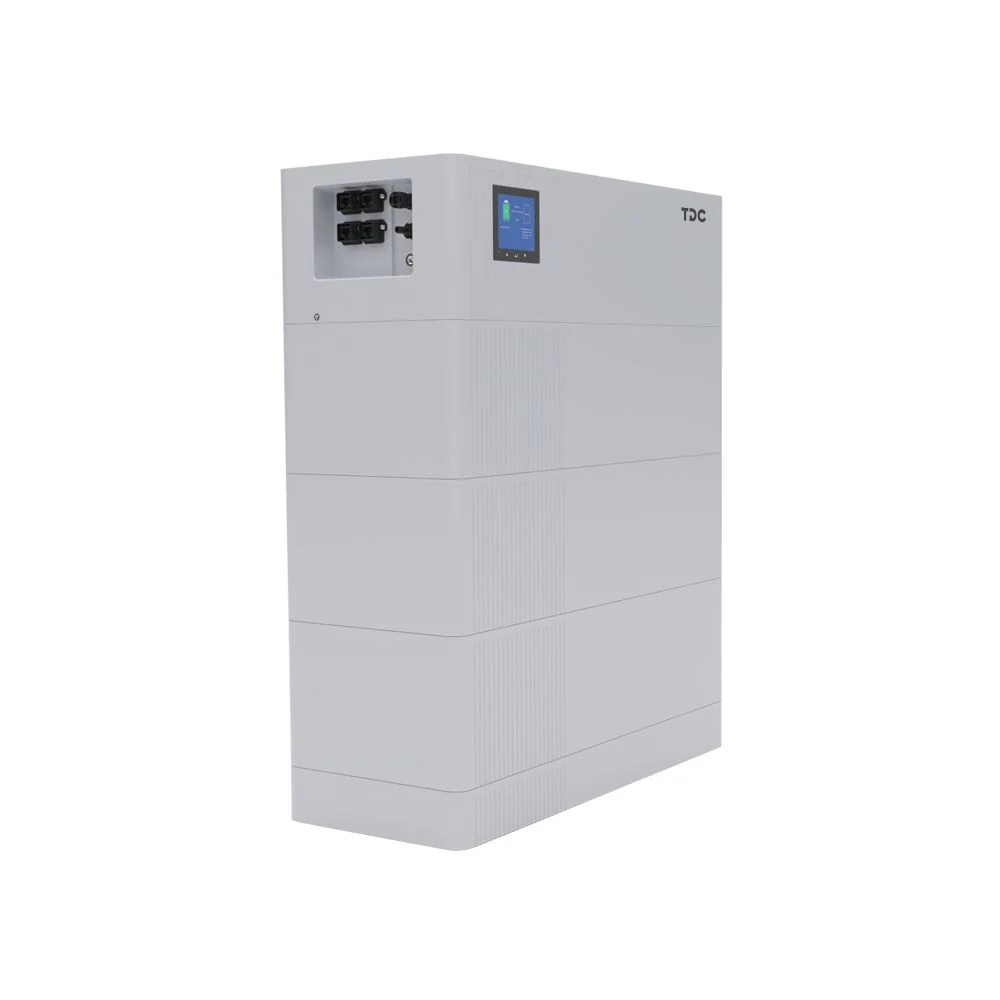

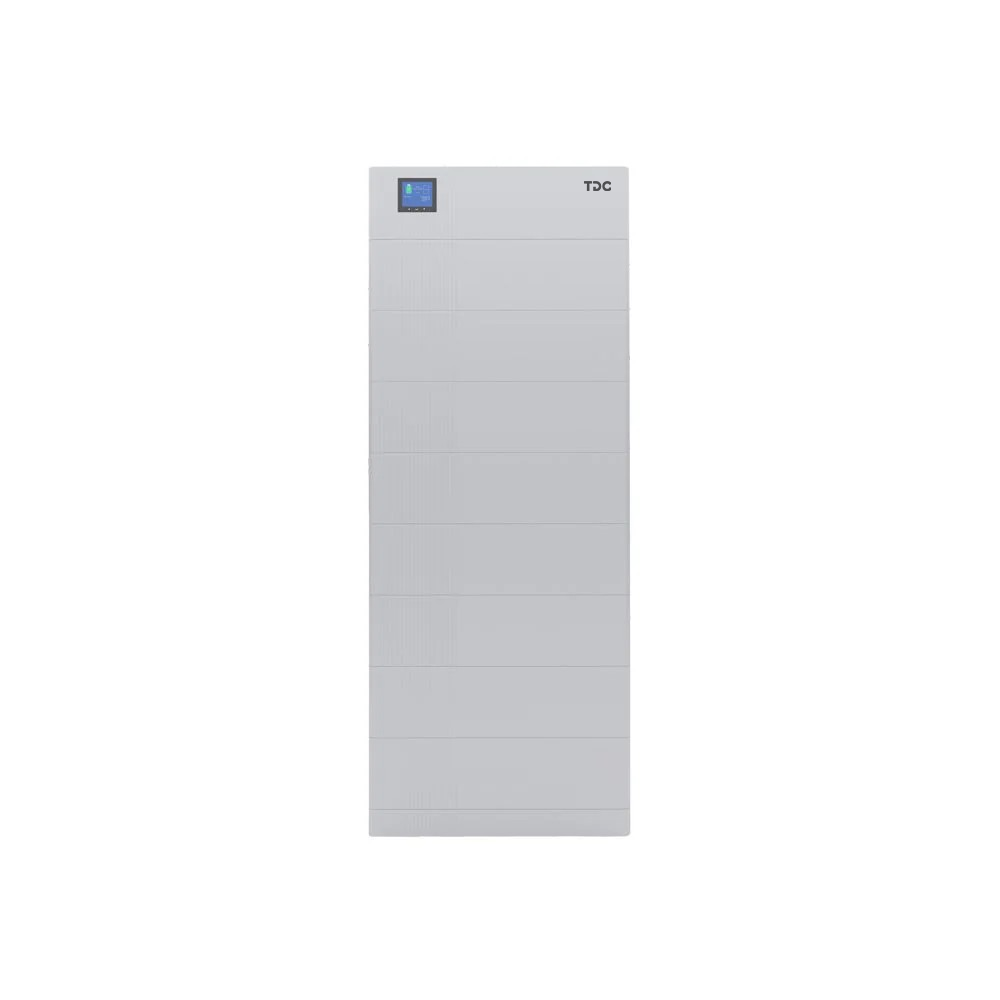

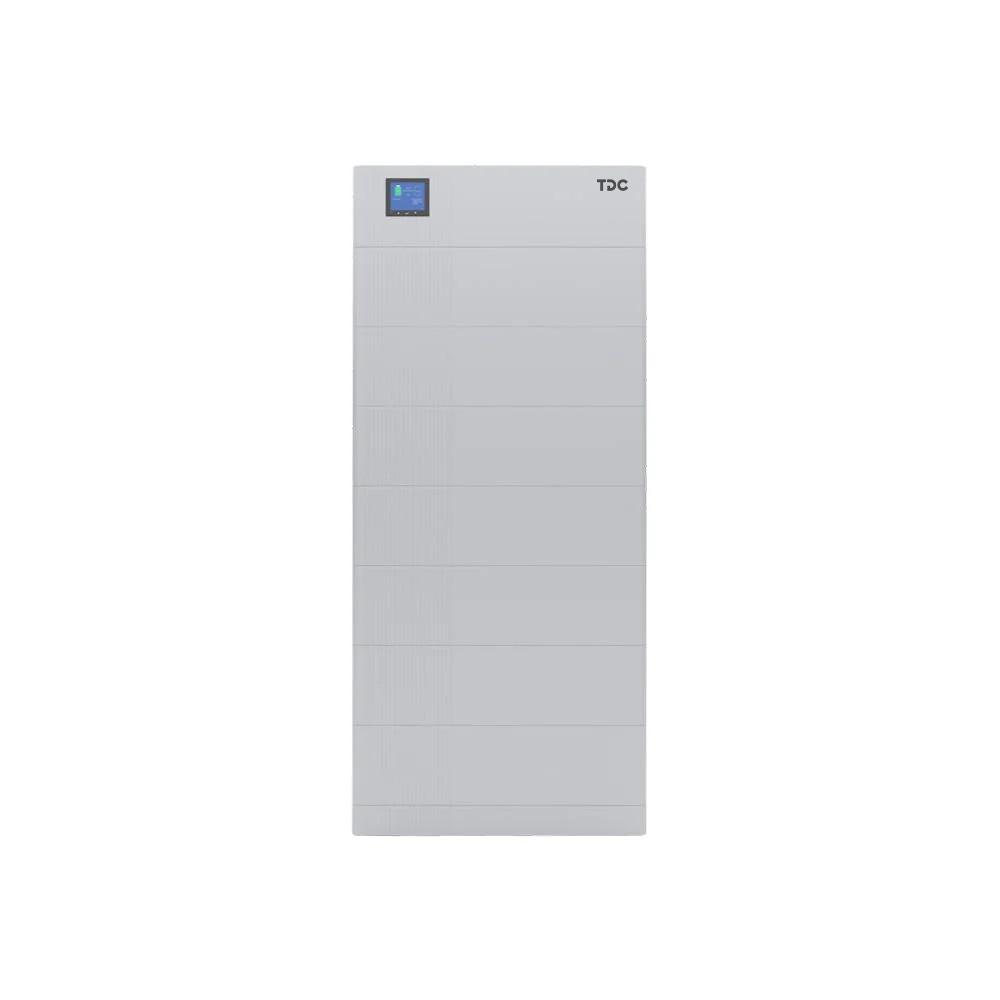

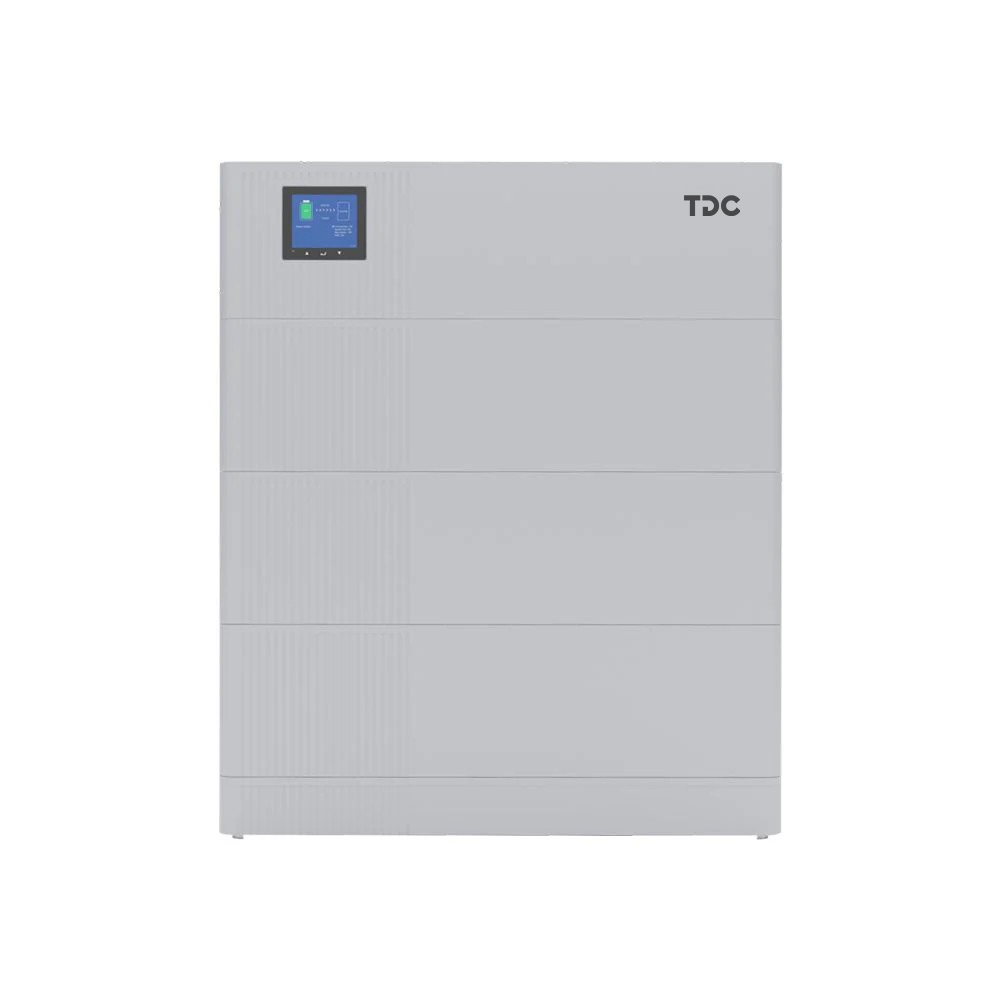

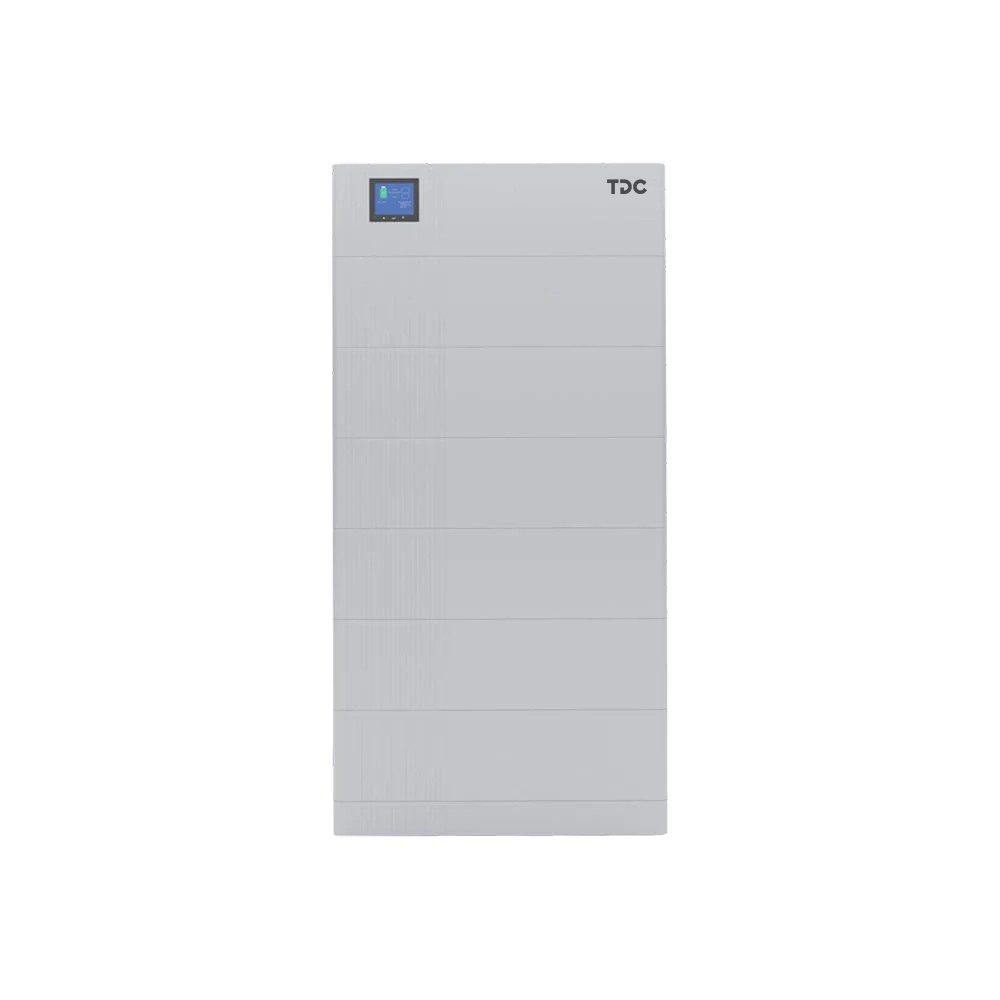

    RB Energy Stacked Energy Storage | 9-26kWh

    $2,999.00
    $3,999.00
    Capacity
    • 9.6kWh
    • 12.8kWh
    • 16kWh
    • 19.2kWh
    • 22.4kWh
    • 25.6kWh
    • Original BYD LiFePO4 cells, super safety.
    • Achieved peak efficiency of 96%.
    • Automatic inverter configuration (set-up free).
    • Automatic battery system configuration (set-up free).
    • Stackable design, easy installation, up to 6 towers in parallel.
    • 10 years warranty, 20+ years life design.
    Guaranteed safe checkout
    ecom-no-replace-aSLjKik1k3trust-dron

    • Fast-Delivery Guarantee

    • 1% Credit Reward

    • 14-Day Returns

    • Highly Recommended

    MEC 7-22kW AC EV ChargerMEC 7-22kW AC EV Charger

    MEC 7-22kW AC EV Charger

    $399.00
    Details
    FLY 7-22kW AC EV ChargerFLY 7-22kW AC EV Charger

    FLY 7-22kW AC EV Charger

    $299.00
    Details
    RAC 7-22kW AC EV ChargerRAC 7-22kW AC EV Charger

    RAC 7-22kW AC EV Charger

    $459.00
    Details
    Stackable Design
    Equipped with intelligent monitoring and operation and maintenance features, Real-time data tracking and automated diagnostics help you manage and maintain the system efficiently.
    Easy Installation
    Designed for easy installation, its user-friendly design reduces complexity and time, making it accessible for both professionals and DIY enthusiasts.
    Intelligent Monitoring
    Features a stackable design, allowing you to easily expand your storage capacity. This modular approach provides a flexible and scalable solution.

    Descriptions

    Specifications

    Discover the RB ENERGY Highlights

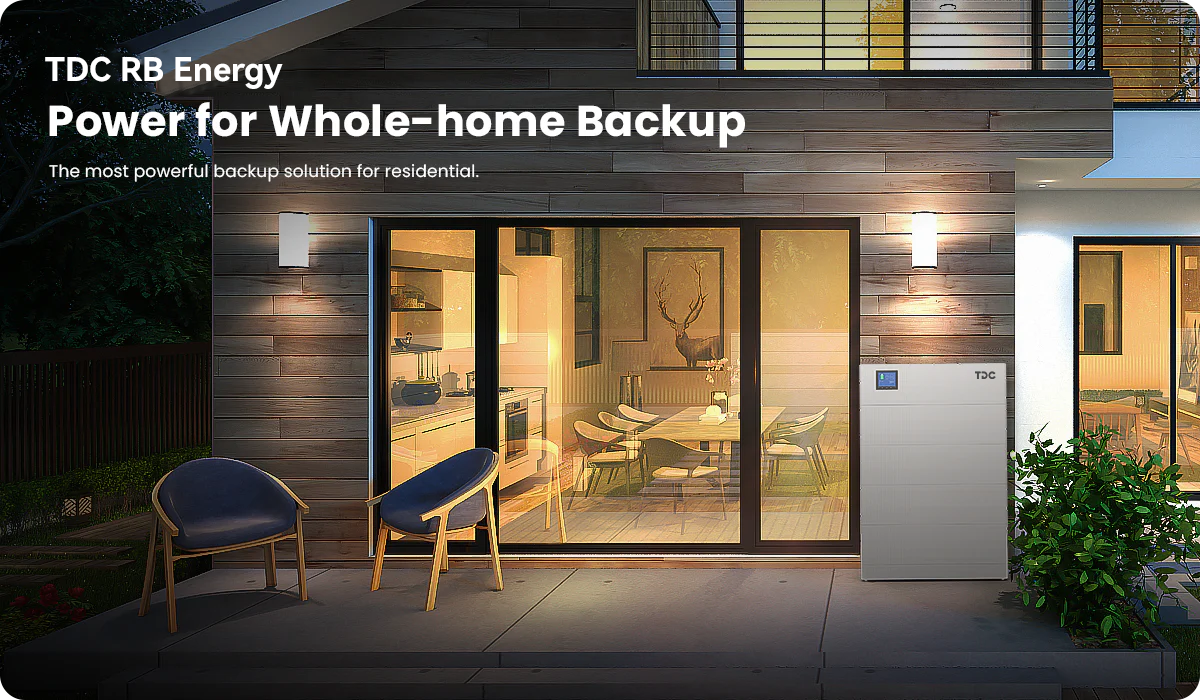

    Whole-home Power Backup

    RB Energy Storage System help you stay powered during outages.
    During short-term blackouts, it delivers high-power output and capacity, so you can live life normally.
    For multi-day outages, solar panels recharge RB Energy for 24/7 continuous power.

    Cost Savings

    RB Energy helps you save money on your power bill in 3 ways.
    The system stores your solar power, so you can use it anytime, even at night.
    When electricity prices are low, the system charges. When electricity prices are high, you use stored energy.
    Sell power back to the grid for profit, especially at night. That's when electricity prices are at their highest.

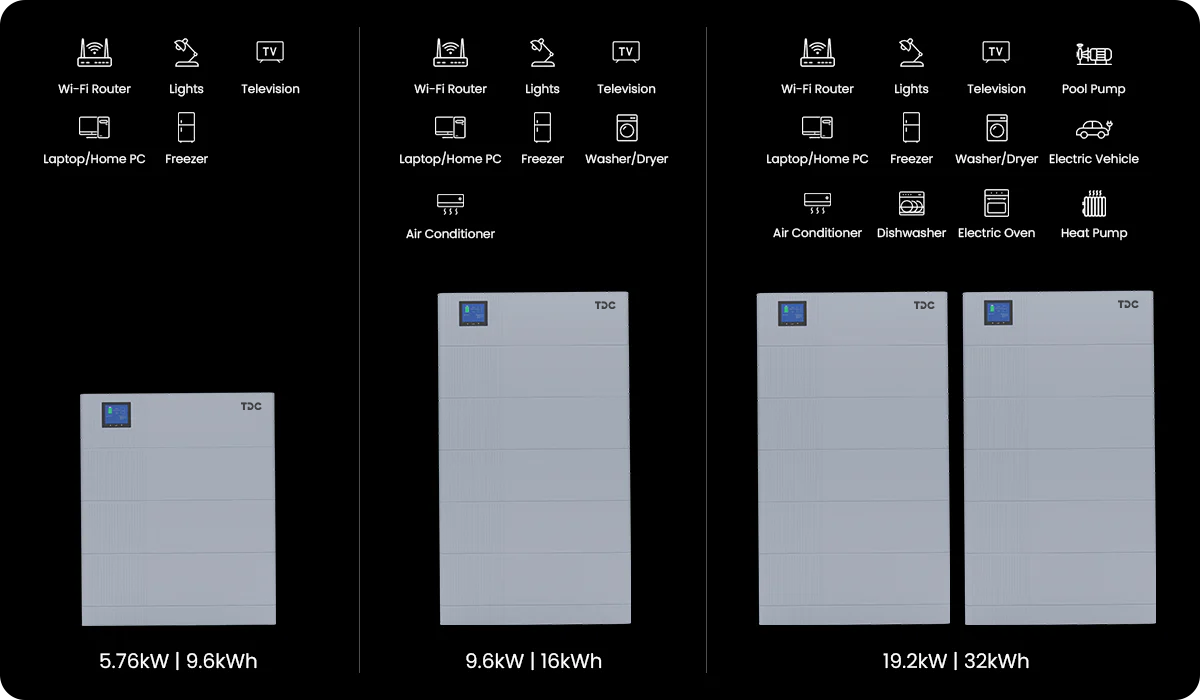

    Energy Customized to Your Needs

    Scale power from 9kWh to 153kWh or 5kW to 15kW to perfectly match your needs with RB Energy.
    No matter how much power or backup capacity you need.

    Manage and Control in One Click

    The TDC APP gives you real-time data to monitor home power generation and consumption wherever you are. It also delivers detailed stats about your energy usage, and then analyzes it by day, week, month, or year, so you can optimize your power usage in the future.

    Boost Performance with BMS

    Our state-of-the-art LFP tech and advanced battery management system (BMS) regulates vital data, ensuring the safety, longevity, and high performance of RB Energy.

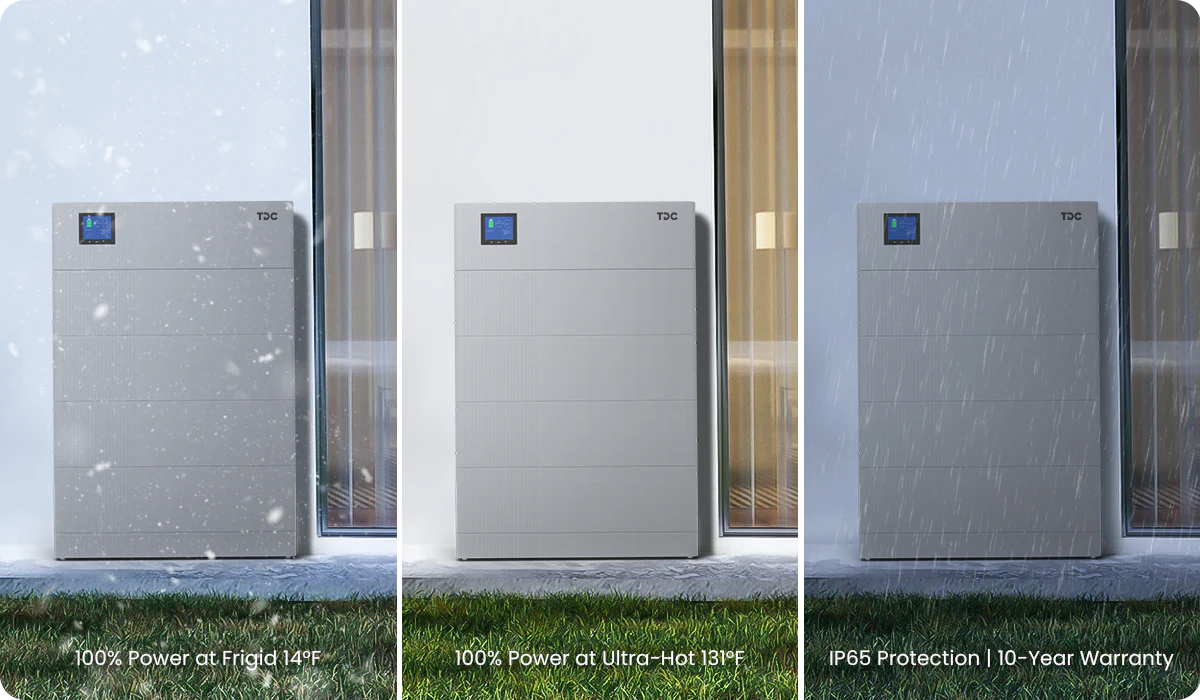

    Power Up with Extreme Toughness

    Outages can be particularly brutal in the winter and summer. RB Energy is equipped to endure the extreme chill and heat with its superior build for peak performance.

    Model RB-Energy-9 RB-Energy-12 RB-Energy-16 RB-Energy-19 RB-Energy-22 RB-Energy-25
    General Specifications
    Number of Stacks 3 4 5 6 7 8
    System Energy 9.9kWh 13.2kWh 16.5kWh 19.8kWh 23.1kWh 26.4kWh
    Usable Energy 9.6kWh 12.8kWh 16.0kWh 19.2kWh 22.4kWh 25.6kWh
    Max Output Current 30A 30A 30A 30A 30A 30A
    Peak Output Current 50A (5s) 50A (5s) 50A (5s) 50A (5s) 50A (5s) 50A (5s)
    Nominal Voltage 192V 256V 320V 384V 448V 512V
    Operating Voltage Range 162~219V 216~292V 270~365V 324~438V 378~511V 432~584V
    Scalability Up to 6 Towers in Parallel (From 9.6kWh to 153.6kWh)
    Dimensions (HxWxD) 800x650x260 mm 975x650x260 mm 1150x650x260 mm 1325x650x260 mm 1500x650x260 mm 1675x650x260 mm
    Weight 129.5kg 166kg 202.5kg 239kg 275.5kg 312kg
    Operation Temperature -10~55 ºC
    Protection Rating IP65
    Round-trip Efficiency ≥ 96 %
    Certification & Compliance VDE2510-50 / IEC62619 / CEC / CE / UN38.3
    Applications ON Grid / ON Grid Backup / OFF Grid
    Warranty 10 Years
    BMS Specifications
    Operating Voltage Range 120~600V
    Max Output Current 30A
    Peak Output Current 50A (5s)
    Communication CAN2.0 / RS485
    Dimensions (HxWxD) 175x650x260mm
    Weight ≤ 20kg
    Cell Specifications
    Battery Cell Technology LiFePO4
    Operation Temperature -10~55 °C
    System Energy 3.3kWh
    Usable Energy 3.2kWh
    Nominal Voltage 64V
    Operating Voltage Range 54~73V
    Max Output Current 30A
    Peak Output Current 50A (5s)
    Dimensions (HxWxD) 175x650x260mm
    Weight ≤ 36.5kg
