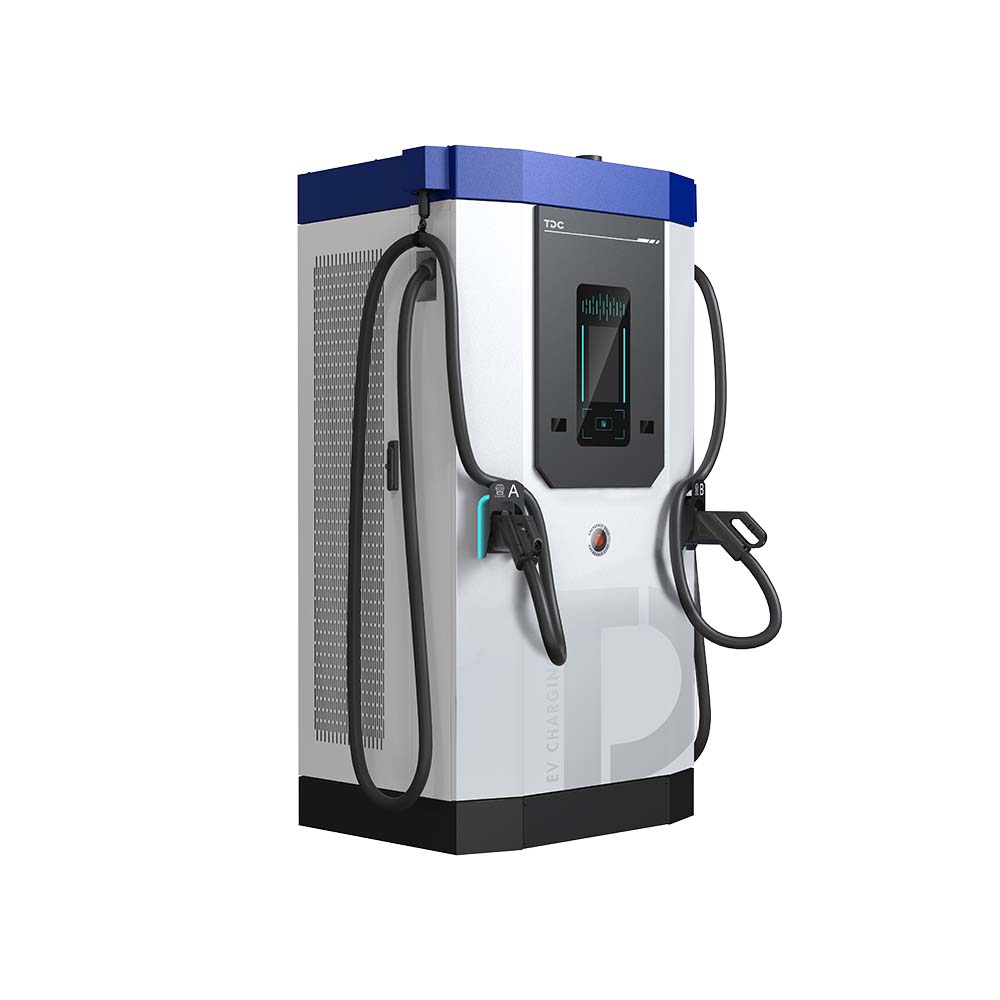

    PDM 240kW DC EV Charger

    $49,999.00
    Guaranteed safe checkout
    ecom-no-replace-aSLjKik1k3trust-dron

    • Fast-Delivery Guarantee

    • 1% Credit Reward

    • 14-Day Returns

    • Highly Recommended

    MEC 7-22kW AC EV ChargerMEC 7-22kW AC EV Charger

    MEC 7-22kW AC EV Charger

    $399.00
    Details
    FLY 7-22kW AC EV ChargerFLY 7-22kW AC EV Charger

    FLY 7-22kW AC EV Charger

    $299.00
    Details
    RAC 7-22kW AC EV ChargerRAC 7-22kW AC EV Charger

    RAC 7-22kW AC EV Charger

    $459.00
    Details
    High Efficiency & Double Gun
    240kW high power output with double gun, PDM ensures rapid and efficient charging for a wide ranges of EVs, making it an ideal choice for businesses, and public charging stations.
    IP55&IK08 High Protection
    Designed to endure tough conditions with its IP55 and IK08 ratings. Its sturdy design offers excellent protection against dust, water, and physical impact, ensuring reliable performance and durability in demanding indoor and outdoor environments.
    Fast Charging in 1h
    Boasts a rapid charging capability, fully recharging in just 1 hour. This feature is perfect for quick power-ups during outdoor adventures or emergency situations, ensuring that your devices are ready to use in no time.

    Descriptions

    Specifications

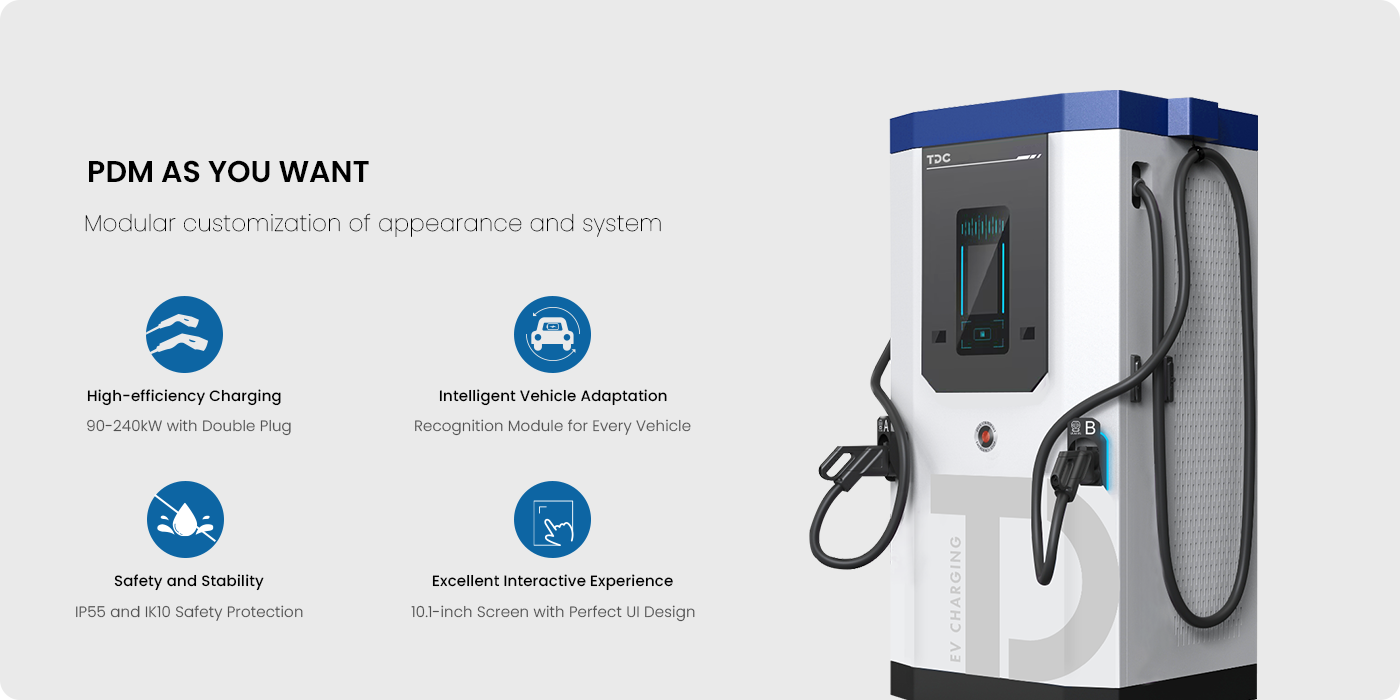

    Customized Appearance and System Modules for Your Business

    Customize the appearance of your PDM charging station freely and arbitrarily.

    The TDC PDM charger system can also be modularly designed for yor unique business needs.

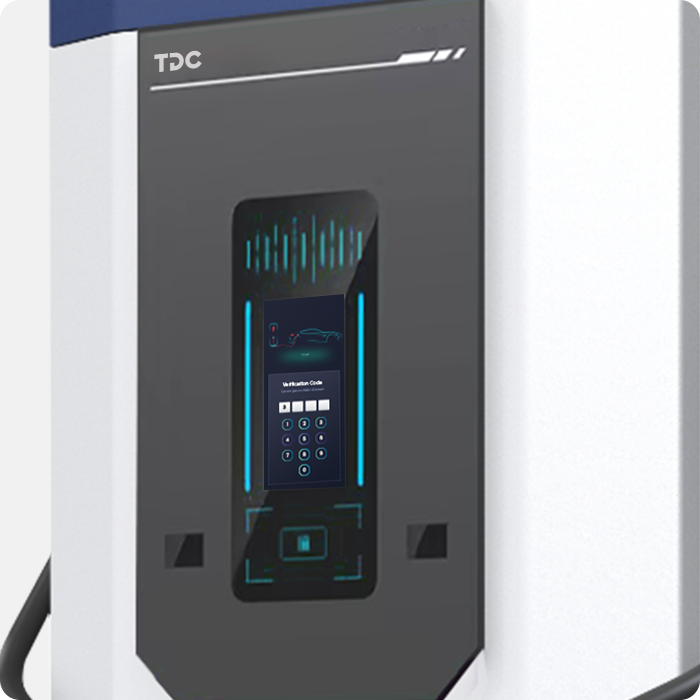

    10.1-Inch Screen Provides an Excellent Interaction Experience

    TDC PDM Charger has a high-quality 10.1-inch large screen and accessible UI interface, allowing you to experience the most advanced and intelligent human-machine interaction while charging.

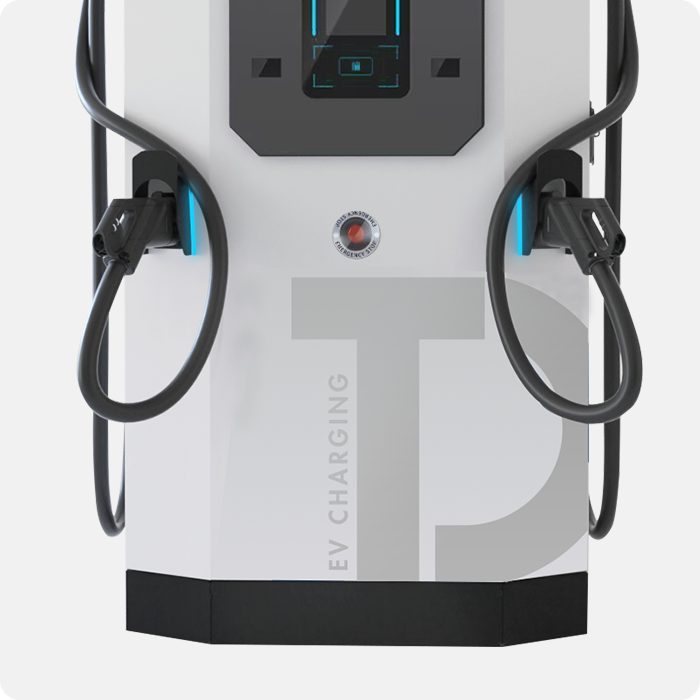

    Fast Charging Solutions to Ease charging Congestion

    The PDM Charger has two CCS2 cables for highly efficient charging from 90-240kWh.In addition, it's integrated design enables PDM charger to be installed quickly and easily anywere without requiring extensive modifications to the infrastructure.

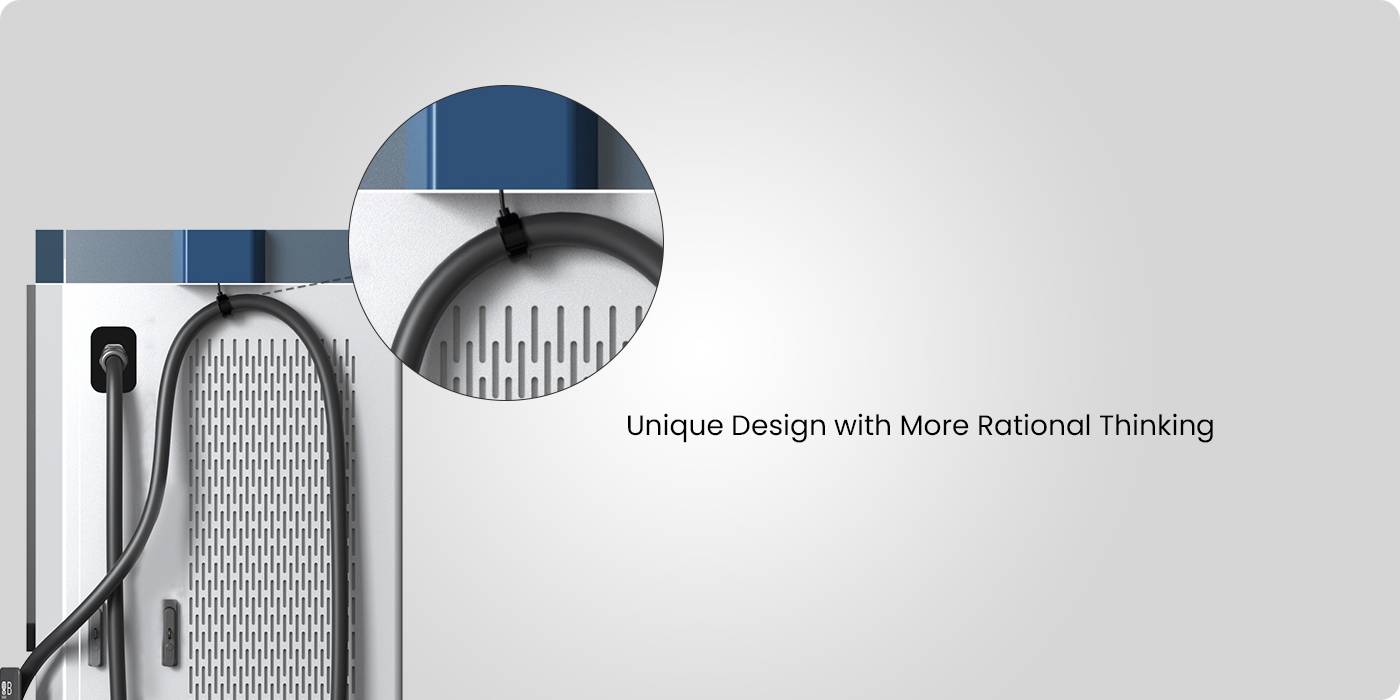

    Humanized Design with More Labor-saving and Economic Benefits

    After extensive research and considering the scope of the applicable population,

    TDC added hooks on both sides of the PDM Charger when designing the PDM charger.

    The hook not only makes it easier for people to pull out the plug but also sotre the charging cable to avoid excessive wear if the cable,

    which effectively extends the service life of the charging cable and bring significant economic benefits

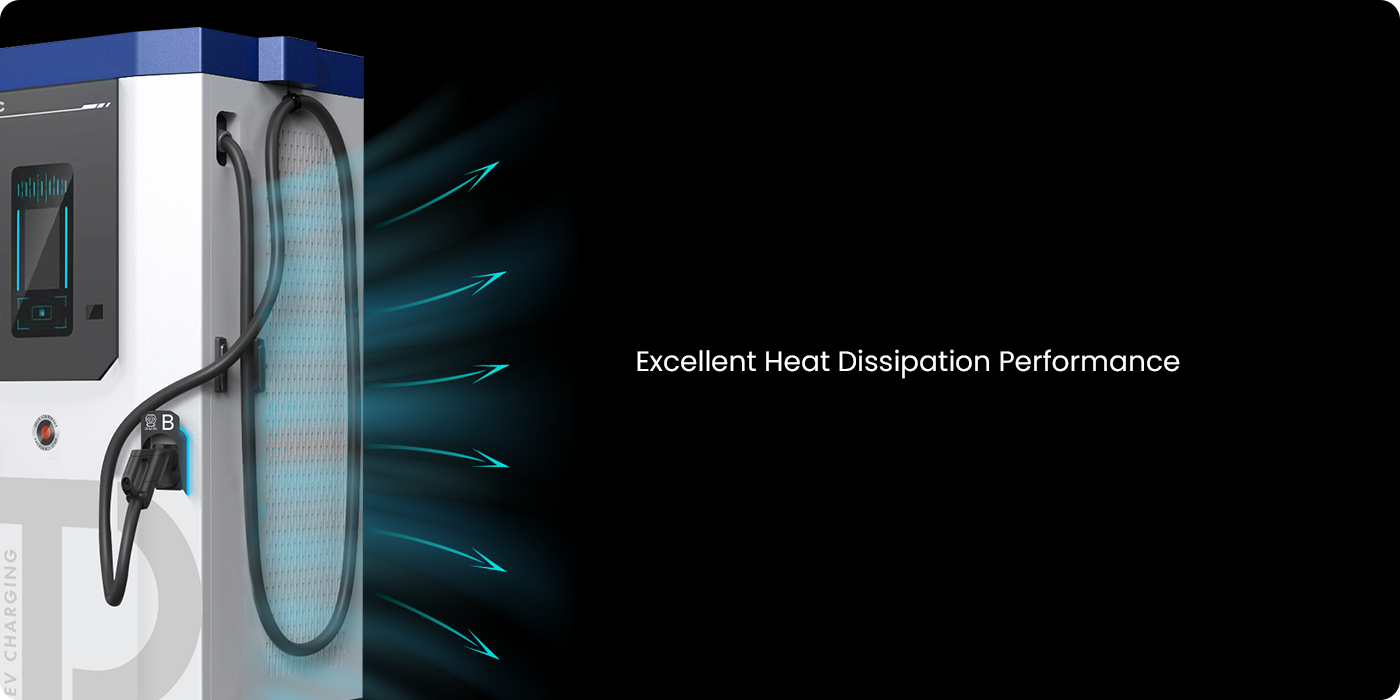

    Excellent Heat Dissipation Performance for Long Term Commericial Environment

    The unique double-sided porous heat dissipation structure effectively enhances heat dispersion and air circulation,

    ensuring that the PDM Charger maintains a stable temperature during high-load operation.

    This innovative design not only improves charging efficiency and battery life,

    but also reduces maintenance costs and operating risks,

    making it a reliable choice in long-term commercial environments.

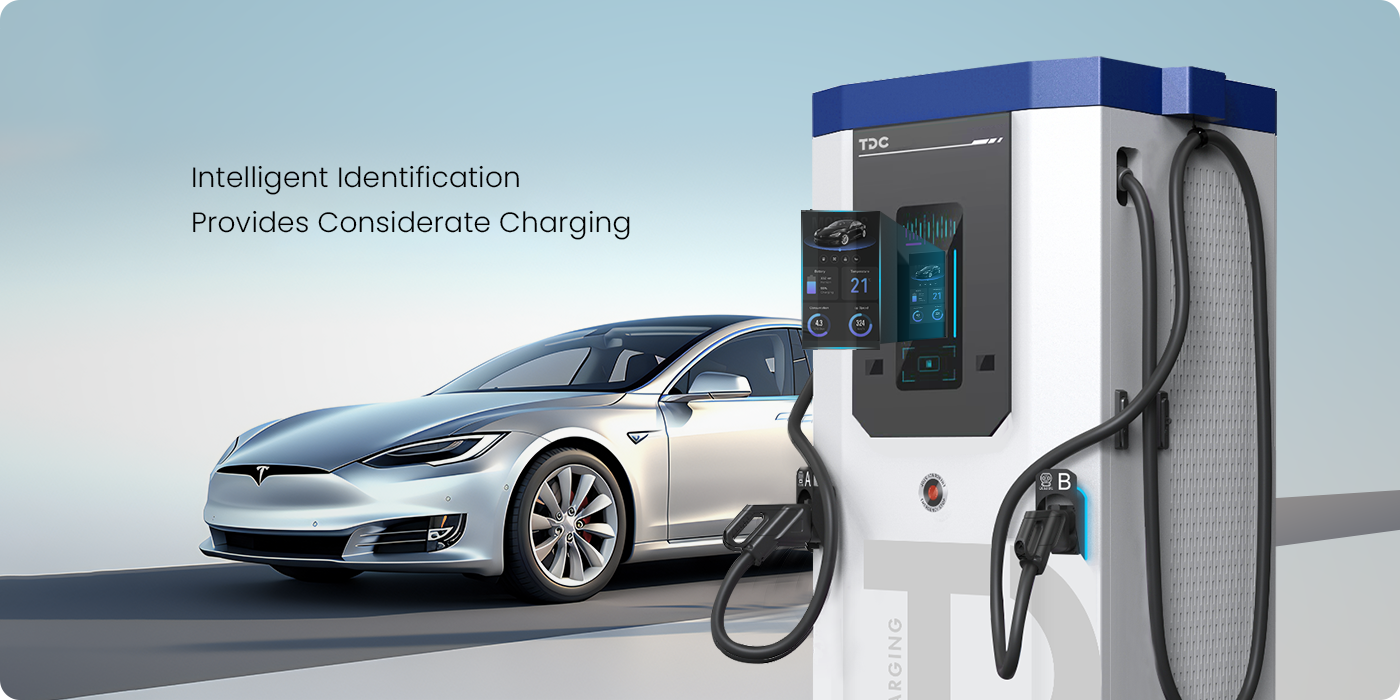

    Intelligent Module Identifies EVs Model and Provides the Best Charging Solution

    Advanced charging system can intelligently identify the model of Evs and provide the best charging solution based on the vehicle and current status,

    providing the most considerate service for each vehicle.

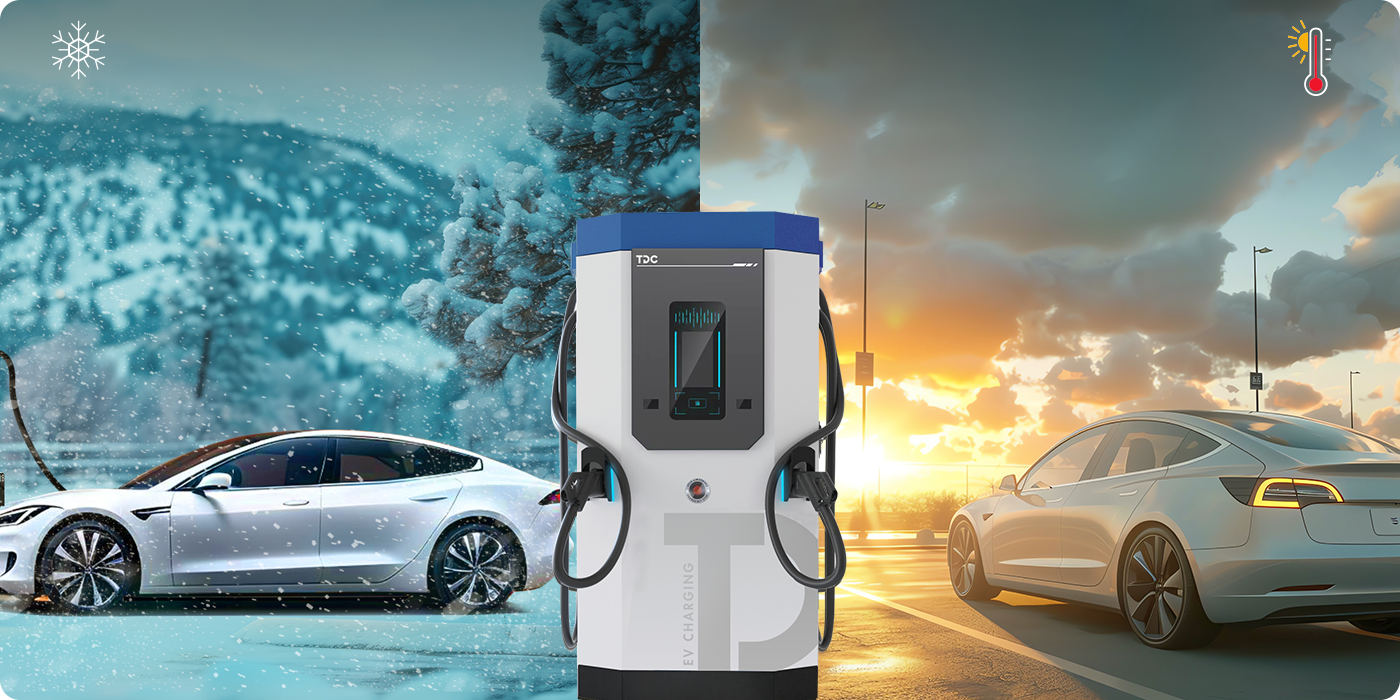

    High-level Reliable Protection for Various Harsh Environments

    The PDM Charger has multiple ultra-high safety protections and has passed IP55, IK10 and touch screen-specific IK08 safety tests,

    allowing PDM Charger to maintain safe and efficient charging in most harsh environments, providing an excellent charging experience.

    Model PDM90 PDM120 PDM180 PDM240
    Power Input
    Phases / Lines 3 Phase + Neutral + PE
    Voltage AC 400 V ± 10%
    Frequency 50/60Hz ± 5%
    Power Output
    Voltage DC 200 ~ 1000V
    Current Max. 250A Max. 250A*2 Max. 250A*2 Max. 250A*2
    Power Max. 90 kW Max. 120 kW Max. 180 kW Max. 240 kW
    Charger Way 30kW+60kW/90kW Single Gun Equipartition
    Communication
    Charger v.s. EV PLC (DIN 70121: 2014-12 / ISO15118)
    Communication Protocol OCPP 1.6-JSON
    Interface Ethernet / LTE
    System
    Cooling Mode Forced Air Cooling
    Installation Mode Floor-stand
    Charging Outlet CCS2 + CCS2
    Cable Length 5m
    HMI 10.1 inch Capacitive Touch Screen
    Payment Mode Mifare Card / QR Code
    Energy Meter CE Type (Mid/PTB Options)
    Efficiency > 94%
    Power Factor > 0.99 @ Full Load；> 0.98 @ Half Load
    Harmonics iTHD <5%
    Noise Level <75dB
    Enclosure Material Galvanized Steel
    Environmental Index
    Operating Temperature -30°C ~ +50 °C
    Working Humidity 5% ~ 95% without Condensation
    Working Altitude < 2000M
    Protection Grade IP55 IK10 (Screen IK08)
    Safety Protection
    Multiple Protection Over/Under Voltage Protection, Overload Protection, Short Circuit Protection, Over Temperature Protection, Grounding Protection, Surge Protection, etc.
    Certification CE
