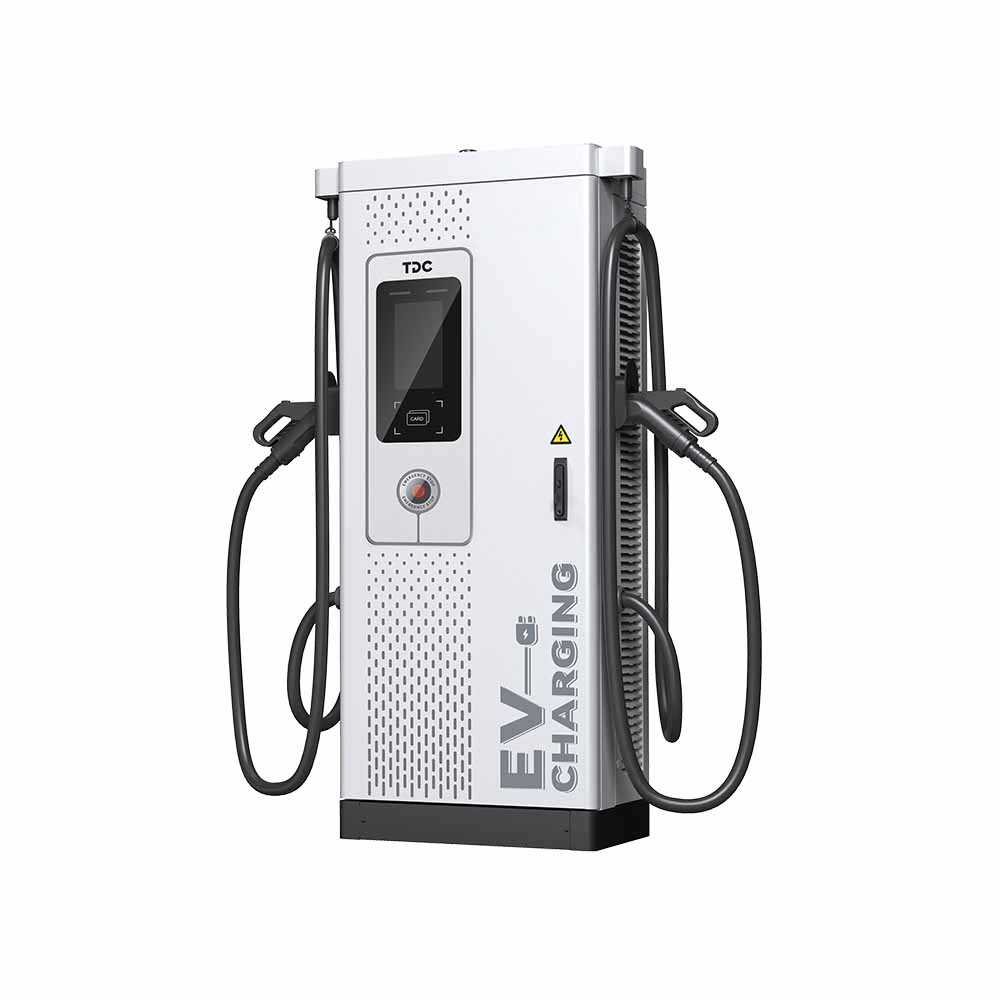

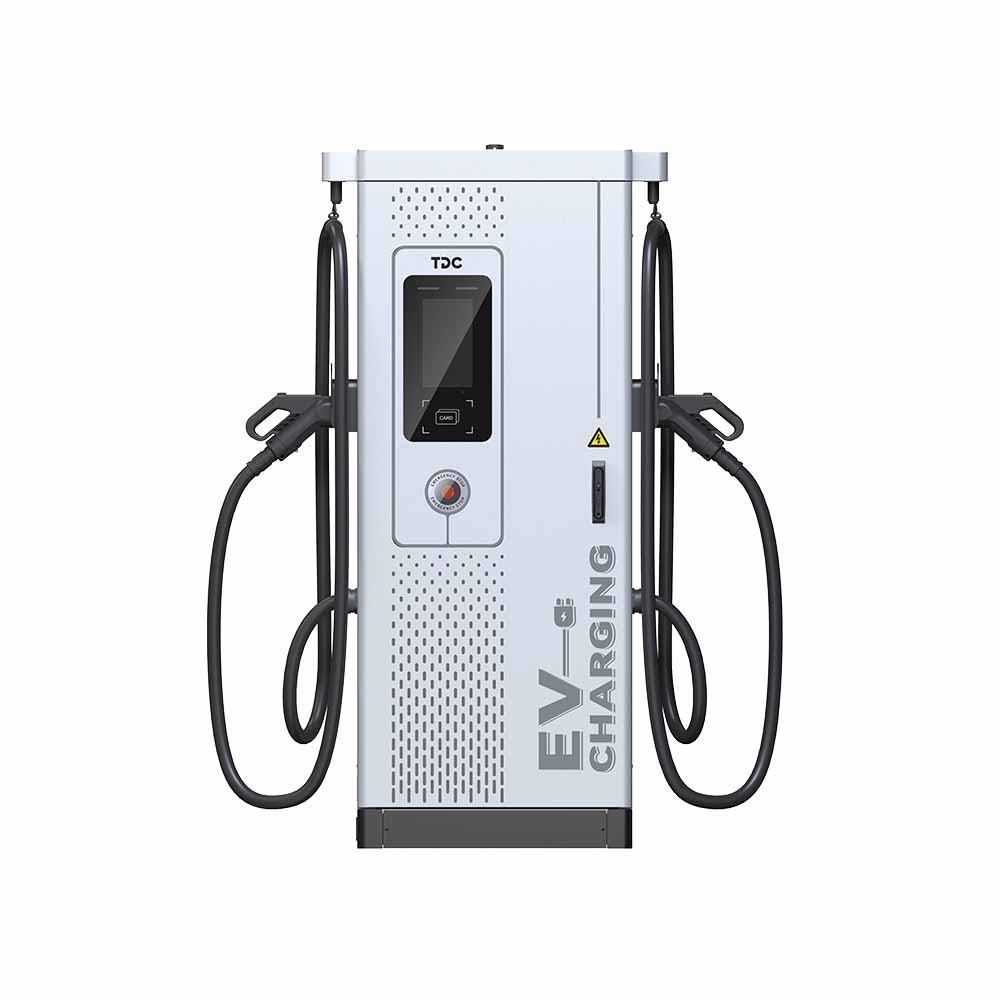

MEG 120kW Integrated DC EV Charger
MEG 120kW Integrated DC EV Charger
    ecom-no-replace-SLJMUx8mHTrevews-1
    20 reviews

    MEG 120kW Integrated DC EV Charger

    $10,800.00
    Guaranteed safe checkout
    ecom-no-replace-aSLjKik1k3trust-dron

    • Fast-Delivery Guarantee

    • 1% Credit Reward

    • 14-Day Returns

    • Highly Recommended

    MEC 7-22kW AC EV ChargerMEC 7-22kW AC EV Charger

    MEC 7-22kW AC EV Charger

    $399.00
    Details
    FLY 7-22kW AC EV ChargerFLY 7-22kW AC EV Charger

    FLY 7-22kW AC EV Charger

    $299.00
    Details
    RAC 7-22kW AC EV ChargerRAC 7-22kW AC EV Charger

    RAC 7-22kW AC EV Charger

    $459.00
    Details
    High Efficiency & Double Gun
    120kW high power output with double gun, MEG ensures rapid and efficient charging for a wide ranges of EVs, making it an ideal choice for businesses, and public charging stations.
    Integrated Iterative Design
    MEG's modular design allows for easy installation and future upgrades, ensuring that the system can be continually updated as the demand for electric vehicle infrastructure grows.
    Built-in Module Optimisation
    The MEG's new in-built power modules incorporate advanced DSP technology and control algorithms to maximise energy output efficiency for true energy savings and efficient use.

    Descriptions

    Specifications

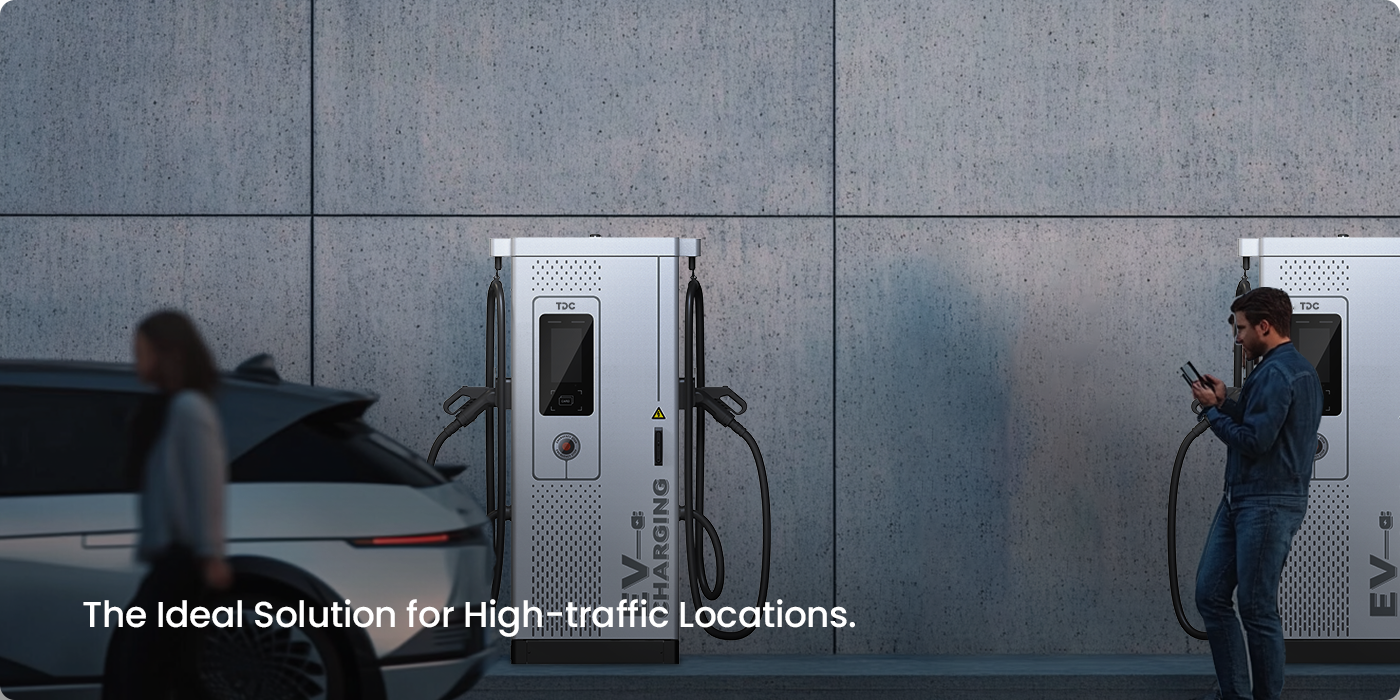

    Built for Heavy-duty Use


    The MEG 120kW DC charger is designed for high-volume areas, making it ideal for environments that require fast and reliable charging capabilities.

    It is also designed for exceptional reliability, ensuring uninterrupted continuous operation.

    Dual-port Efficient Charging


    The split power design allows two vehicles to be charged simultaneously without compromising on speed.

    With 120kW of power, your EV can be charged in record time, eliminating long waiting periods and allowing you to spend more time on the road.

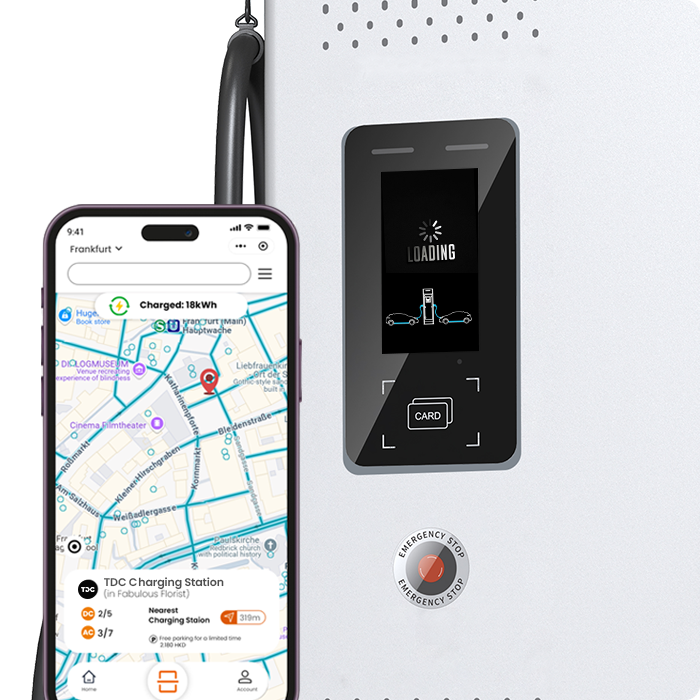

    Smart Charging and Intelligent System


    Intelligent features, including real-time monitoring and status updates, ensure users are informed and can optimise charging methods.

    The intelligent management system can reduce the prepare time spent on charging stations, providing operators a convenient and efficient experience.

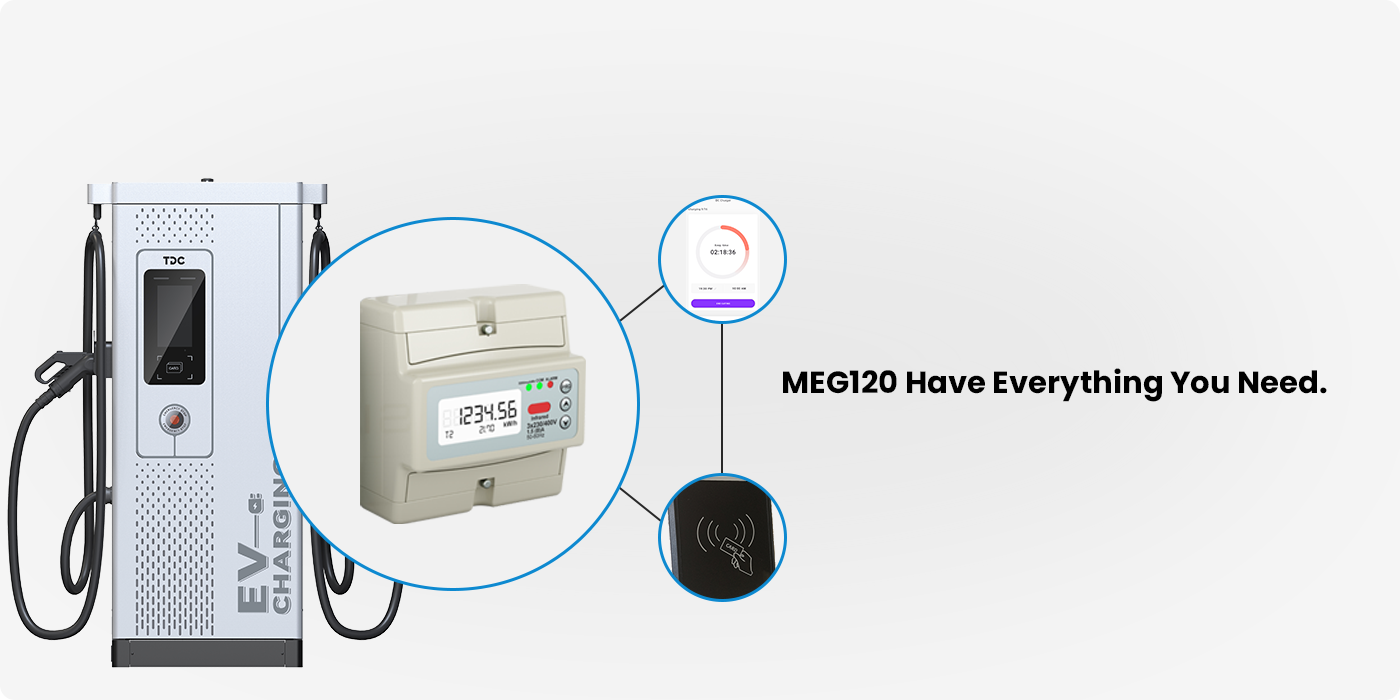

    Considerate Hardware Configurations


    Equipped with a Level 1.0 energy meter that calculates charging kWh in real time and monitors charging current and voltage,

    as well as other payment controls such as RFID readers to provide seamless identity verification for consumers

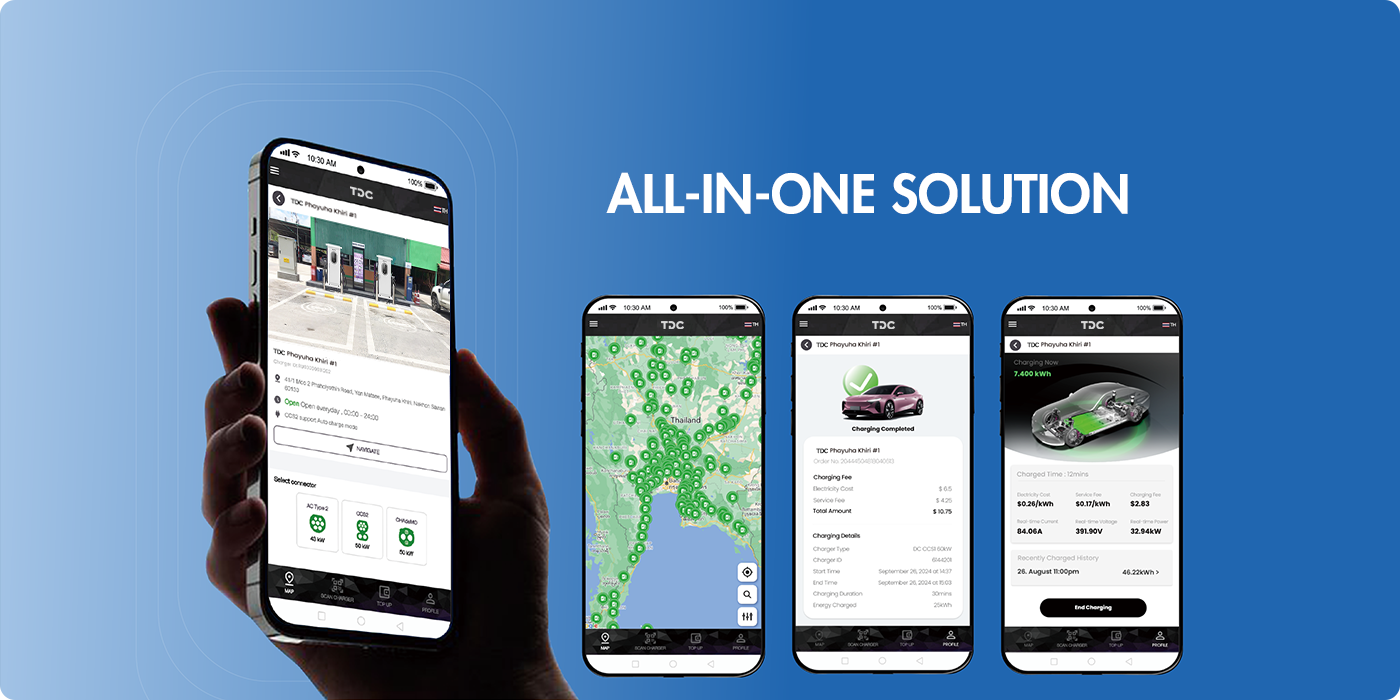

    TDC All-in-One Solution


    TDC provides a comprehensive DC charging station operations solution, offering a seamless and efficient experience for operators and end-users.

    Our services include bespoke hardware, cutting-edge software, after-sales service, technical maintenance and end-to-end solutions, etc.

    Unlimited Upgrade Possibilities


    With a modular design, the MEG is future-proofed and ready to update its hardware to be ready for the next generation of electric vehicles,

    updating rather than replacing, ensuring durability and relevance in a constantly evolving marketplace

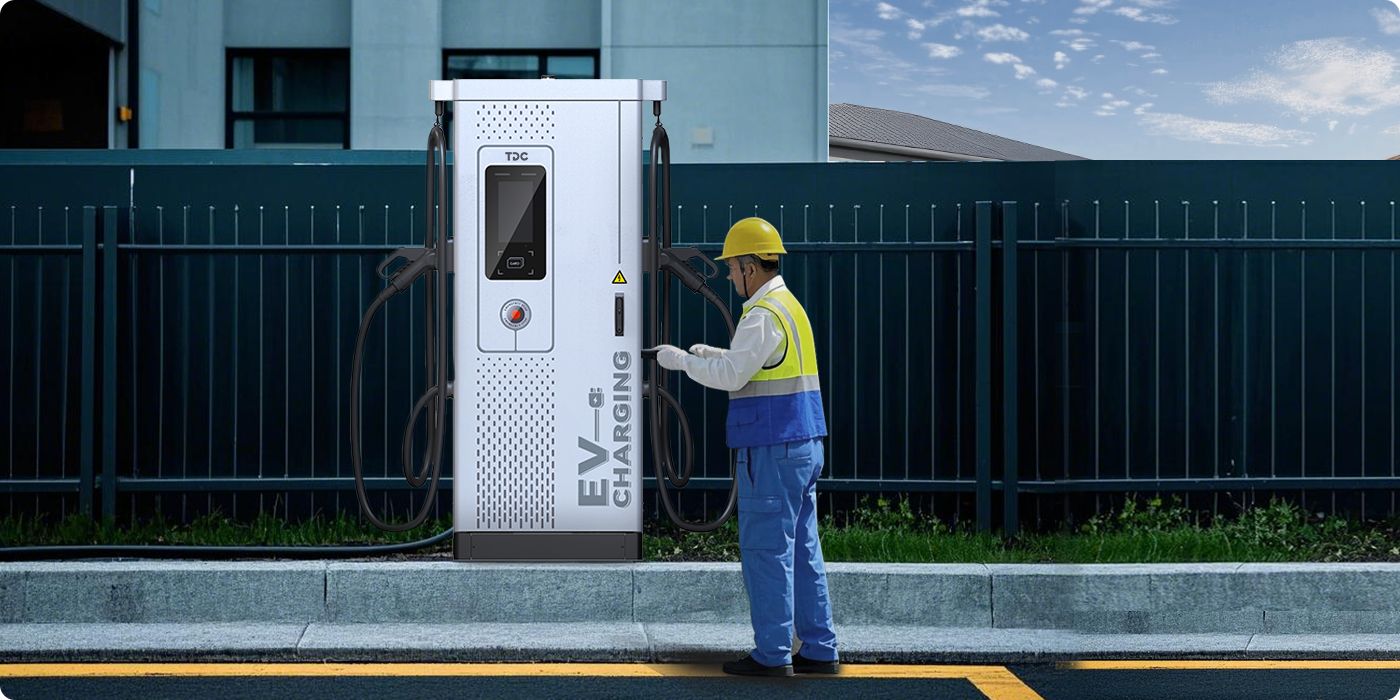

    Flexible Installation Options


    Optimised for installation, the charger can be installed in a variety of environments, including public spaces,

    retail environments or corporate fleets, with minimal space requirements, making it environmentally friendly.

    Model MEG120
    Electrical Features
    Rated Power 120kW
    Input Voltage 400Vac ± 10%; 3P + N + PE
    Max. Input Current 230A
    Input Frequency 50 ± 1Hz
    Output Voltage Range 200 ~ 1000Vdc
    Max. Output Current 250A
    Power Factor > 0.99 @ Full Load；> 0.98 @ Half Load
    Efficiency ≥ 94%
    Harmonic Distortion ≤ 5% (At Load >50%)
    Mechanical & Structural Features
    HMI 7-inch Capacitive Touch Screen
    Cooling Method Forced Air Cooling
    Installation Method Floor-stand
    Connector Type CCS2
    Cable Length 5m
    Payment Method Mifare Card / QR Code
    EMC CE Type (Mid / PTB Options)
    Acoustic Noise 65dB
    Enclosure Material Galvanized Steel
    Protection Features
    Protection Level IP54
    Protections Over/Under Voltage Protection, Overload Protection, Short Circuit Protection, Over Temperature Protection, Grounding Protection, Surge Protection,etc
    Environmental Characteristics
    Operating Temperature -30℃~+50℃
    Storage Temperature -40℃~+70℃
    Relative Humidity 5% ~ 95% RH (Without Condensation)
    Operating Altitude < 2000m
    Communication Protocols
    Communication Interface CAN / Ethernet / Wi-Fi / 4G
    Charger ↔ Platform OCPP-1.6J
    Charger ↔ Vehicle IEC62196-3
    Certifications & Standards
    Certification CE
    Safety Standards IEC61851-1; IEC62196-1/-3; ISO15118
    Standard Warranty 2 Years
    bg-loobook

    Power for Home

    Reliable AC charging solution delivering efficient, safe, and cost-effective power for residential and commercial EV applications.
    bg-loobook

    Power for Commercial

    High-power DC fast charging solution offering rapid, stable, and intelligent energy delivery for commercial and public EV charging scenarios.
    MEG 120kW Integrated DC EV Charger

    High Efficiency

    Designed to deliver high efficiency. This ensures maximum energy conversion and optimal performance, helping you make the most of your renewable energy sources.

    Durable and Reliable

    Built to withstand harsh environments, offering robust protection against elements like dust, water, and physical impacts. This durability ensures long-lasting reliability, making them suitable for both indoor and outdoor use.

    User-Friendly Design

    Easy installation and intuitive operation.
    Designed with the user in mind, ensuring a hassle-free experience and efficient energy management.

    Service and Support

    • Consultation

      Consultation

    • Customization

      Customization

    • Installation

      Installation

    • Maintenance

      Maintenance

    Let’s Answer Your Questions

    Q1: Which vehicle models are compatible?

    Our chargers support multiple charging connector standards including NACS, CCS, and CHAdeMO, making them suitable for most mainstream vehicle models. For specific compatibility details, please consult your vehicle manual.

    Q2: What is an AC charger best used for?

    AC chargers work at 7–22kW and take 3–10 hours for a full charge. They're ideal for overnight depot charging and cost-effective to install and operate. Best for home, parking lots, and apartments where charging during off-hours fits your schedule.

    Q3: What electrical setup do I need for my AC charger?

    Just standard 230V/400V three-phase power. AC chargers need minimal electrical upgrades—no complex infrastructure required.

    Q4: When should I choose a DC fast charger?

    All-in-one DC chargers combine power conversion and charging port in a single unit. Choose this for space-limited sites needing fast 10–60 minute charging. Simple installation, compact footprint.

    Q5: What is a Smart Mobile charger with ESS?

    It's a multifunctional charger combining DC charger + battery storage. Charge vehicles independently, operate anywhere—remote sites, temporary locations, events. No permanent grid connection needed.
    Q6:What should I do if my charger malfunctions?
    Most issues can be resolved remotely through our customer service hotline. If on-site service is required, we will dispatch certified technicians to resolve the problem after confirming the after-sales service schedule.
    Q7: Can TDC chargers integrate with my fleet management system?
    Yes. All chargers connect to TDC Hub, which tracks sessions, costs, vehicle health, and charging schedules. We support integration with your existing fleet management software.
    Q8: What are the benefits of using the TDC ev charger?
    Comprehensive product line: AC, DC, EV Charger with Advertising Screen, Split-type DC, and Smart Mobile Charger with ESS—matching every need
    Smart software: TDC Charge and TDC Hub not only provide ev owners with a robust charging network and premium charging services, but also offer operators real-time monitoring, predictive maintenance, and system optimization.
    24/7 support: Remote diagnostics, 4-hour on-site response, 98%+ uptime guarantee
    Future-ready: Support for latest charging standards (CCS, MCS) and V2G technology
