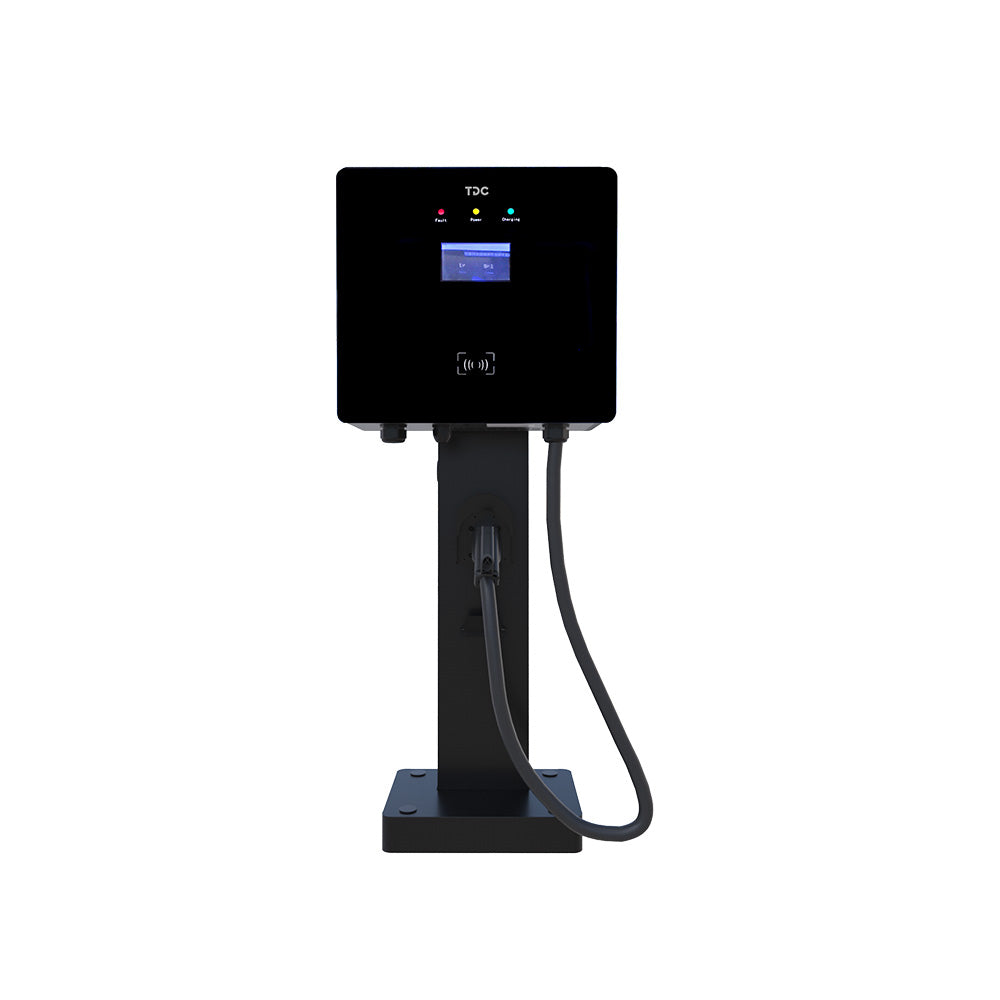

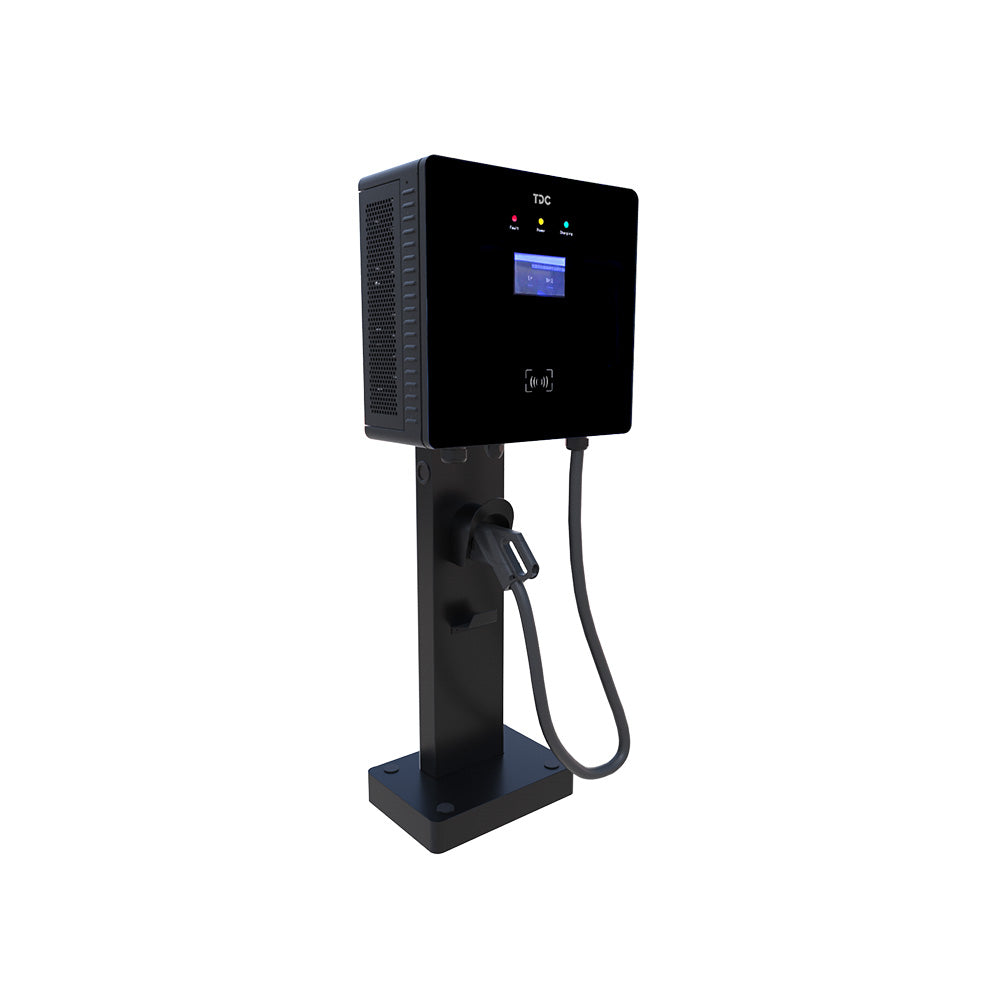

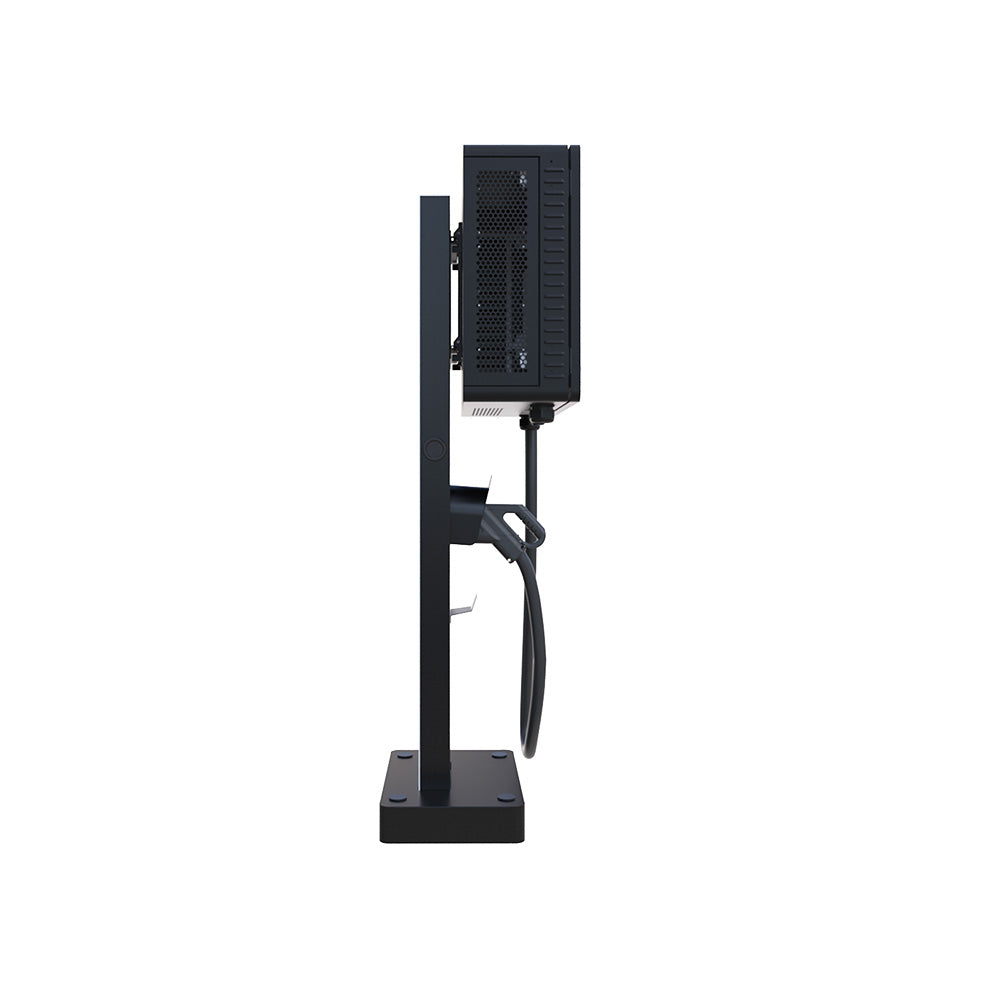

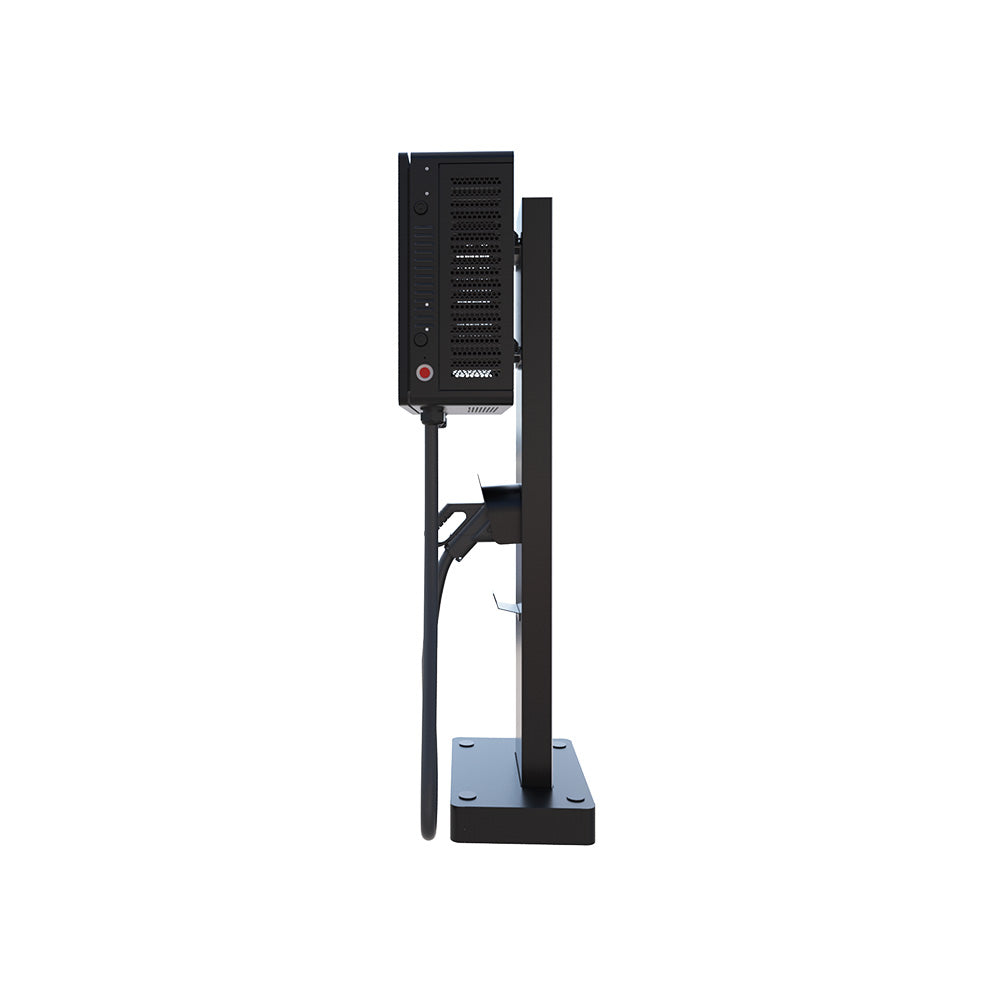

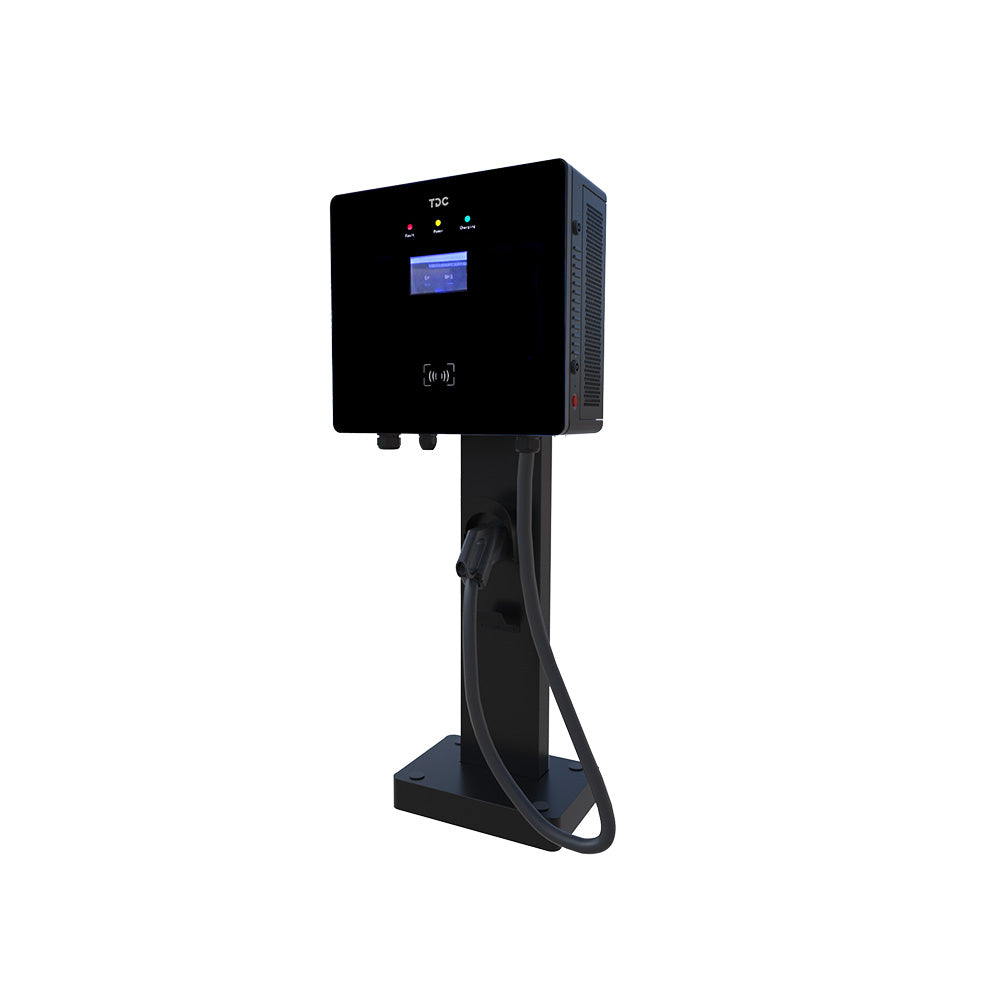

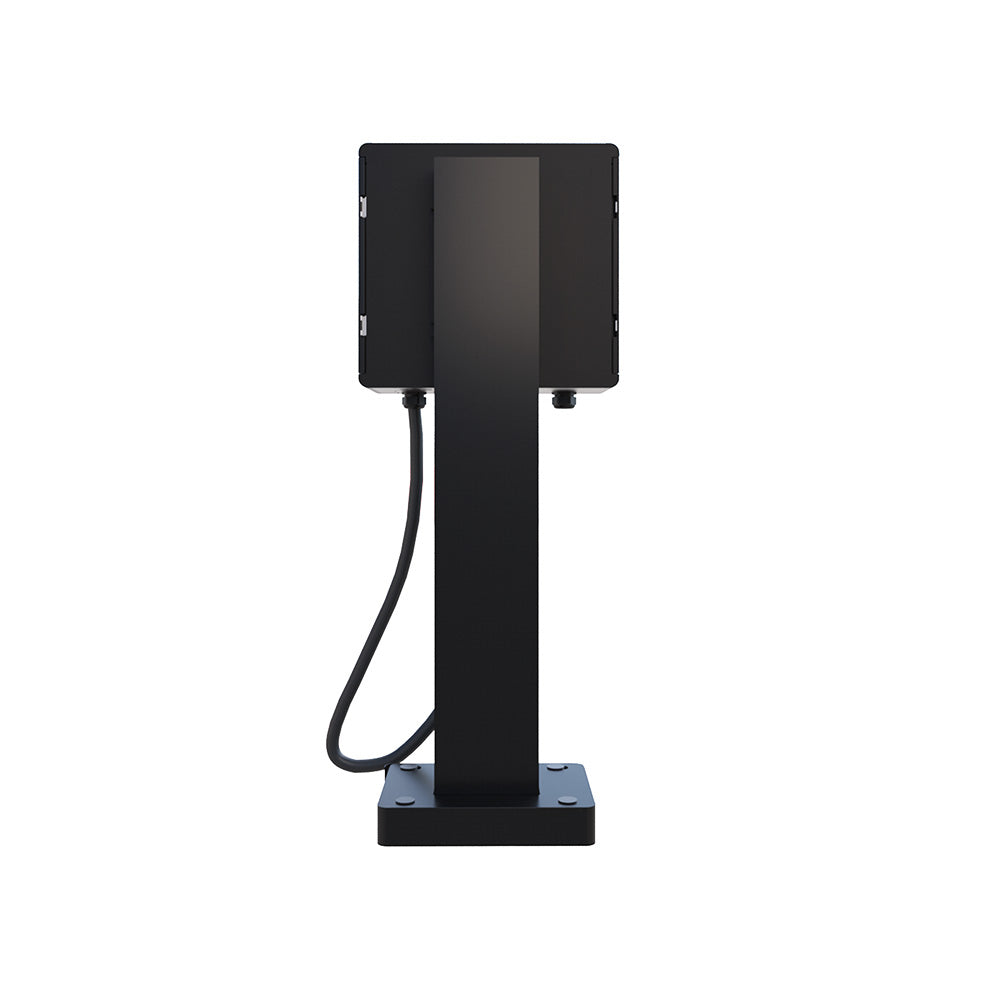

    HAM 30-40kW Integrated DC EV Charger

    $4,999.00

    Exclusive distribution in Mexico is officially authorized to our partner FABRICAS P4 S DE RL DE CV.

    Guaranteed safe checkout
    ecom-no-replace-aSLjKik1k3trust-dron

    • Fast-Delivery Guarantee

    • 1% Credit Reward

    • 14-Day Returns

    • Highly Recommended

    MEC 7-22kW AC EV ChargerMEC 7-22kW AC EV Charger

    MEC 7-22kW AC EV Charger

    $399.00
    Details
    FLY 7-22kW AC EV ChargerFLY 7-22kW AC EV Charger

    FLY 7-22kW AC EV Charger

    $299.00
    Details
    RAC 7-22kW AC EV ChargerRAC 7-22kW AC EV Charger

    RAC 7-22kW AC EV Charger

    $459.00
    Details
    Compact but Powerful
    Compact, space-saving, Up to 40 kW output and cutting-edge charging tech,HAM efficiency caters to high-demand charging needs, ideal for public and commercial locations.
    High Precision Energy Meter
    Featuring class B level high accuracy energy meter, HAM minimizes power loss and ensures efficient energy transfer, standing out for its technical reliability.
    User-friendly Design
    Not only is it equipped with a 7-inch display, but its smooth design, intuitive interface, and real-time charging information make it easy and enjoyable to use for both veteran and novice EV drivers.

    Descriptions

    Specifications

    Stronger Than It Appears

    HAM is a compact solution that saves space while optimizing site usage.

    This compact design delivers up to 40 kW of powerful DC output to the tram, making it ideal for public and commercial locations.

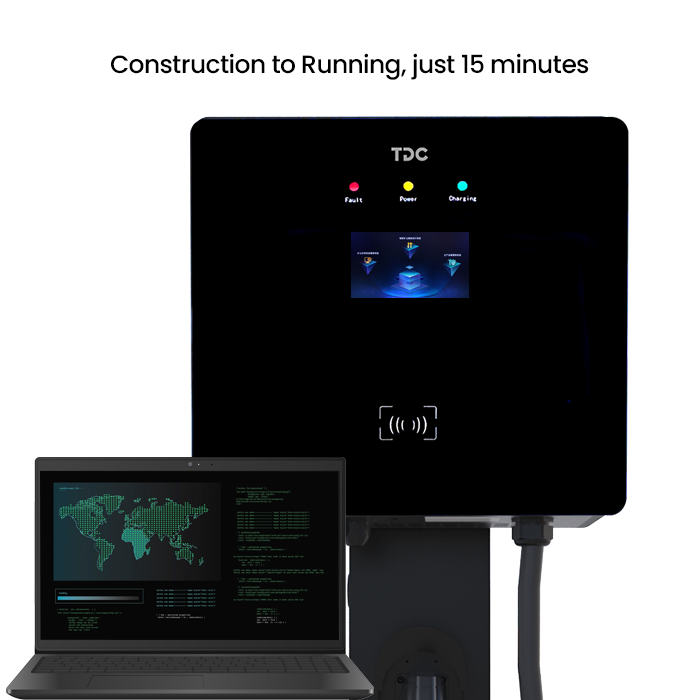

    Intelligent Design, Ultra-Fast Setup


    Use the TDC Operations Management Platform for quick setup, with the configuration wizard assisting in setting up connections, load management, power settings, and the OCPP backend.

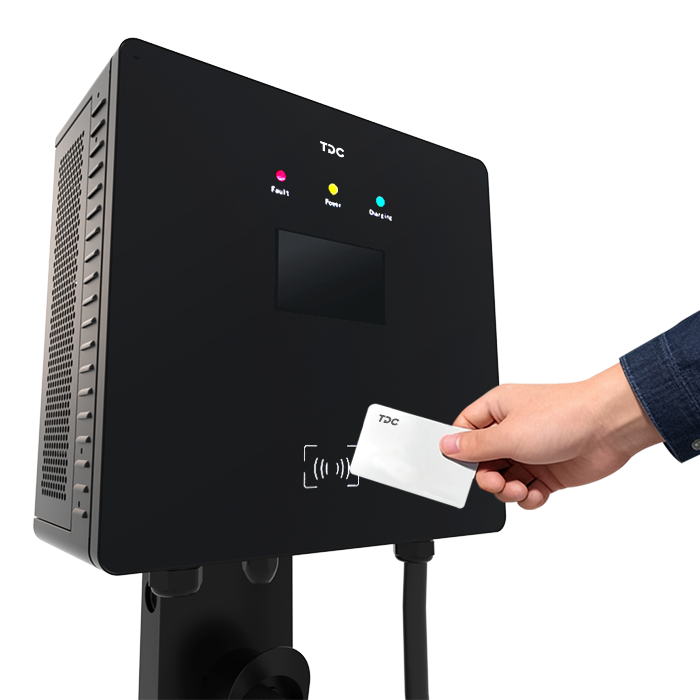

    Design With User In Mind


    Use smart modules to automatically identify participating vehicles, granting access through RFID technology. Meanwhile, LED breathing lights continuously display the charging status.

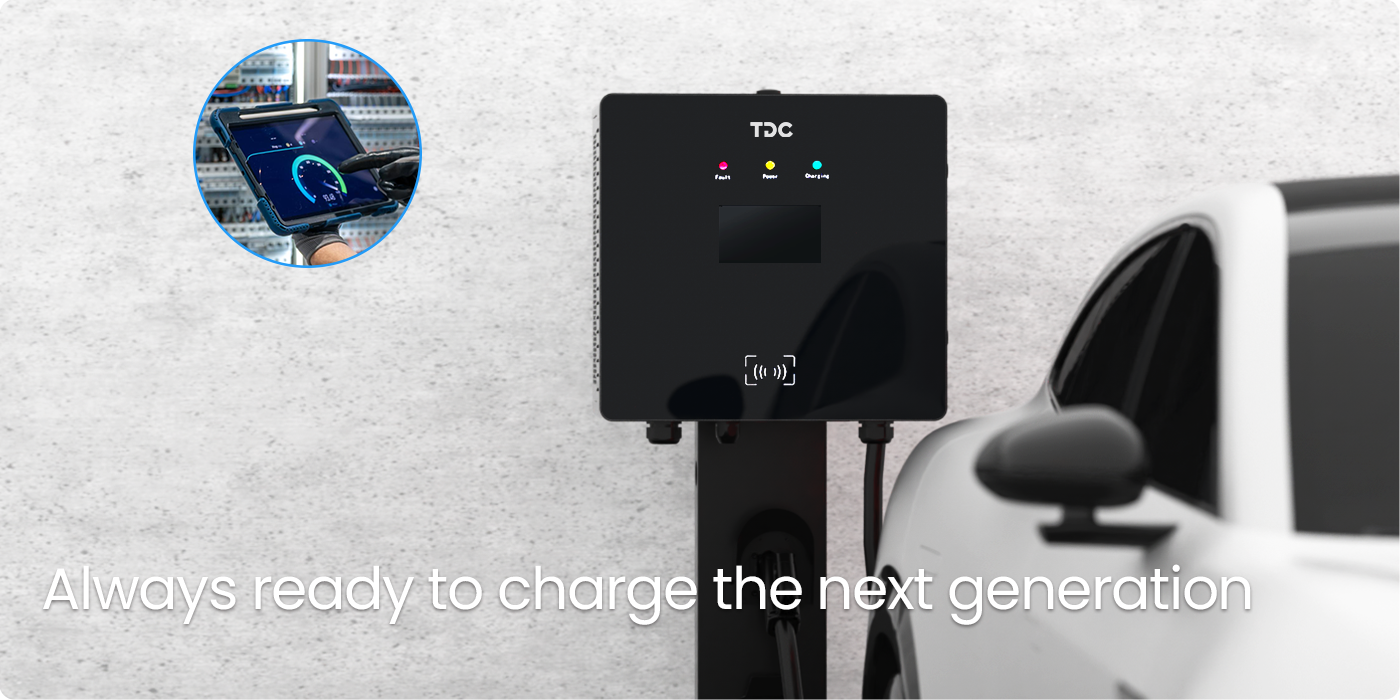

    Prepare for the future


    HAM employs a multi-modular design, utilizing professionally certified hardware and built-in high-precision meters to prepare for current and future opportunities.

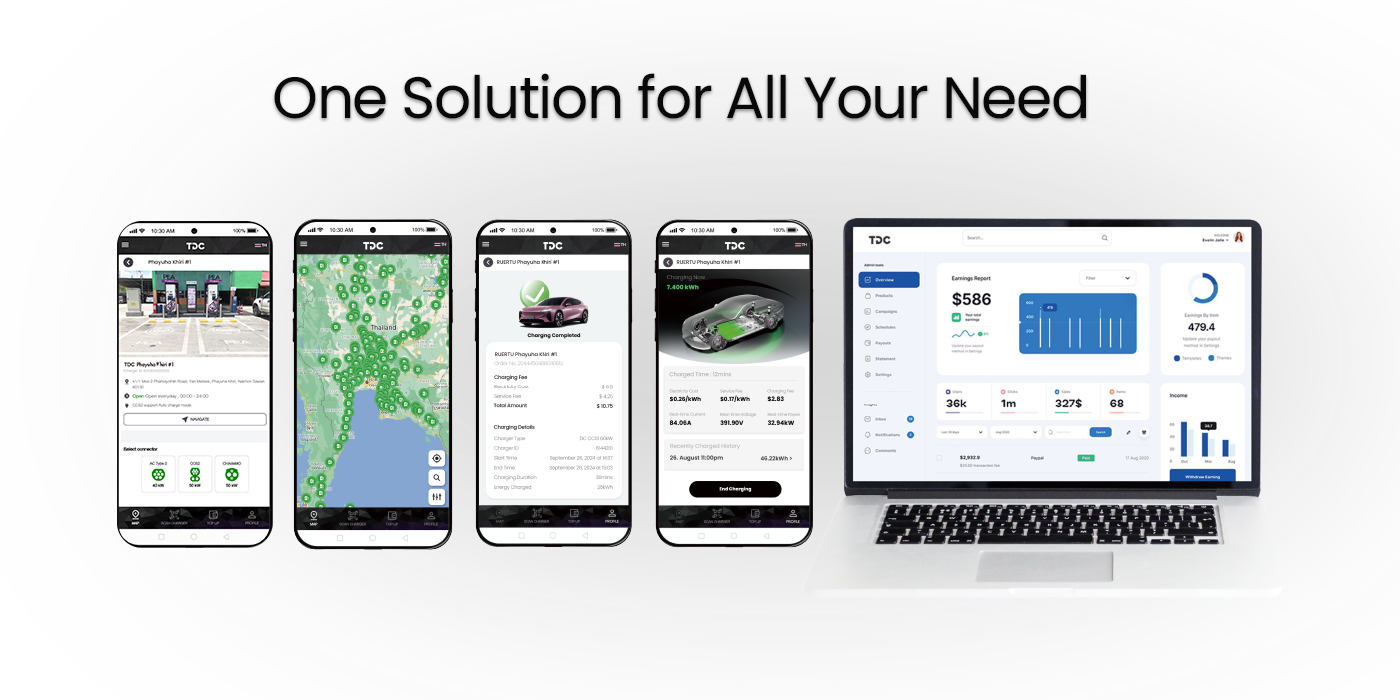

    TDC All-in-One Solution


    TDC provides a comprehensive charging station operations solution, offering a seamless and efficient experience for operators and end-users.

    Our services include bespoke hardware, cutting-edge software, after-sales service, technical maintenance and end-to-end solutions, etc.

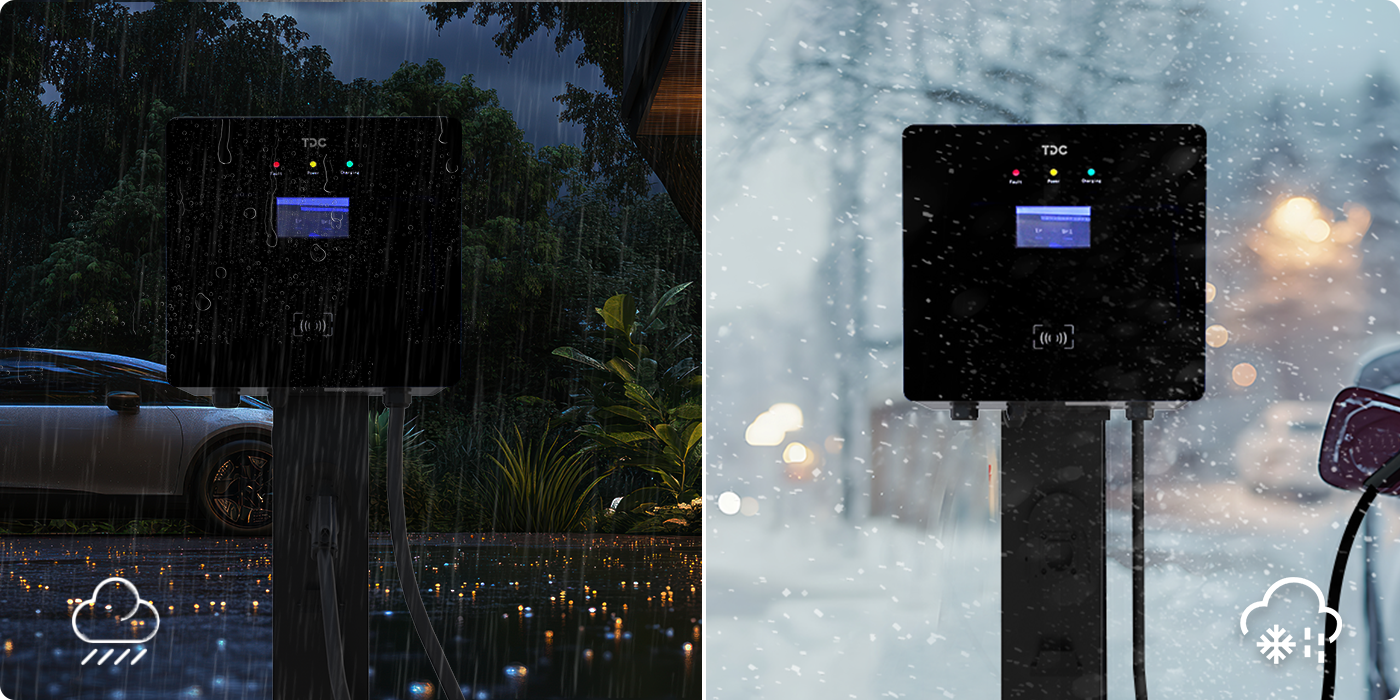

    Long Term Worry-free


    The HAM series is built for tough, daily use, boasting an IP54 rating and robust protection against dust and water splashes, ensuring high reliability in diverse environments.

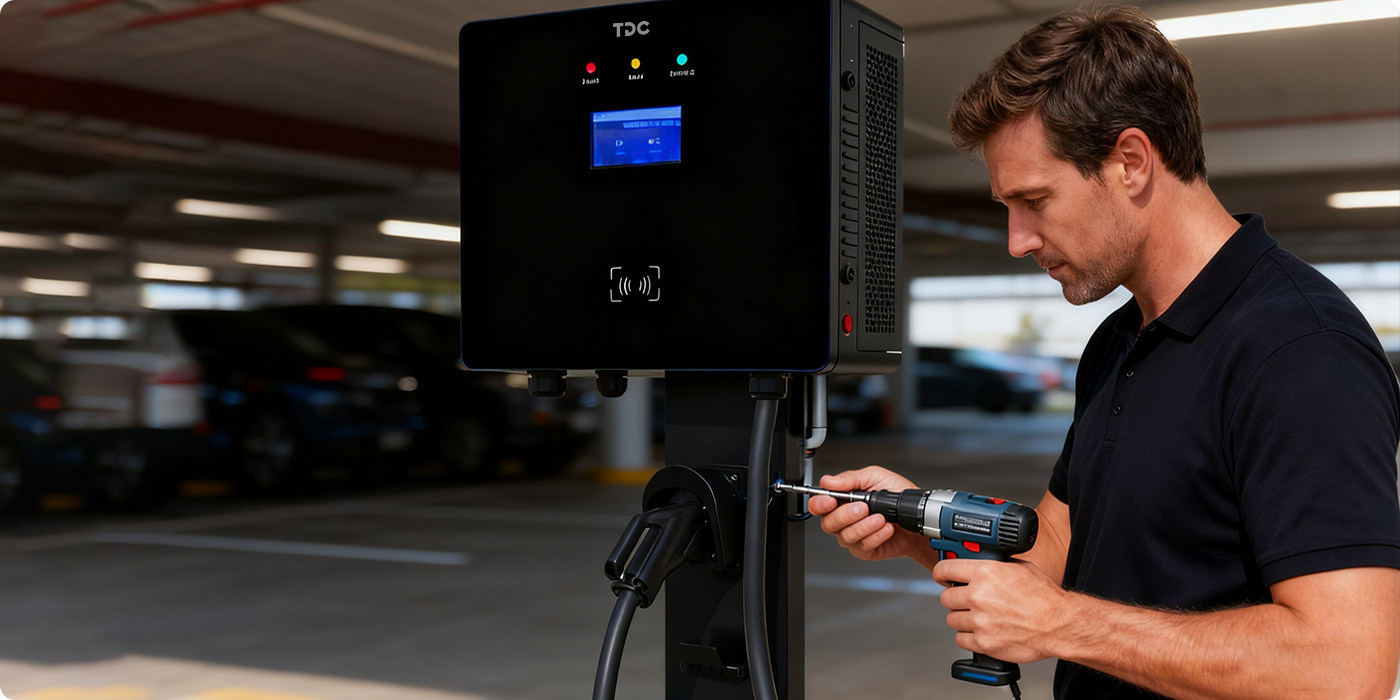

    Quick Installation in Any Scenario


    Mechanical installation takes less than 30 minutes. Space-optimized design facilitates internal maintenance. Multiple power cable access points accommodate any usage scenario.

    Model HAM30 HAM40
    Electrical Features
    Rated Power 30kW 40kW
    Input Voltage 400Vac ± 10%; 3P + N + PE ( EU) / 480Vac ± 10%; 3P + N + PE (US)
    Input Frequency 50 / 60Hz
    Output Voltage Range 200 ~ 1000Vdc
    Max. Output Current 100A 125A
    Power Factor ≥ 0.98
    Efficiency ≥ 95%
    Ripple Coefficient ≤ ±0.5%
    Voltage Regulation Accuracy ≤ ±0.5%
    Current Regulation Accuracy ≤ ±1%
    THDi < 5% (At load ≥ 50%)
    Mechanical & Structural Features
    EMC Class B (Residence)
    HMI 7-inch LCD Touch Display
    Indicator Light 3 Colors LED
    Cable Length 5m
    Alignment Lower in and Lower out
    Charging Method RFID Card / Scan QR Code to Charge
    Connector Type CCS2 / CCS1
    Installation Method Wall-mounted / Column Fixation
    Noise ≤ 65dB (Low-noise Modules ≤ 55dB are Available)
    Protection Features
    Protection Level EU: IP54 / US: Type 3R
    Protections Over Voltage Protection, Over Current Protection, Short Circuit Protection, Ground Fault Protection, Leakage Protection, Emergency Stop Protection, Over Temperature Protection
    Environmental Characteristics
    Operating Temperature -30℃~+50℃
    Storage Temperature -40℃~+70℃
    Relative Humidity 5% ~ 95% RH (Without Condensation)
    Operating Altitude < 2000m
    Communication Protocols
    Communication Interface Ethernet / Wi-Fi / 4G (Optional)
    Charger ↔ Platform OCPP-1.6J
    Charger ↔ Vehicles DIN 70121; ISO 15118
    Certifications & Standards
    Certification CE / UL
    Safety Standards EU: EN61851-23; EN61851-24; EN/IEC 61851-1; EN/IEC 61851-21-2
    US: UL2231; UL2202
    Standard Warranty 2 Years
    Dimensions and Weight
    Product Dimensions 610 x 658 x 290 mm (1676.5 x 658 x 476.5 mm with Stand)
    Product Weight ≤ 82kg (118kg with Stand)
    bg-loobook

    Power for Home

    Reliable AC charging solution delivering efficient, safe, and cost-effective power for residential and commercial EV applications.
    bg-loobook

    Power for Commercial

    High-power DC fast charging solution offering rapid, stable, and intelligent energy delivery for commercial and public EV charging scenarios.
    HAM 30-40kW Integrated DC EV Charger

    High Efficiency

    Designed to deliver high efficiency. This ensures maximum energy conversion and optimal performance, helping you make the most of your renewable energy sources.

    Durable and Reliable

    Built to withstand harsh environments, offering robust protection against elements like dust, water, and physical impacts. This durability ensures long-lasting reliability, making them suitable for both indoor and outdoor use.

    User-Friendly Design

    Easy installation and intuitive operation.
    Designed with the user in mind, ensuring a hassle-free experience and efficient energy management.

    Service and Support

    • Consultation

      Consultation

    • Customization

      Customization

    • Installation

      Installation

    • Maintenance

      Maintenance

    Let’s Answer Your Questions

    Q1: Which vehicle models are compatible?

    Our chargers support multiple charging connector standards including NACS, CCS, and CHAdeMO, making them suitable for most mainstream vehicle models. For specific compatibility details, please consult your vehicle manual.

    Q2: What is an AC charger best used for?

    AC chargers work at 7–22kW and take 3–10 hours for a full charge. They're ideal for overnight depot charging and cost-effective to install and operate. Best for home, parking lots, and apartments where charging during off-hours fits your schedule.

    Q3: What electrical setup do I need for my AC charger?

    Just standard 230V/400V three-phase power. AC chargers need minimal electrical upgrades—no complex infrastructure required.

    Q4: When should I choose a DC fast charger?

    All-in-one DC chargers combine power conversion and charging port in a single unit. Choose this for space-limited sites needing fast 10–60 minute charging. Simple installation, compact footprint.

    Q5: What is a Smart Mobile charger with ESS?

    It's a multifunctional charger combining DC charger + battery storage. Charge vehicles independently, operate anywhere—remote sites, temporary locations, events. No permanent grid connection needed.
    Q6:What should I do if my charger malfunctions?
    Most issues can be resolved remotely through our customer service hotline. If on-site service is required, we will dispatch certified technicians to resolve the problem after confirming the after-sales service schedule.
    Q7: Can TDC chargers integrate with my fleet management system?
    Yes. All chargers connect to TDC Hub, which tracks sessions, costs, vehicle health, and charging schedules. We support integration with your existing fleet management software.
    Q8: What are the benefits of using the TDC ev charger?
    Comprehensive product line: AC, DC, EV Charger with Advertising Screen, Split-type DC, and Smart Mobile Charger with ESS—matching every need
    Smart software: TDC Charge and TDC Hub not only provide ev owners with a robust charging network and premium charging services, but also offer operators real-time monitoring, predictive maintenance, and system optimization.
    24/7 support: Remote diagnostics, 4-hour on-site response, 98%+ uptime guarantee
    Future-ready: Support for latest charging standards (CCS, MCS) and V2G technology
