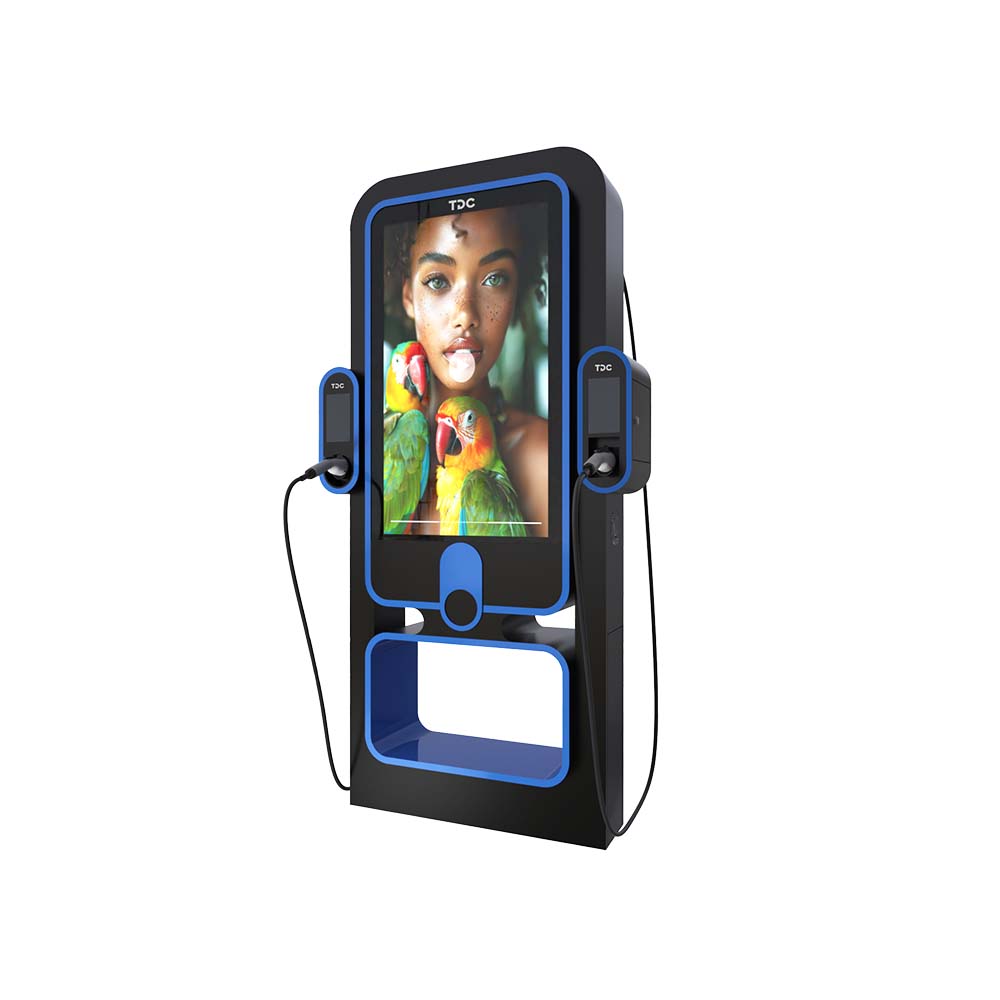

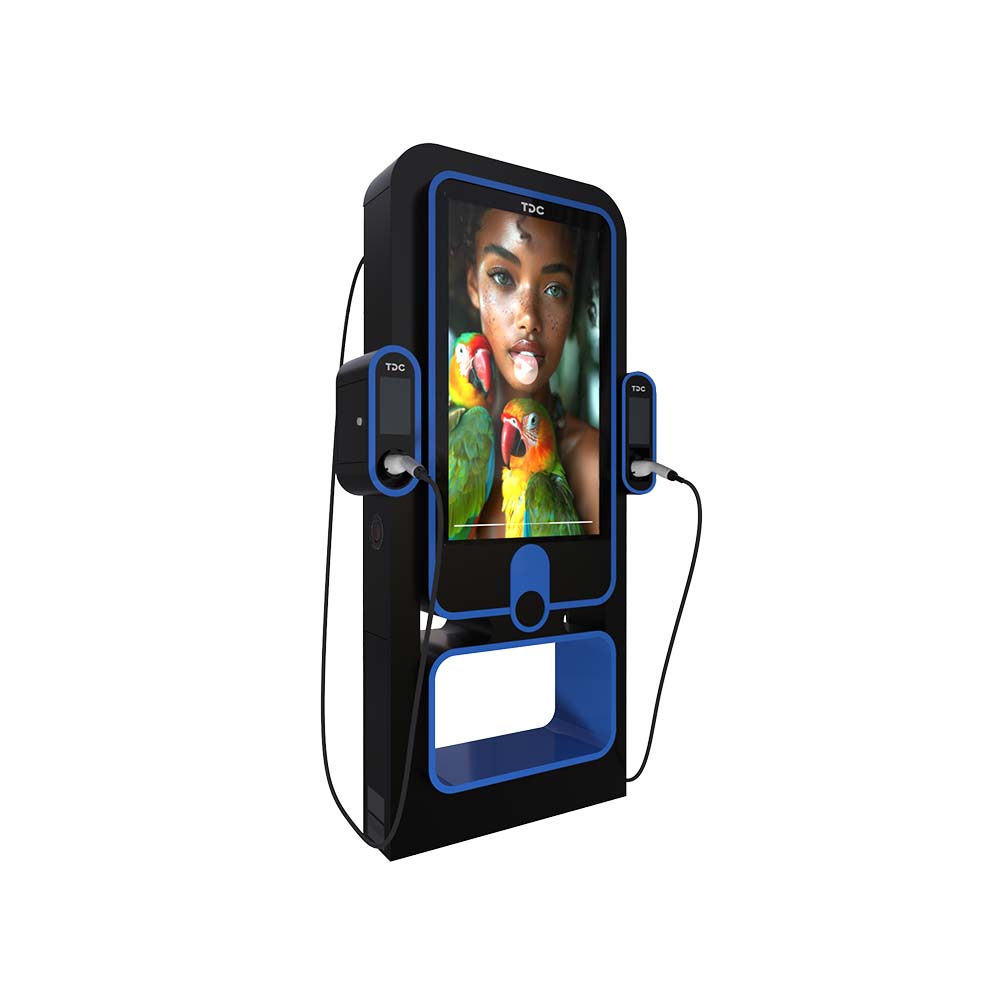

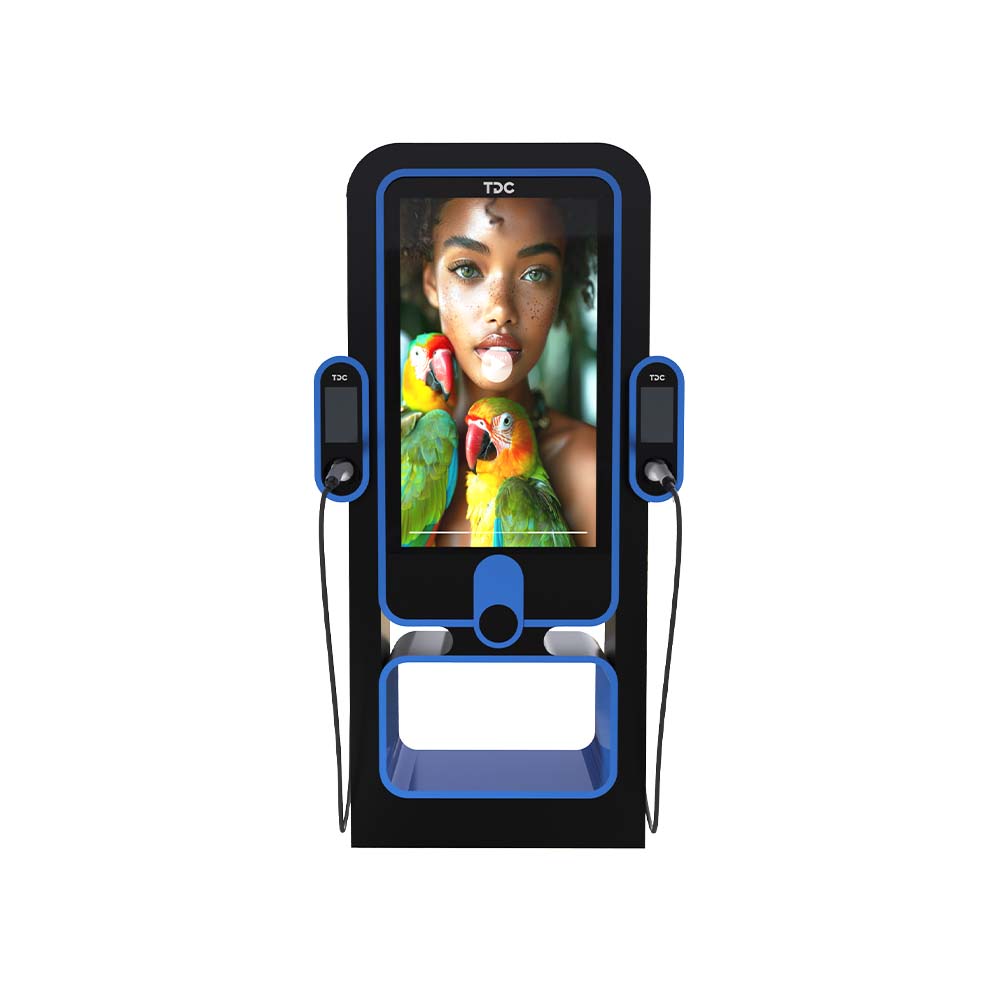

    GAM 22-44kW AC EV Charger with Advertising Screen

    $3,999.00

    GAM AC EV Charger integrates innovative charging technology with advertising opportunities. Its high screen ratio provides a premium advertising display, delivering exceptional visuals that engage users while charge. This charger is perfect for commercial spaces, offering a sustainable solution that combines efficiency with marketing opportunities.

    Guaranteed safe checkout
    ecom-no-replace-aSLjKik1k3trust-dron

    • Fast-Delivery Guarantee

    • 1% Credit Reward

    • 14-Day Returns

    • Highly Recommended

    MEC 7-22kW AC EV ChargerMEC 7-22kW AC EV Charger

    MEC 7-22kW AC EV Charger

    $399.00
    Details
    FLY 7-22kW AC EV ChargerFLY 7-22kW AC EV Charger

    FLY 7-22kW AC EV Charger

    $299.00
    Details
    RAC 7-22kW AC EV ChargerRAC 7-22kW AC EV Charger

    RAC 7-22kW AC EV Charger

    $459.00
    Details
    Crystal-clear Display
    High screen-to-body ratio ensures a superior viewing experience, ideal for impactful branding.
    Eco-Friendly Operation
    Supports sustainable energy goals with efficient power use and clean energy compatibility.
    Smart Management System
    Allows operators to optimize operations by track charging sessions, control advertisement content remotely.

    Descriptions

    Specifications

    Dual Revenue Model: Advertising Revenue + Charging Services


    GAM boasts a distinctive and cutting-edge oversized advertising screen design, offering dual benefits to charging station operators.
    On one hand, it provides convenient charging services for customers, while on the other,
    it expands advertising channels and formats for advertising investors.

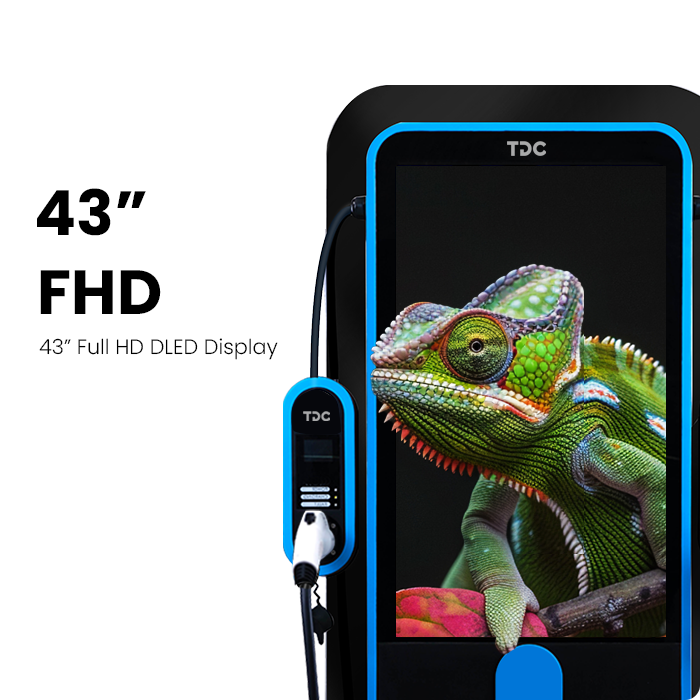

    43-inch Screen for a Superior Visual Experience


    The GAM charger features a 43-inch high-quality screen and 2K Full HD resolution, offering users an unparalleled advertising experience while charging and enabling advertisers to achieve optimal results.

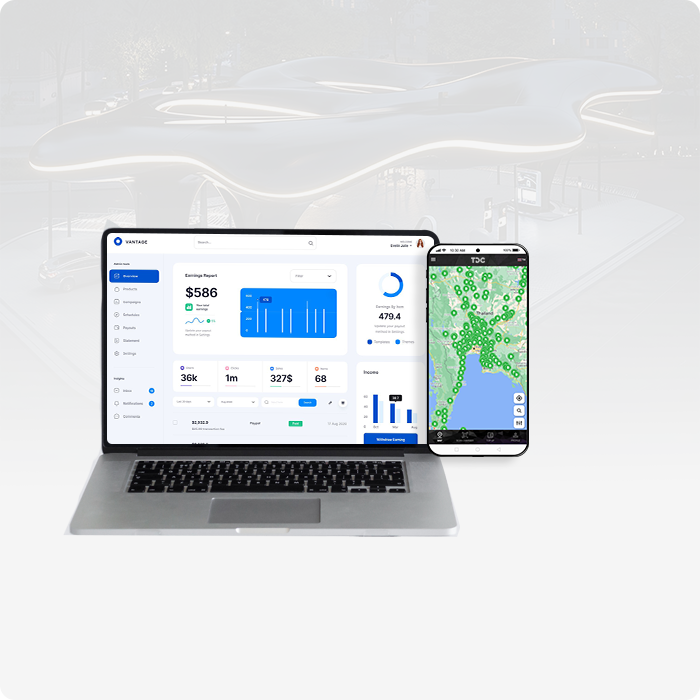

    Advanced Charging Station Operation Platform


    GAM robust software platform oversees all aspects of the charging station's operation. The platform enables real-time monitoring, reporting, energy management and load distribution, thereby ensuring optimal performance and energy efficiency.

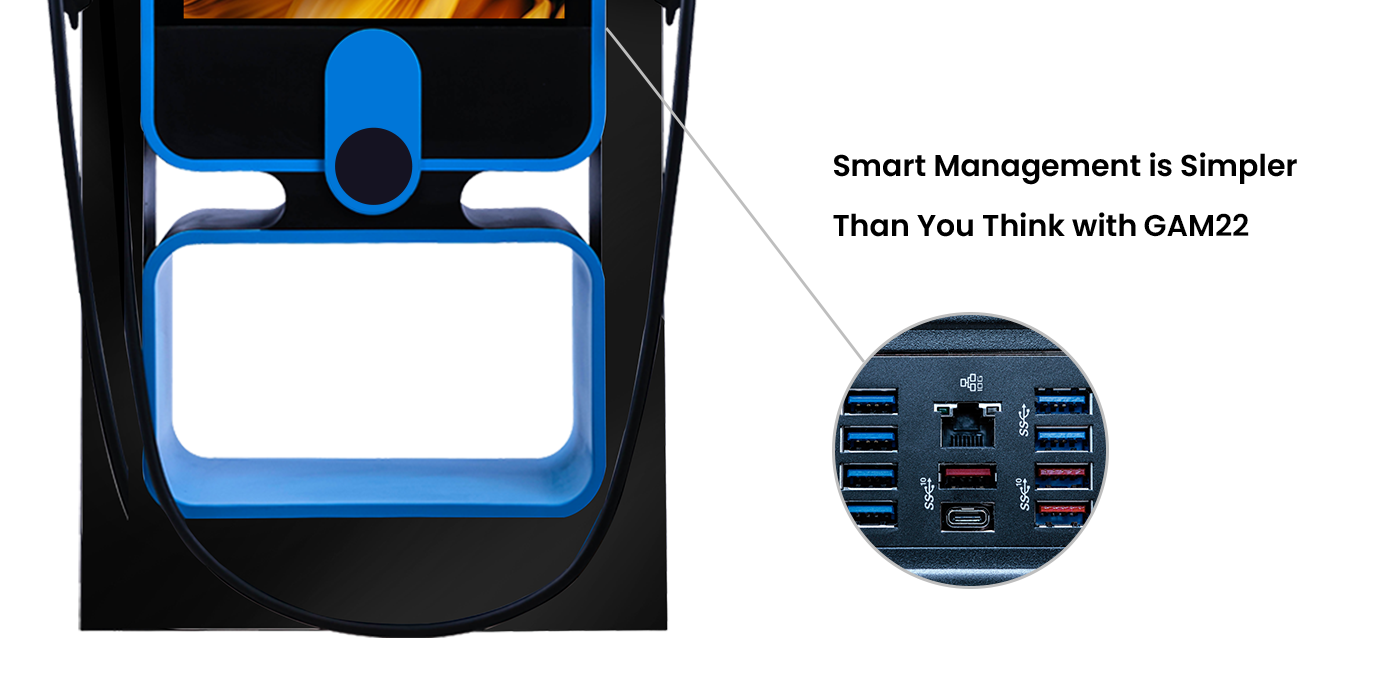

    Rich Smart Link Configuration


    The GAM is a smart EV charger with intelligent power regulation, emergency stop and remote monitoring functions,
    offering a comprehensive solution for electric vehicle charging. The charger is equipped with a standard CAN port as well as an Ethernet port,
    OCPP-1.6/2.0.1 protocols and can also be connected to the Internet via 4G.

    Optimized for Anytime


    The GAM is a cost-effective, energy-efficient charging solution.
    Its scalable hardware and intelligent charging allow users to save on grid upgrades and charge multiple electric vehicles simultaneously.
    The advert content can also be changed remotely, allowing the unit to operate more efficiently.

    Further Customisable Options


    Because of its modular design, the GAM offers a wide range of configuration options, including support for CCS1; CCS2; GB/T; NACS connectors,
    as well as a variety of options for appearance, screen material and more.

    Stable Performance Indoors and Outdoors


    The GAM offers high-level, reliable protection for use in a variety of challenging environments.
    It has multiple ultra-high safety protections and a type 3R protection degree,
    allowing the GAM Charger to maintain safe and efficient charging in most harsh environments, providing an excellent charging experience.
    Model GAM
    Electrical Features
    EU Standard
    Model Number GAM22 GAM44
    Rated Power 11kW x 2 22kW x 2
    Input Voltage 400Vac ± 10%; 3P + N + PE
    Input Frequency 50 ± 1Hz
    Max. Input Current 16A x 2 32A x 2
    Output Voltage 400Vac ± 10%; 3P + N + PE
    Max. Output Current 16A x 2 32A x 2
    US Standard
    Model Number GAM22
    Rated Power 11.5kW x 2
    Input Voltage 240Vac ± 10%; L + N + PE
    Input Frequency 60 ± 1Hz
    Max. Input Current 48A x 2
    Output Voltage 240Vac ± 10%; L + N + PE
    Max. Output Current 48A x 2
    Technical Features
    Power Factor ≥ 0.98
    Efficiency ≥ 95%
    Mechanical & Structural Features
    Indicator Light 3 Colors LED
    Cable Length 4.5m / 7.5m (Optional)
    Alignment Lower in and Lower out
    Charging Method Plug and Charge / Scan QR Code to Start / RFID Card
    Connector Type Type 2 (Mennekes) / SAE J1772
    Display Features
    Display Size 43-inch
    Display Area 940.896(H) x 529.254(V) mm
    Optimal Resolution 1920 x 1080
    Brightness 1500 cd / m²
    Refresh Rate 60 Hz
    Contrast Ratio 1200 : 1
    LED Type DLED
    Protection Features
    Protection Level EU: IP54 / US: Type 3R
    Protections Over Voltage Protection, Over Current Protection, Short Circuit Protection, Ground Fault Protection, Leakage Protection, Emergency Stop Protection, Over Temperature Protection
    Environmental Characteristics
    Operating Temperature -30℃ ~ +50℃
    Storage Temperature -45℃ ~ +85℃
    Relative Humidity 5% ~ 95% RH (Without Condensation)
    Operating Altitude < 2000m
    Communication Protocols
    Communication Interface Ethernet / Wi-Fi / Bluetooth / 4G (Optional)
    Charger ↔ Platform OCPP-1.6J
    Certifications & Standards
    Certification CE / ETL
    Safety Standards EU: IEC 61851-1; EN/IEC 61851-1; IEC 62955; IEC 61851-21-2
    US: UL2594; UL1998
    Standard Warranty 2 Years
    Dimensions and Weight
    Product Dimensions 990 x 303 x 2000 mm
    Packaging Dimensions 1130 x 430 x 2080 mm
    Net Weight 139 kg
    Gross Weight 162 kg
    bg-loobook

    Power for Home

    Reliable AC charging solution delivering efficient, safe, and cost-effective power for residential and commercial EV applications.
    bg-loobook

    Power for Commercial

    High-power DC fast charging solution offering rapid, stable, and intelligent energy delivery for commercial and public EV charging scenarios.
    GAM 22-44kW AC EV Charger with Advertising Screen

    High Efficiency

    Designed to deliver high efficiency. This ensures maximum energy conversion and optimal performance, helping you make the most of your renewable energy sources.

    Durable and Reliable

    Built to withstand harsh environments, offering robust protection against elements like dust, water, and physical impacts. This durability ensures long-lasting reliability, making them suitable for both indoor and outdoor use.

    User-Friendly Design

    Easy installation and intuitive operation.
    Designed with the user in mind, ensuring a hassle-free experience and efficient energy management.

    Service and Support

    • Consultation

      Consultation

    • Customization

      Customization

    • Installation

      Installation

    • Maintenance

      Maintenance

    Let’s Answer Your Questions

    Q1: Which vehicle models are compatible?

    Our chargers support multiple charging connector standards including NACS, CCS, and CHAdeMO, making them suitable for most mainstream vehicle models. For specific compatibility details, please consult your vehicle manual.

    Q2: What is an AC charger best used for?

    AC chargers work at 7–22kW and take 3–10 hours for a full charge. They're ideal for overnight depot charging and cost-effective to install and operate. Best for home, parking lots, and apartments where charging during off-hours fits your schedule.

    Q3: What electrical setup do I need for my AC charger?

    Just standard 230V/400V three-phase power. AC chargers need minimal electrical upgrades—no complex infrastructure required.

    Q4: When should I choose a DC fast charger?

    All-in-one DC chargers combine power conversion and charging port in a single unit. Choose this for space-limited sites needing fast 10–60 minute charging. Simple installation, compact footprint.

    Q5: What is a Smart Mobile charger with ESS?

    It's a multifunctional charger combining DC charger + battery storage. Charge vehicles independently, operate anywhere—remote sites, temporary locations, events. No permanent grid connection needed.
    Q6:What should I do if my charger malfunctions?
    Most issues can be resolved remotely through our customer service hotline. If on-site service is required, we will dispatch certified technicians to resolve the problem after confirming the after-sales service schedule.
    Q7: Can TDC chargers integrate with my fleet management system?
    Yes. All chargers connect to TDC Hub, which tracks sessions, costs, vehicle health, and charging schedules. We support integration with your existing fleet management software.
    Q8: What are the benefits of using the TDC ev charger?
    Comprehensive product line: AC, DC, EV Charger with Advertising Screen, Split-type DC, and Smart Mobile Charger with ESS—matching every need
    Smart software: TDC Charge and TDC Hub not only provide ev owners with a robust charging network and premium charging services, but also offer operators real-time monitoring, predictive maintenance, and system optimization.
    24/7 support: Remote diagnostics, 4-hour on-site response, 98%+ uptime guarantee
    Future-ready: Support for latest charging standards (CCS, MCS) and V2G technology
