    Unique Exterior Design
    MECHA's overall polygonal shape is outlined with lines, and the bottom surface is flat and sharp without excessive curvature, filled with plenty of sharp and obtuse angles, bringing a unique sci-fi and futuristic feel.
    IP65 Waterproof
    Designed to withstand various weather conditions and has an IP65 waterproof rating. This protection ensures that the products remain functional even in rain or dusty environments, providing consistent performance and durability during your outdoor adventures.
    App Intelligent Management
    The RUERTU APP monitors and manages the operation and charging information of the charging station, allowing both consumers and operators to easily keep track of the real-time status of the charging station.

    Descriptions

    Specifications

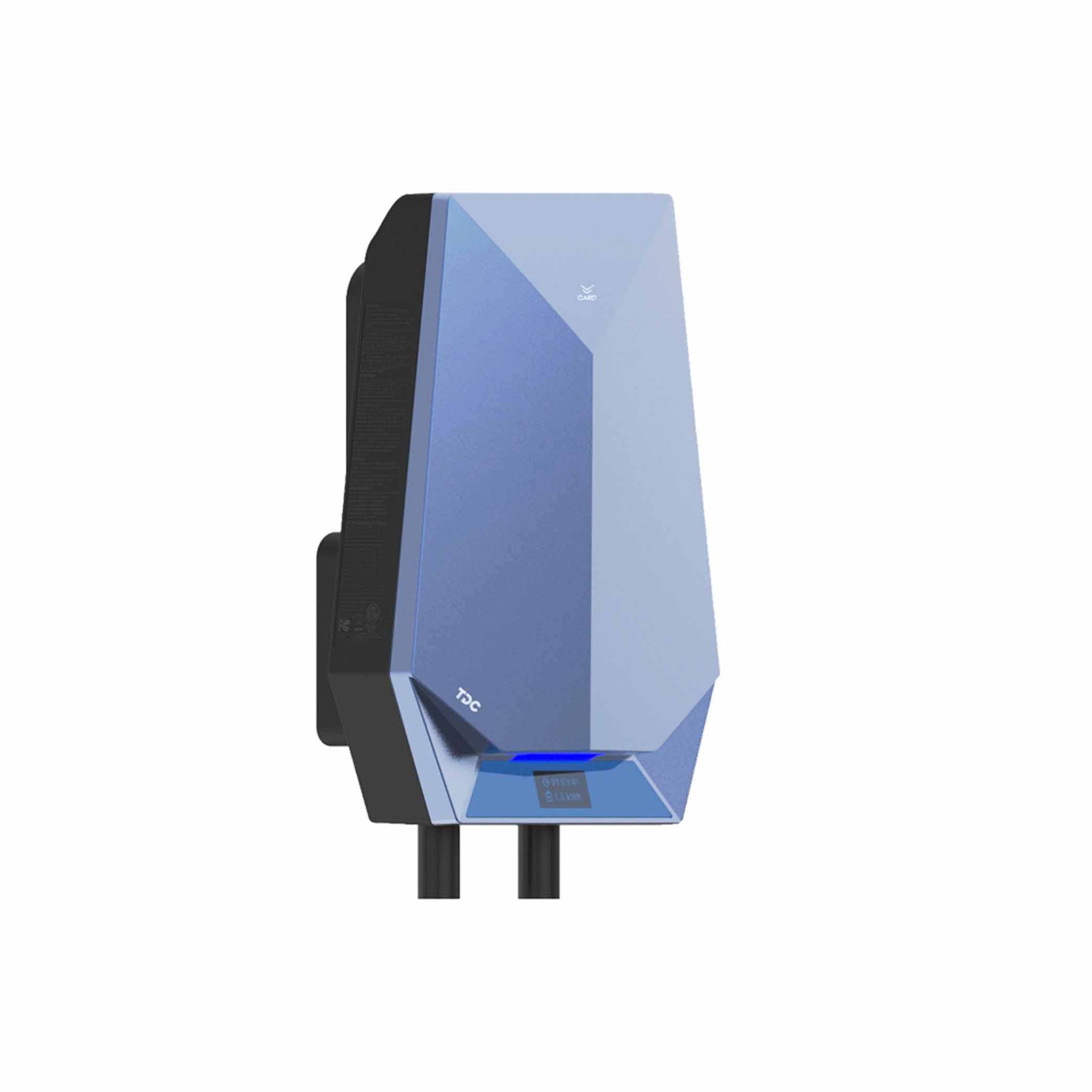

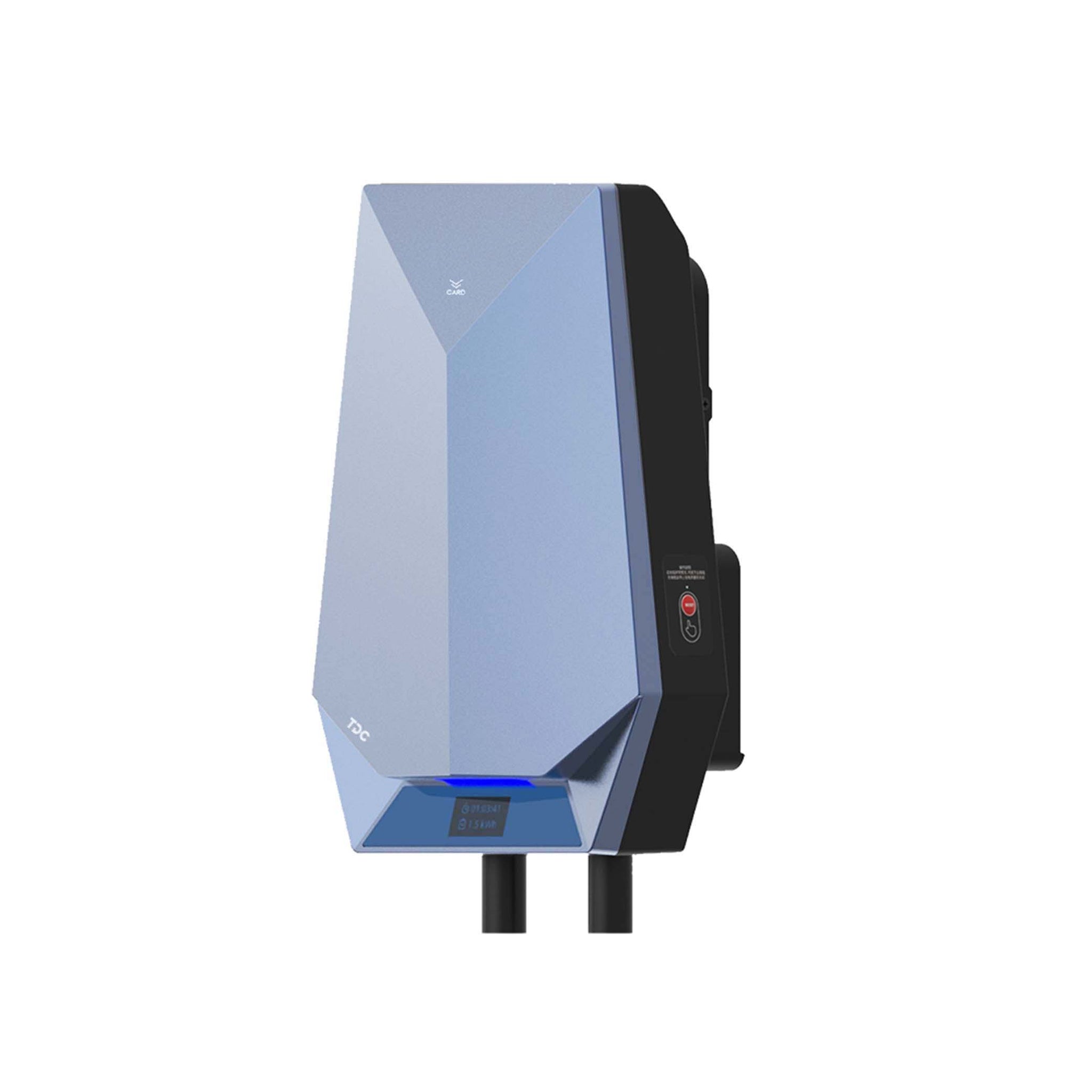

    Back to The Future Design

    MECHA is a product that combines both design and practicality, it's obvious straight lines converging in one place, showing a strong sense of geometry.

    The overall polygon is outlined with lines and the bottom surface is flat and sharp, without too much curvature,

    and full of a lot of acute angles and obtuse angles, which is the source of science fiction and futuristic sense.

    Effortless Charging with App

    MECHA has WIFI and Bluetooth connections, allowing you to control your charging sessions remotely.

    Through the APP, you can easily understand the usage of chargers and learn about available MECHA AC chargers nearby.

    The MECHA Charger ensures charging at home is quick and easy.

    360° Charging Protection in Every Minute

    MECHA carries IP65 enclosures offering reliable charging service against various harsh environmens.
    Passed IEC 61851-1, EN/IEC 61851-1 and other safety standards to ensure your safety.
    Performs between -30 and + 50°C/5% ~ 95% RH.
    7 different protection are available, providing peace of mind in any emergency.

    Intuitive Charging Mode with Indicator light

    4 colors and 6 indicator status allow you to intuitively understand the current status of the MECHA charger without any other operation,

    make every charging a simple enjoyment.

    Choose between 4-stage Adjustment

    MECHA comes in four different current range adjustment: 16A, 20A, 24A and 32A.

    You can adjust the current of stage as you like and make every charge process perfectly meet your schedule.

    Easy and Flexible for Home Installation

    Wall-mounted and Standing installation methods meet can fulfill the installation needs and location planning of various households.

    You can also choose installation consulting services and let professionals provide you with the optimal arrangement location of the MECHA charger.

    Model MEC
    Electrical Features
    EU Standard
    Model Number MEC7 MEC11 MEC22
    Rated Power 7kW 11kW 22kW
    Input Voltage 230Vac ± 10%; L + N + PE 400Vac ± 10%; 3P + N + PE
    Input Frequency 50 ± 1Hz
    Max. Input Current 32A 16A 32A
    Output Voltage 230Vac ± 10%; L + N + PE 400Vac ± 10%; 3P + N + PE
    Max. Output Current 32A 16A 32A
    US Standard
    Model Number MEC7 MEC9 MEC11
    Rated Power 7.4kW 9.6kW 11.5kW
    Input Voltage 240Vac ± 10%; L + N + PE
    Input Frequency 60 ± 1Hz
    Max. Input Current 32A 40A 48A
    Output Voltage 240Vac ± 10%; L + N + PE
    Max. Output Current 32A 40A 48A
    Technical Features
    Power Factor ≥ 0.98
    Efficiency ≥ 95%
    Mechanical & Structural Features
    HMI 1.9-inch Screen
    Indicator Light 3 Colors LED
    Cable Length 5m
    Alignment Lower in and Lower out
    Charging Method Plug and Charge / APP Activated Charging / RFID Card
    Connector Type Type 2 (Mennekes) / SAE J1772
    Installation Method Wall-mounted / Column Fixation
    MTBF 100,000H
    Aging The product should be aged at 50°C ± 5°C and under full load.
    Protection Features
    Protection Level EU: IP54 (Vehicle Connector Mated with Holder), IP65 (Vehicle Connector Mated with Cap)
    US: Type 3R
    Protections Over Voltage Protection, Over Current Protection, Short Circuit Protection, Ground Fault Protection, Leakage Protection, Emergency Stop Protection, Over Temperature Protection
    Environmental Characteristics
    Operating Temperature -30℃ ~ +50℃
    Storage Temperature -35℃ ~ +80℃
    Relative Humidity 5% ~ 95% RH (Without Condensation)
    Operating Altitude < 2000m
    Communication Protocols
    Communication Interface Wi-Fi / Bluetooth (Optional)
    Charger ↔ Platform OCPP-1.6J
    Certifications & Standards
    Certification CE / ETL
    Safety Standards EU: IEC 61851-1; EN/IEC 61851-1; IEC 62955; IEC 61851-21-2
    US: UL2594; UL991; UL2251; UL1998
    Standard Warranty 2 Years
    Dimensions and Weight
    Product Dimensions 368 x 256 x 123 mm
    Net Weight 3.16 kg
    Gross Weight 4.7 kg
    bg-loobook

    Power for Home

    Reliable AC charging solution delivering efficient, safe, and cost-effective power for residential and commercial EV applications.
    bg-loobook

    Power for Commercial

    High-power DC fast charging solution offering rapid, stable, and intelligent energy delivery for commercial and public EV charging scenarios.
    MEC 7-22kW AC EV Charger

    High Efficiency

    Designed to deliver high efficiency. This ensures maximum energy conversion and optimal performance, helping you make the most of your renewable energy sources.

    Durable and Reliable

    Built to withstand harsh environments, offering robust protection against elements like dust, water, and physical impacts. This durability ensures long-lasting reliability, making them suitable for both indoor and outdoor use.

    User-Friendly Design

    Easy installation and intuitive operation.
    Designed with the user in mind, ensuring a hassle-free experience and efficient energy management.

    Service and Support

    • Consultation

      Consultation

    • Customization

      Customization

    • Installation

      Installation

    • Maintenance

      Maintenance

    Let’s Answer Your Questions

    Q1: Which vehicle models are compatible?

    Our chargers support multiple charging connector standards including NACS, CCS, and CHAdeMO, making them suitable for most mainstream vehicle models. For specific compatibility details, please consult your vehicle manual.

    Q2: What is an AC charger best used for?

    AC chargers work at 7–22kW and take 3–10 hours for a full charge. They're ideal for overnight depot charging and cost-effective to install and operate. Best for home, parking lots, and apartments where charging during off-hours fits your schedule.

    Q3: What electrical setup do I need for my AC charger?

    Just standard 230V/400V three-phase power. AC chargers need minimal electrical upgrades—no complex infrastructure required.

    Q4: When should I choose a DC fast charger?

    All-in-one DC chargers combine power conversion and charging port in a single unit. Choose this for space-limited sites needing fast 10–60 minute charging. Simple installation, compact footprint.

    Q5: What is a Smart Mobile charger with ESS?

    It's a multifunctional charger combining DC charger + battery storage. Charge vehicles independently, operate anywhere—remote sites, temporary locations, events. No permanent grid connection needed.
    Q6:What should I do if my charger malfunctions?
    Most issues can be resolved remotely through our customer service hotline. If on-site service is required, we will dispatch certified technicians to resolve the problem after confirming the after-sales service schedule.
    Q7: Can TDC chargers integrate with my fleet management system?
    Yes. All chargers connect to TDC Hub, which tracks sessions, costs, vehicle health, and charging schedules. We support integration with your existing fleet management software.
    Q8: What are the benefits of using the TDC ev charger?
    Comprehensive product line: AC, DC, EV Charger with Advertising Screen, Split-type DC, and Smart Mobile Charger with ESS—matching every need
    Smart software: TDC Charge and TDC Hub not only provide ev owners with a robust charging network and premium charging services, but also offer operators real-time monitoring, predictive maintenance, and system optimization.
    24/7 support: Remote diagnostics, 4-hour on-site response, 98%+ uptime guarantee
    Future-ready: Support for latest charging standards (CCS, MCS) and V2G technology
